Exhaust Gas Recirculation Vacuum Regulator Valve Solenoid Replacement
WARNING: This page is about a different variant/trim than selected.

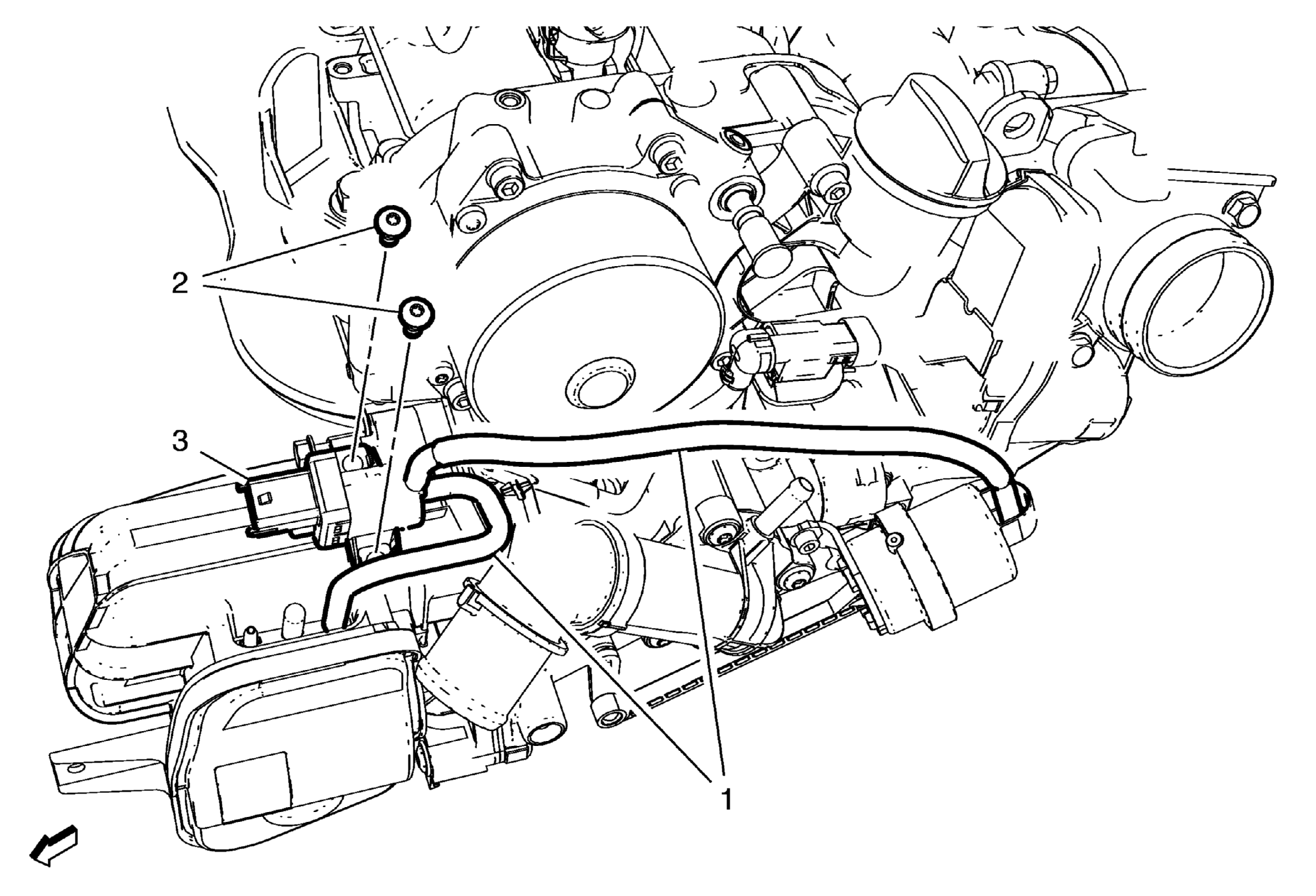

| Callout | Component Name |
|---|---|
| 1 | Vacuum Hose (Qty: 2) |
| 2 | Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 4.5 N.m (40 lb in) |
| 3 | Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve Procedure Disconnect the exhaust gas recirculation vacuum regulator solenoid valve electrical connector. |
