Installation Procedure

WARNING: This page is about a different variant/trim than selected.

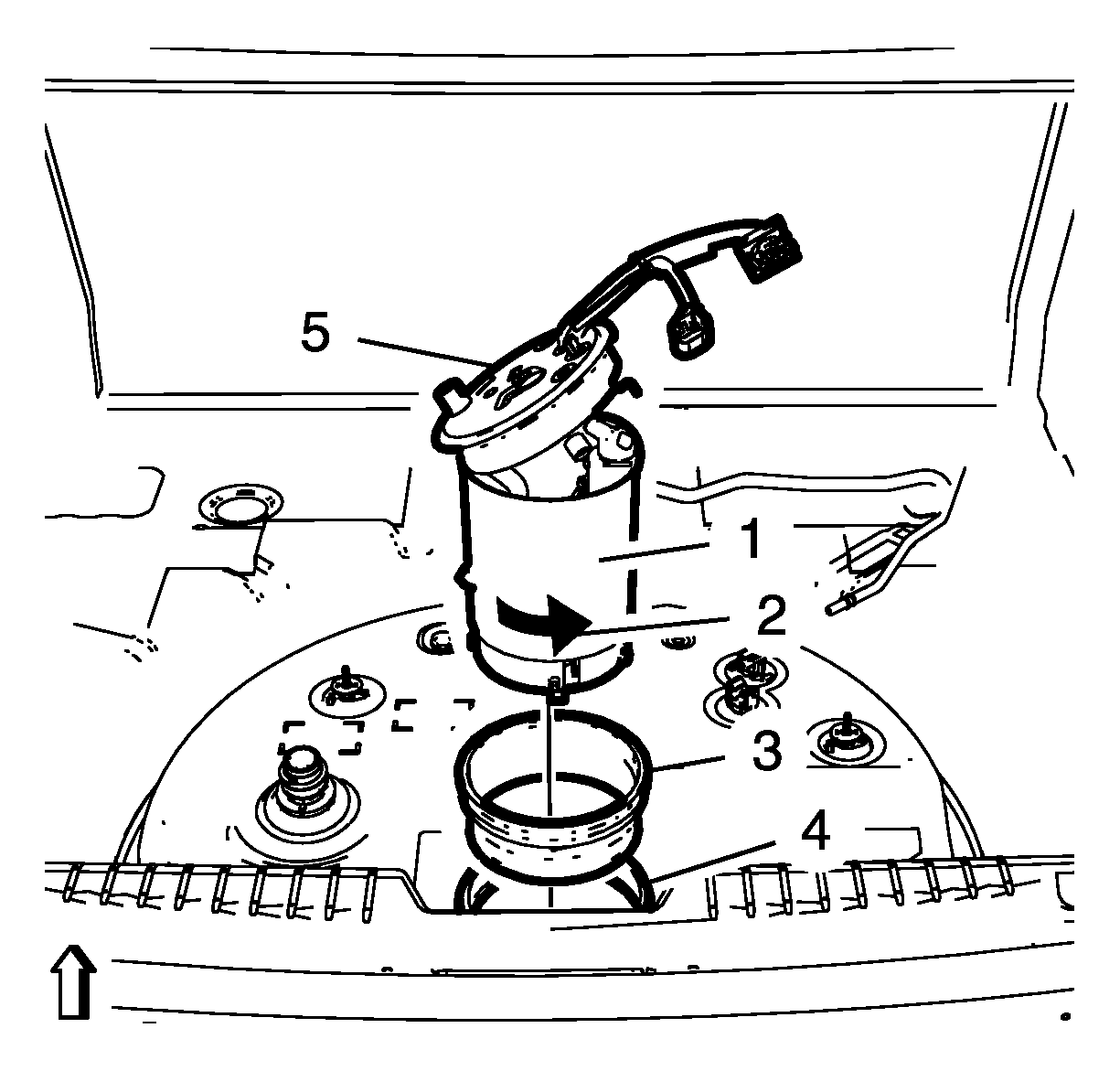

Position the emission reduction fluid tank reservoir (1, 5) into the emission reduction fluid tank thread (4).

Fig 1: Emission Reduction Fluid Tank Reservoir Part
Courtesy of GENERAL MOTORS COMPANY
Install the NEW emission reduction fluid tank pump module seal (2) into the emission reduction fluid tank thread (1).

Fig 2: Emission Reduction Fluid Tank Pump Module Seal And Emission Reduction Fluid Tank Thread
Courtesy of GENERAL MOTORS COMPANY

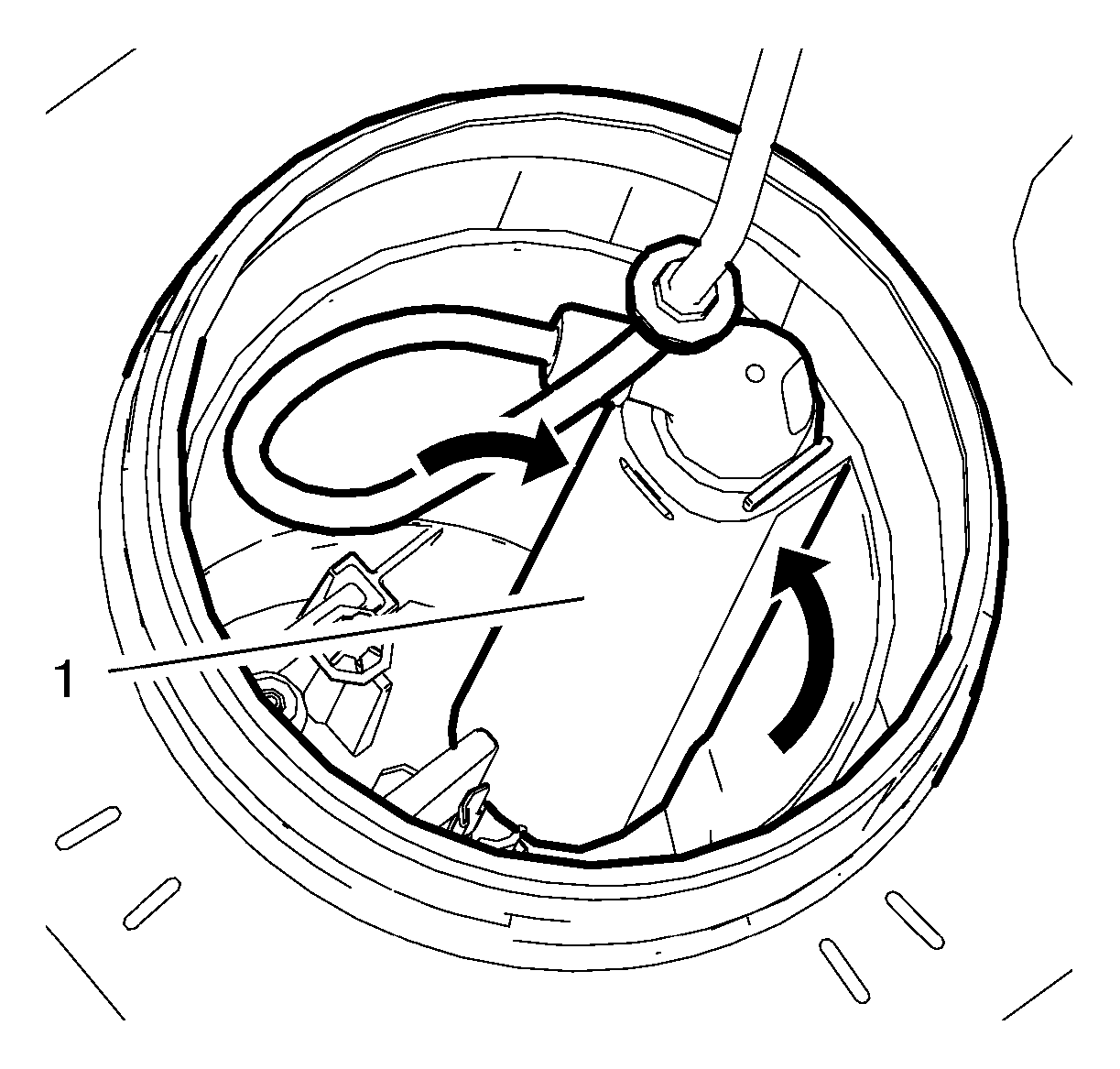

The arrow shows to the location at which the emission reduction fluid tank lower part should be rotated for install.

Fig 3: Emission Reduction Fluid Tank
Courtesy of GENERAL MOTORS COMPANY
Turn the emission reduction fluid tank reservoir lower part about 2 cm (0.787 in), in the arrow direction (3).

Fig 4: Emission Reduction Fluid Tank Reservoir Lower Part
Courtesy of GENERAL MOTORS COMPANY

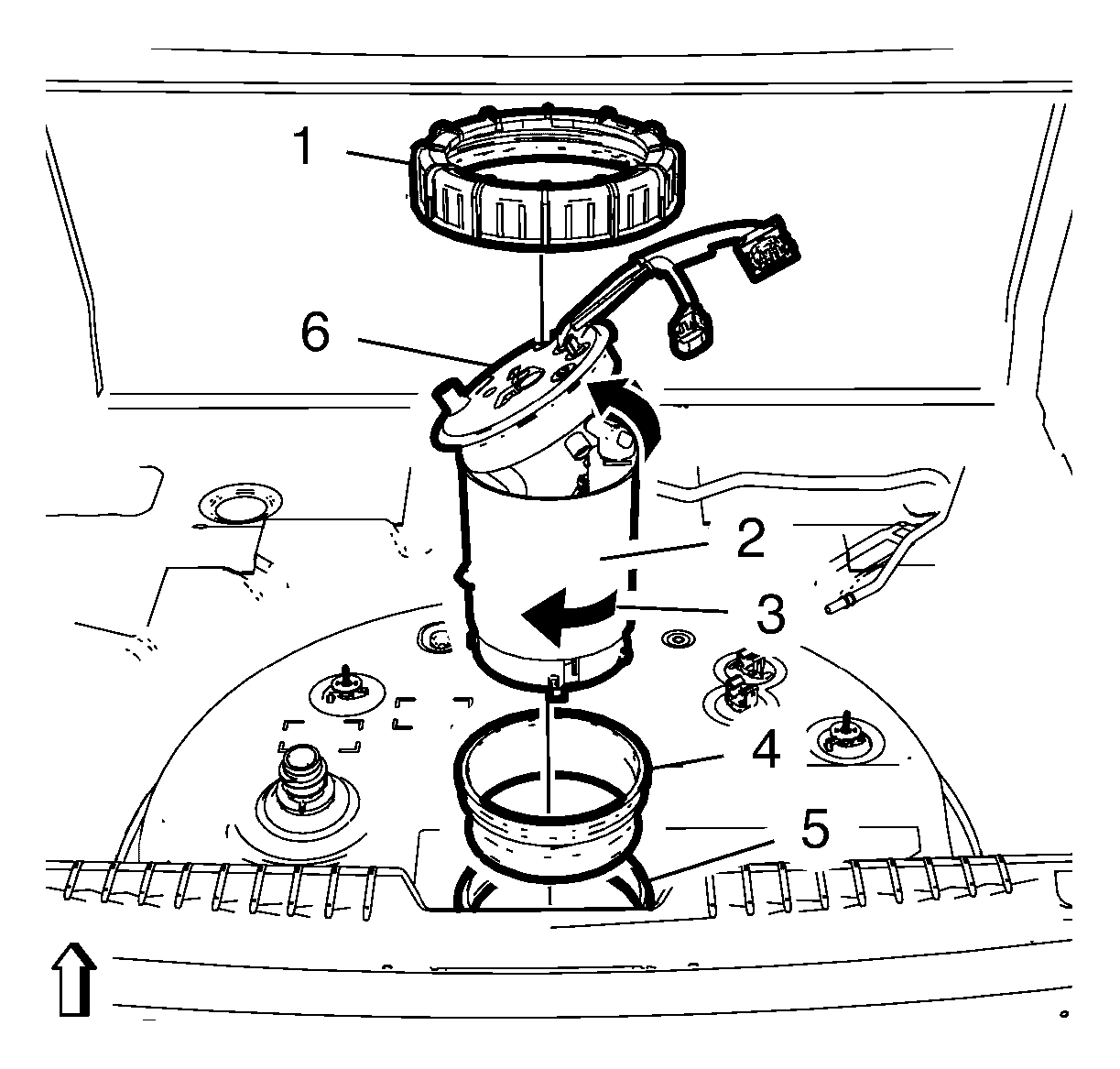

NOTE: The arrow (3) shows the installation direction for the emission reduction fluid tank reservoir lower part (2).
Install the emission reduction fluid tank reservoir upper part (6) into the emission reduction fluid tank pump module seal (4).
Install the emission reduction fluid tank pump module ring (1) to the emission reduction fluid tank thread (5).
Tighten the emission reduction fluid tank pump module ring (1) to 90 N.m (66 lb ft), using the CH-38879-B wrench.
CAUTION: Refer to Component Fastener Tightening Caution .
Install the emission reduction fluid supply pump module. Refer to Emission Reduction Fluid Supply Pump Module Replacement .
Install the emission reduction fluid tank insulator - upper. Refer to Emission Reduction Fluid Tank Insulator Replacement - Upper .
