Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the emission reduction fluid tank insulator - lower. Refer to Emission Reduction Fluid Tank Insulator Replacement - Lower .
    NOTE: If the emission reduction fluid tank insulator - lower is damage install a new lower insulator.
  2. Install the emission reduction fluid tank (2).

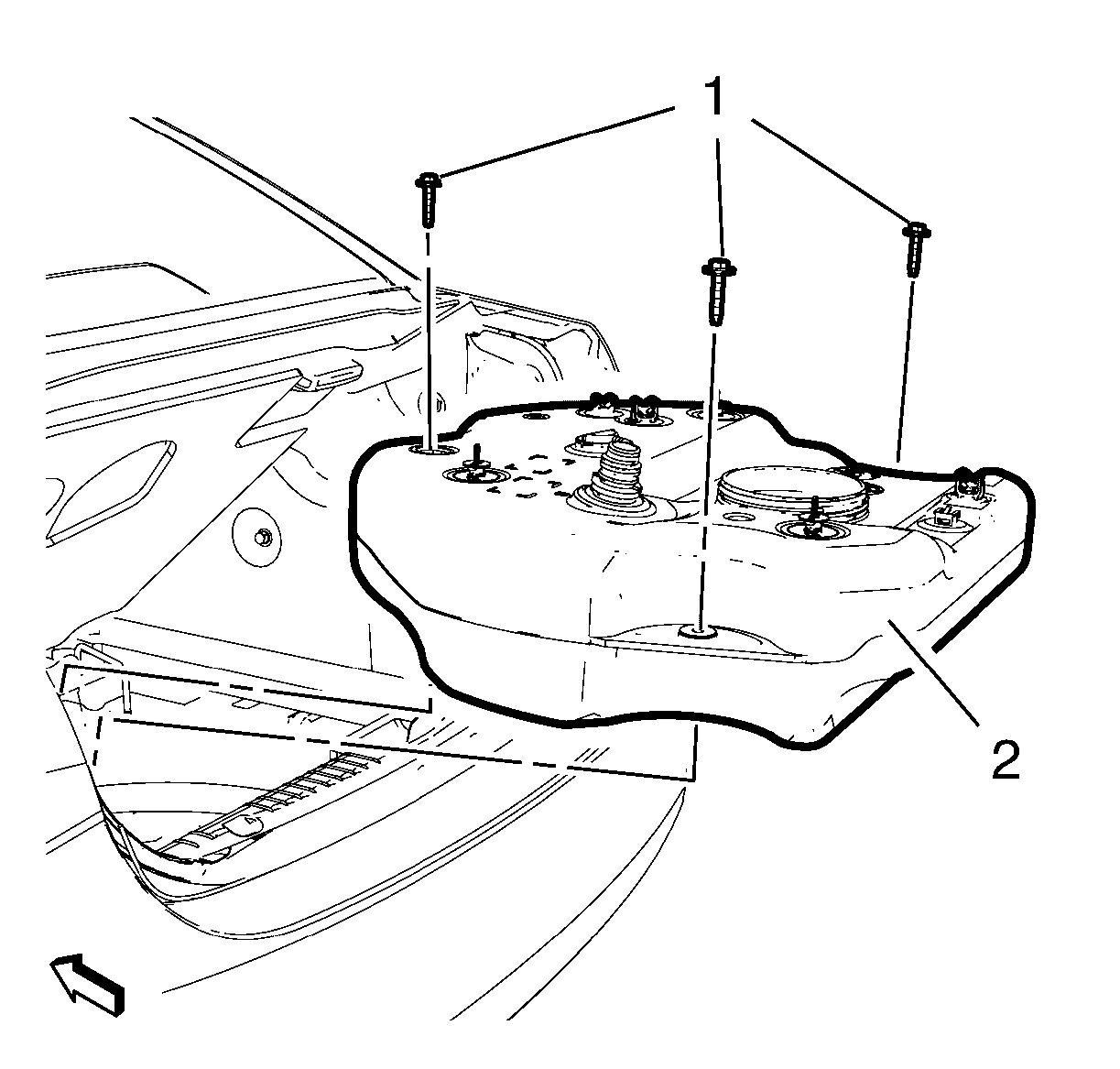

    Fig 1: Emission Reduction Fluid Tank Bolts
    GM3216260Courtesy of GENERAL MOTORS COMPANY
  3. Install the 3 emission reduction fluid tank bolts (1) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Install the level and temperature emission reduction fluid tank module (2) to the retainer (1).
    Fig 2: Temperature Emission Reduction Fluid Tank Module And Retainer
    GM3471681Courtesy of GENERAL MOTORS COMPANY
  5. Install the emission reduction fluid tank reservoir. Refer to Emission Reduction Fluid Tank Reservoir Replacement .
  6. Connect the emission reduction fluid tank vent elbow (1) to the emission reduction fluid tank reservoir (4).

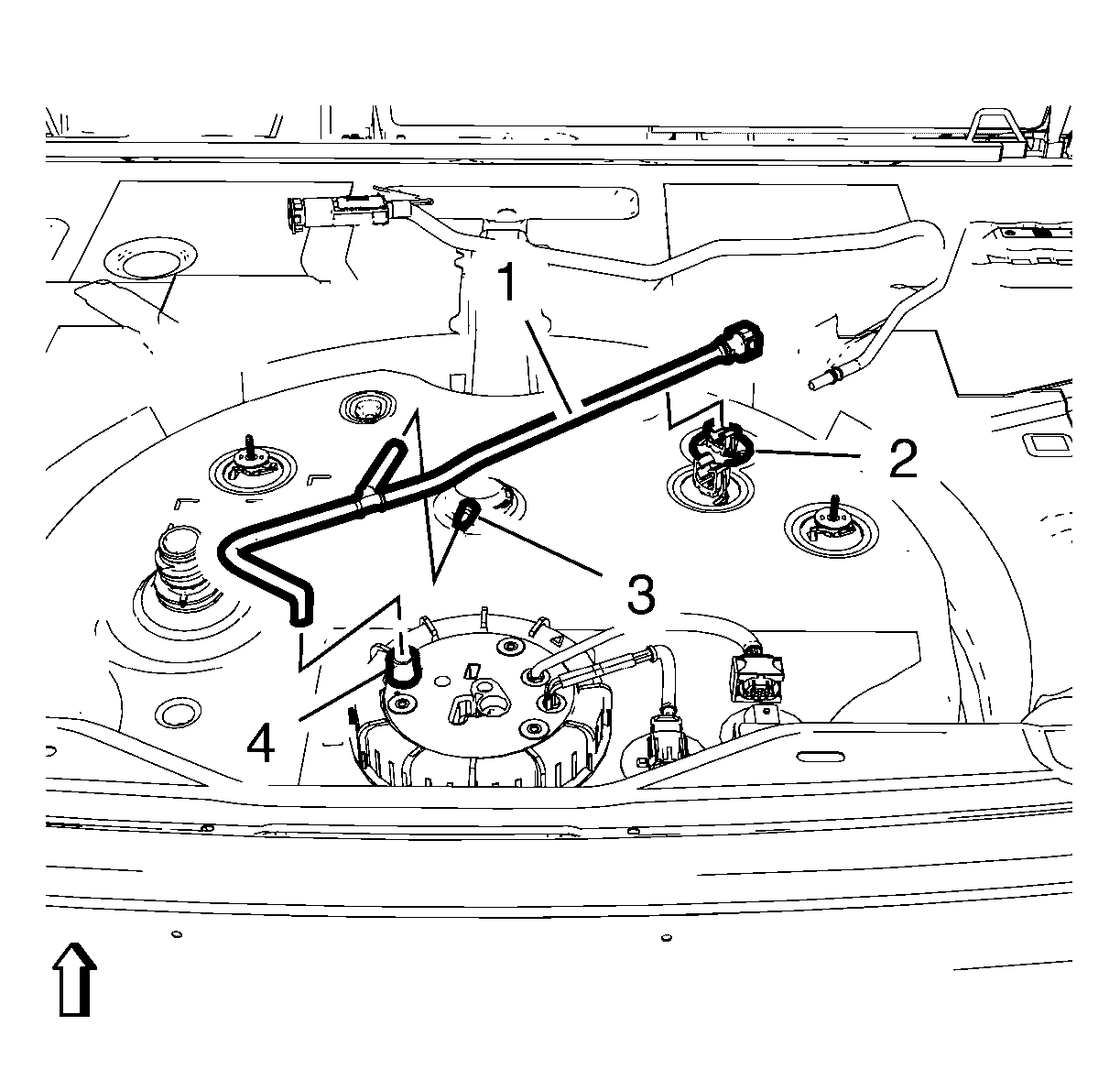

    Fig 3: Emission Reduction Fluid Tank Vent Elbow
    GM3216262Courtesy of GENERAL MOTORS COMPANY
  7. Connect the emission reduction fluid tank vent elbow (1) to the emission reduction fluid vent line.
  8. Connect the emission reduction fluid tank reservoir wiring harness plug (1) to the retainer (3) in the direction as shown.

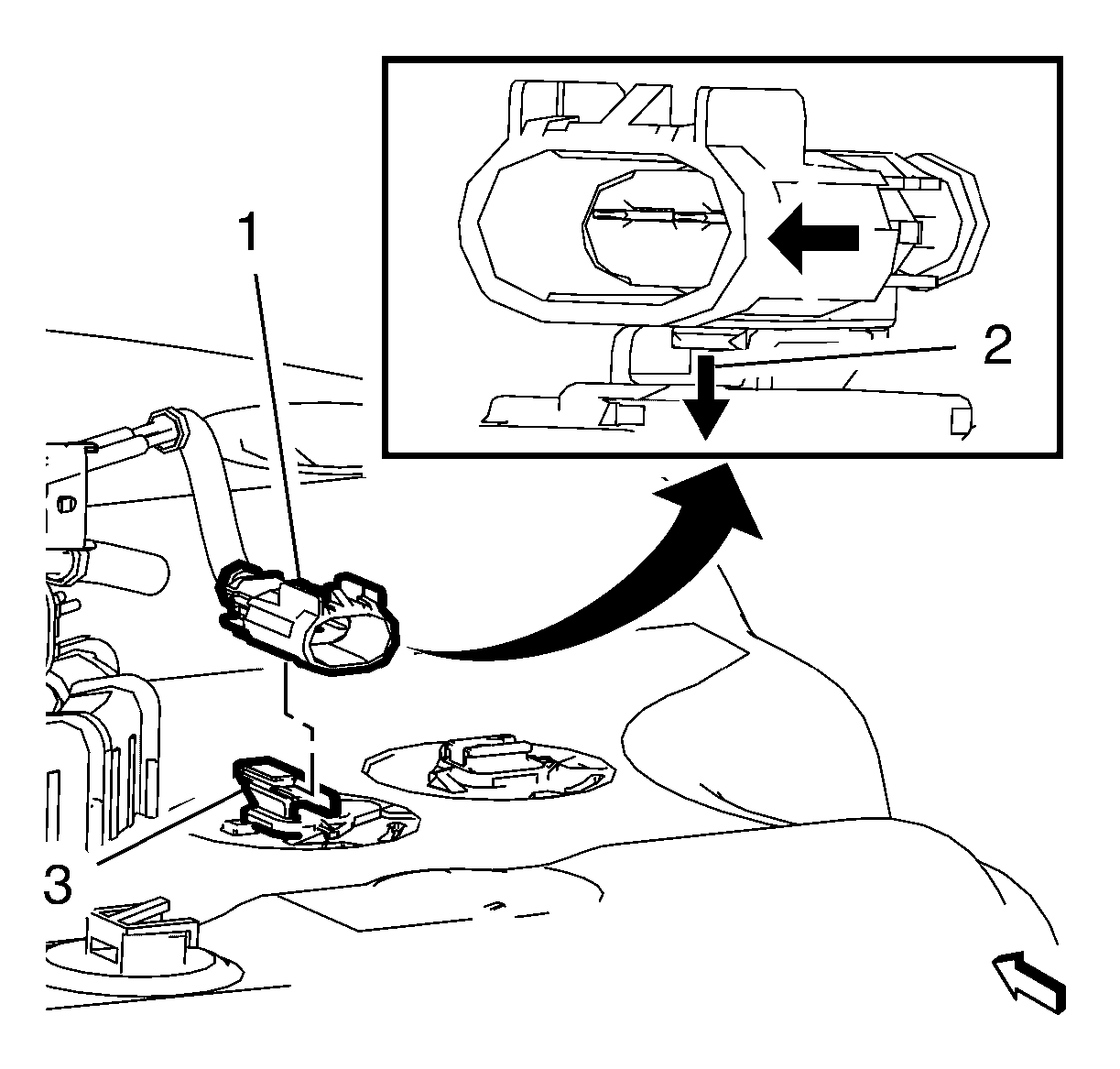

    Fig 4: Temperature Emission Reduction Fluid Tank Module
    GM3471687Courtesy of GENERAL MOTORS COMPANY
  9. Position the emission reduction fluid exhaust front pipe injector supply pipe (1) into the retainer (4).

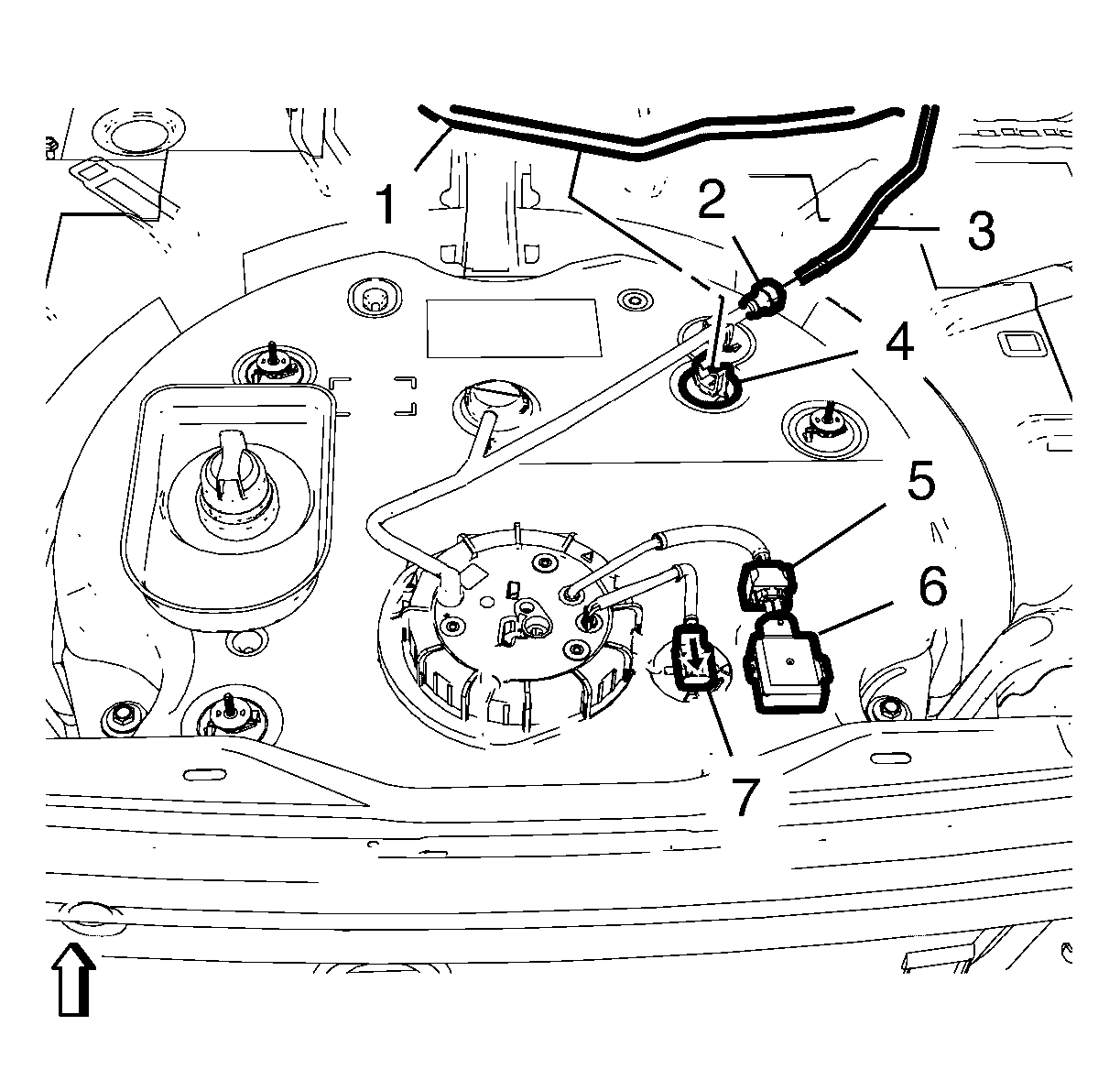

    Fig 5: Emission Reduction Fluid Tank Vent Elbow And Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe
    GM3216259Courtesy of GENERAL MOTORS COMPANY
  10. Install the emission reduction fluid supply pump module. Refer to Emission Reduction Fluid Supply Pump Module Replacement .
  11. Install the emission reduction fluid pump module wiring harness. Refer to Emission Reduction Fluid Pump Module Wiring Harness Replacement .
  12. Install the emission reduction fluid tank insulator - upper. Refer to Emission Reduction Fluid Tank Insulator Replacement - Upper .
  13. Install the emission reduction fluid tank filler cap (1).
    Fig 6: Emission Reduction Fluid Tank Filler Cap
    GM3216236Courtesy of GENERAL MOTORS COMPANY
