Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Install the emission reduction fluid tank insulator - upper (1).

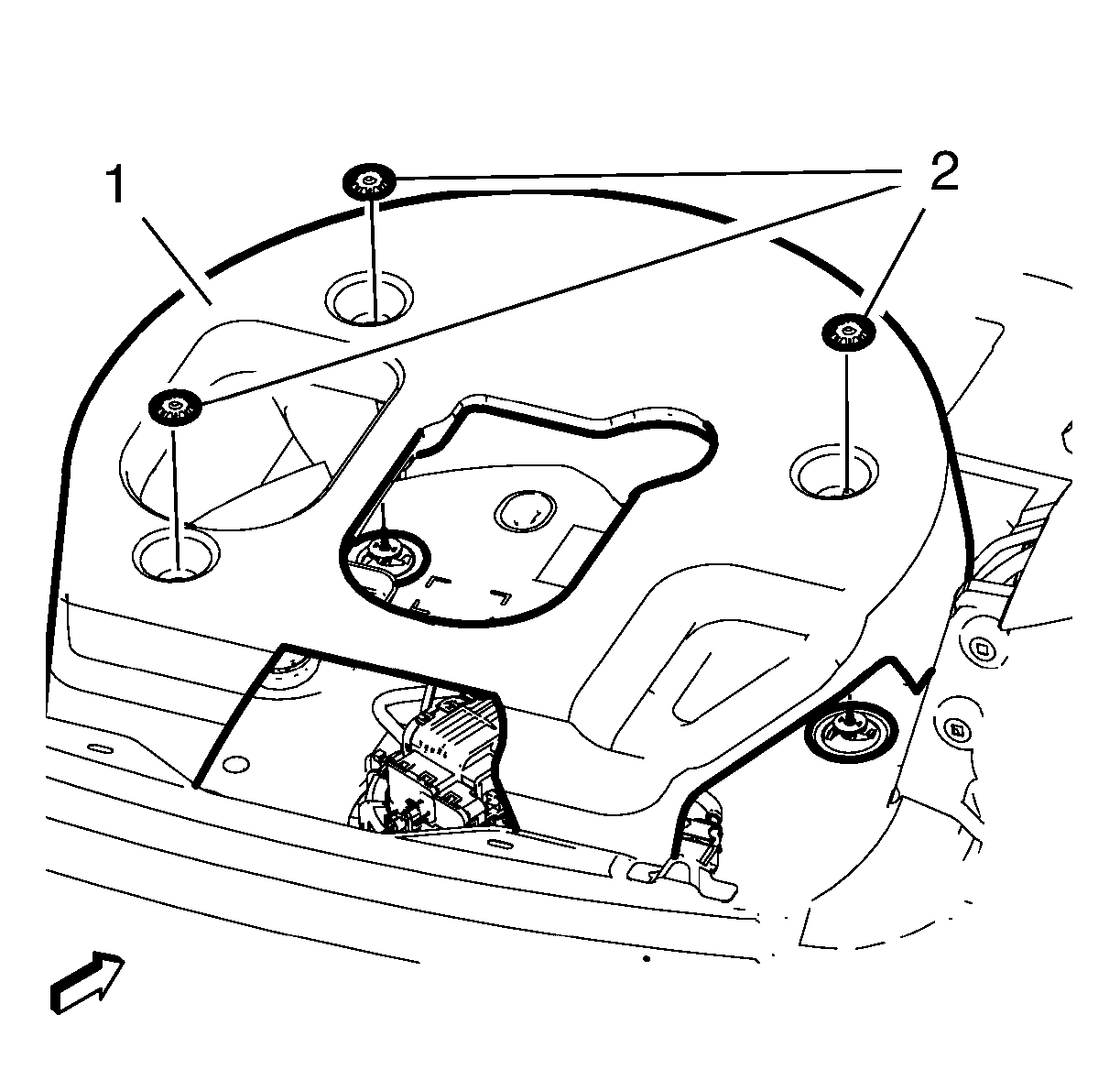

Fig 1: Emission Reduction Fluid Tank Protector Retainers
Courtesy of GENERAL MOTORS COMPANY
Install the 3 emission reduction fluid tank insulator retainers (2) and tighten to:
CAUTION: Refer to Fastener Caution .
- For metal fastener torque tighten to 1.5 N.m (13 lb in).
- For plastic fastener push on, until seated.
Install the rear compartment still trim plate. Refer to Rear Compartment Sill Trim Plate Replacement .
Lower the rear compartment floor cover.
Lower the rear compartment floor panel trim.
