Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the emission reduction fluid tank filler cap (1) to the emission reduction fluid tank.

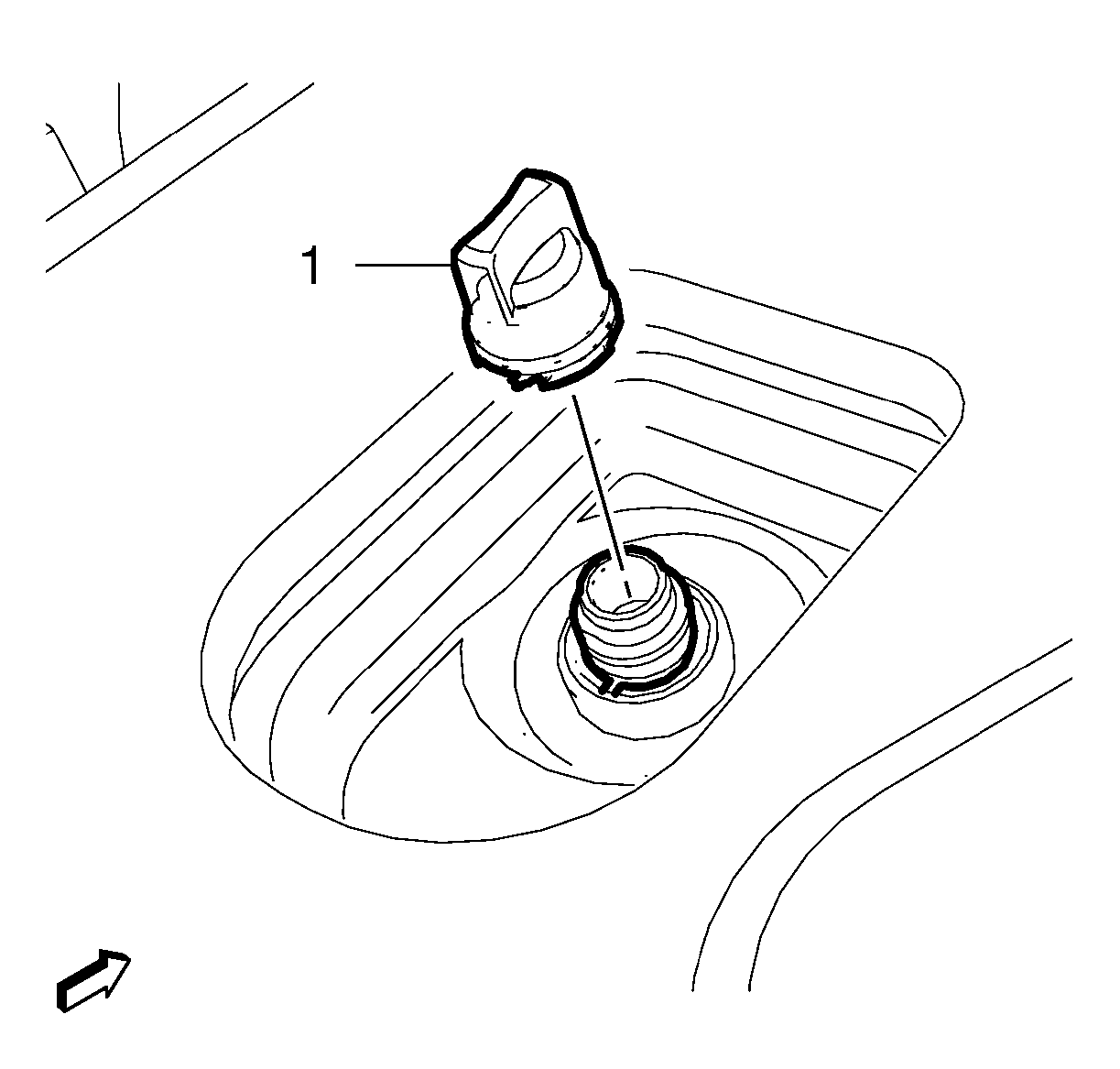

    Fig 1: Emission Reduction Fluid Tank Filler Cap
    GM3216236Courtesy of GENERAL MOTORS COMPANY
  2. Install the tether to the emission reduction fluid tank neck.
  3. Lower the rear compartment floor panel trim.
