Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Before performing the first steps, review the Emission Reduction Fluid and Emission Reduction Fluid Handling .
  2. Remove the emission reduction fluid tank insulator - upper. Refer to Emission Reduction Fluid Tank Insulator Replacement - Upper .
  3. Disconnect the 6 emission reduction fluid pump module wiring harness plugs.

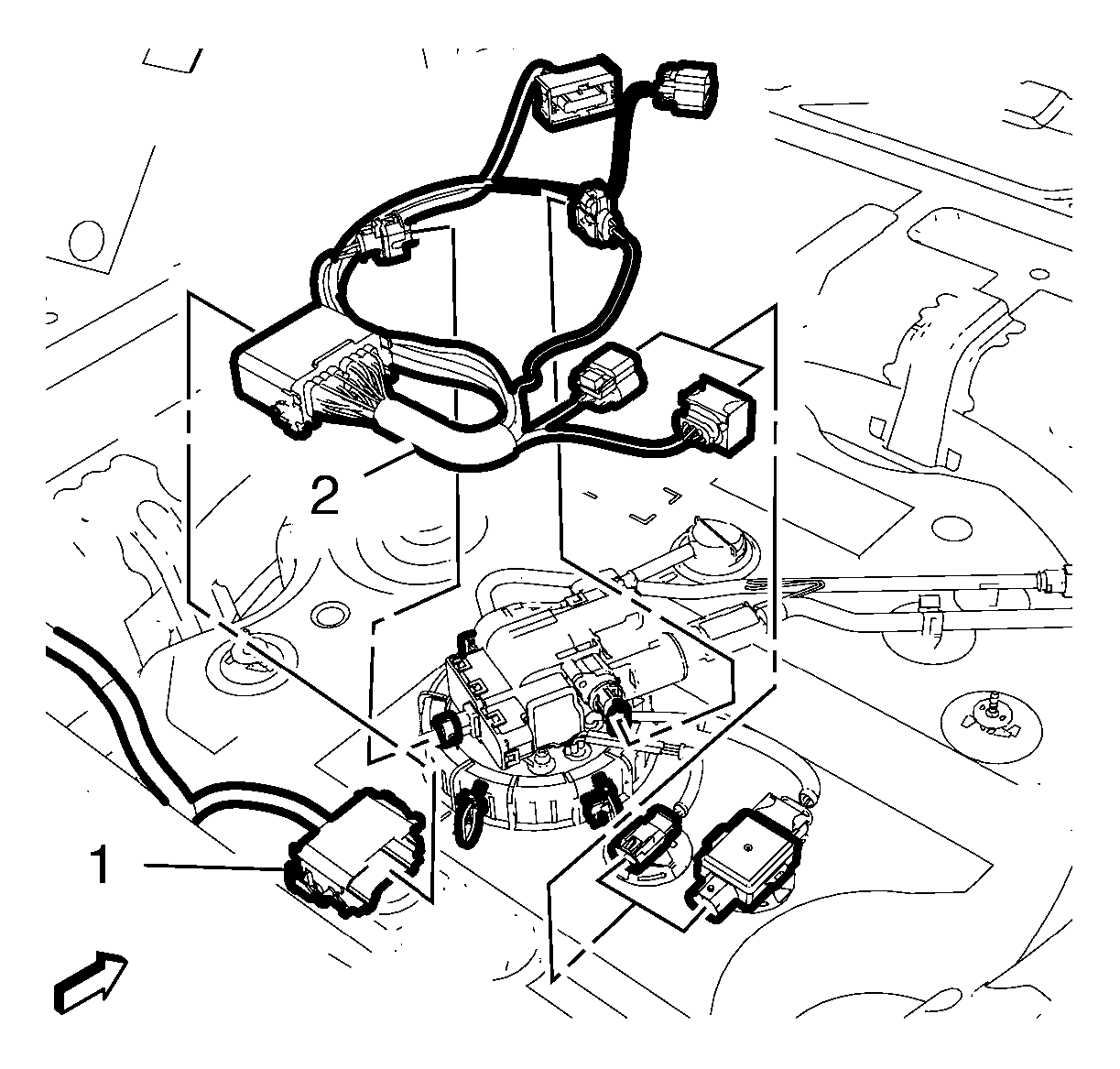

    Fig 1: Emission Reduction Fluid Pump Module Wiring Harness Plug And Body Wiring Harness
    GM3216250Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the emission reduction fluid pump module wiring harness plug (1) from the body wiring harness.
  5. Cut and DISCARD the 4 cable ties.
  6. Remove the emission reduction fluid pump module wiring harness (2).
