Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the emission reduction fluid injector (4) to the exhaust pipe vaporizer (3).

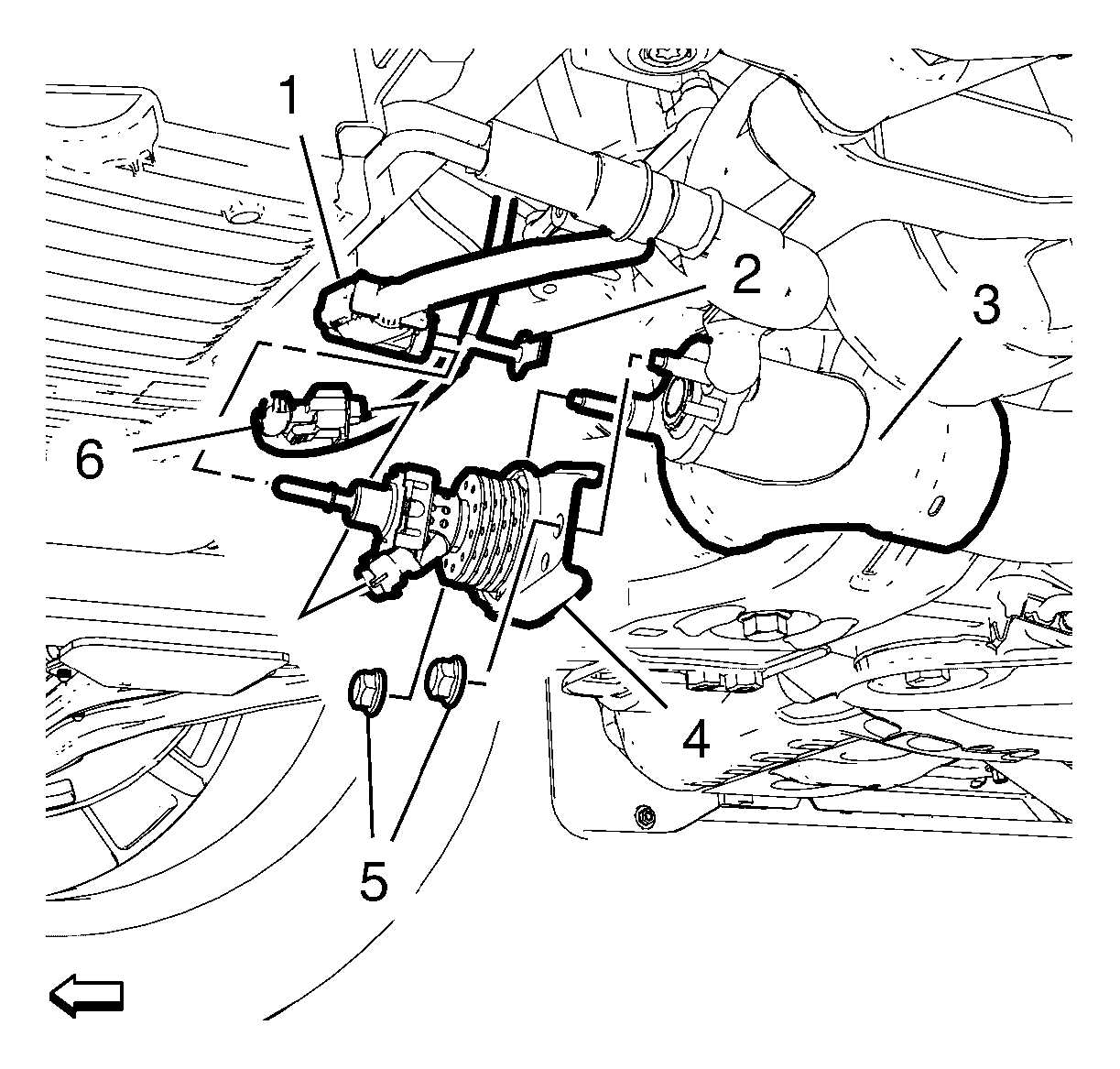

    Fig 1: Emission Reduction Fluid Injector Fluid Feed Pipe And Emission Reduction Fluid Injector
    GM3216265Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 emission reduction fluid injector nuts (5) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Uncap the emission reduction fluid injector fluid feed pipe (1).
  4. Connect the emission reduction fluid injector fluid feed pipe (1) to the emission reduction fluid injector (4).
  5. Connect the wiring harness plug (6) to the emission reduction fluid injector (4).
  6. Lower the vehicle.
