Charge Air Temperature Sensor Replacement - Charge Air Cooler Inlet Pipe

WARNING: This page is about a different variant/trim than selected.

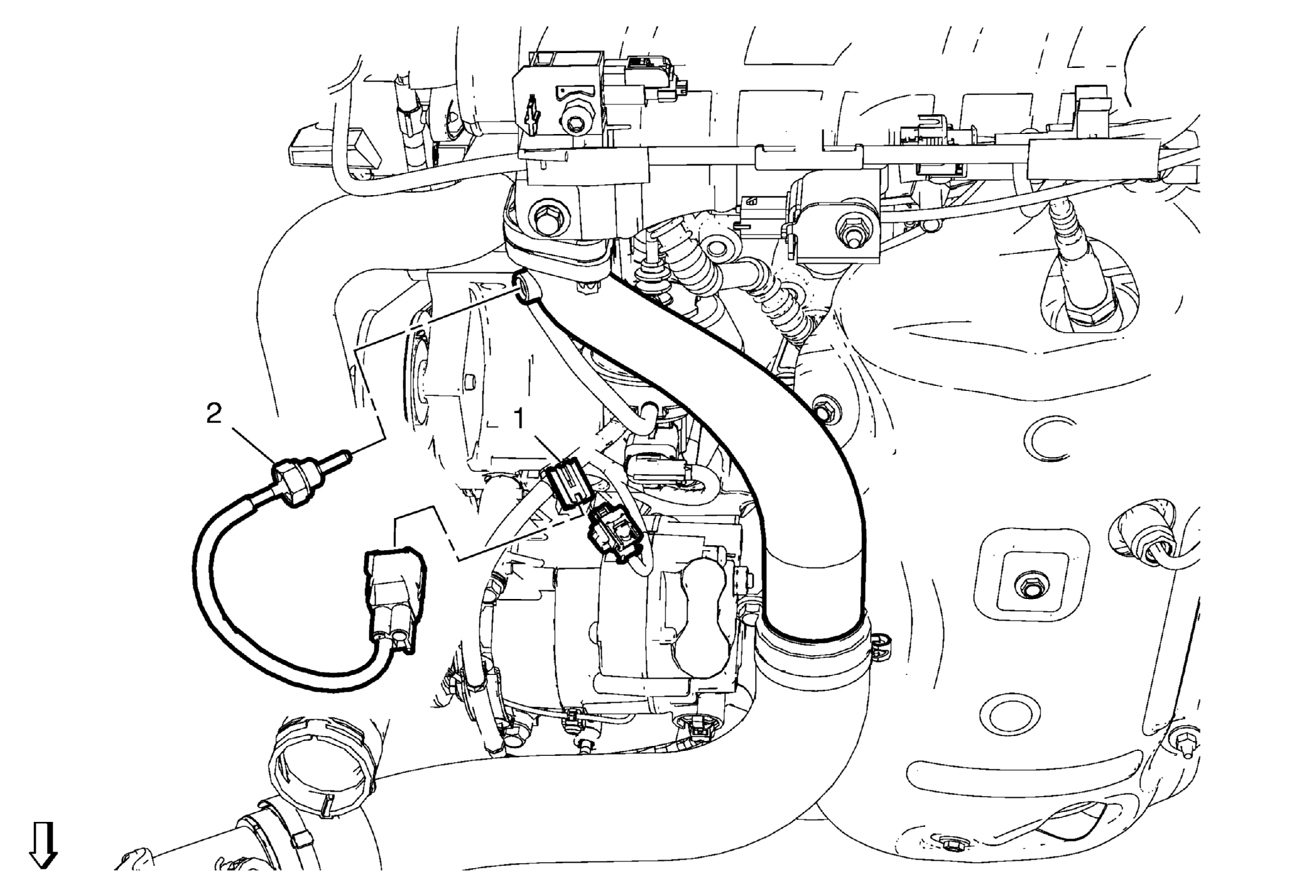

Fig 1: Charge Air Temperature Sensor - Charge Air Cooler Inlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Disconnect the charge air temperature sensor wiring harness plug.
1	Retainer
2	Charge Air Temperature Sensor CAUTION: Refer to Fastener Caution . Tighten 19 N.m (14 lb ft)

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
Disconnect the charge air temperature sensor wiring harness plug.

Retainer

Charge Air Temperature Sensor

CAUTION: Refer to Fastener Caution .

Tighten
19 N.m (14 lb ft)
