Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the air cleaner upper housing (2).

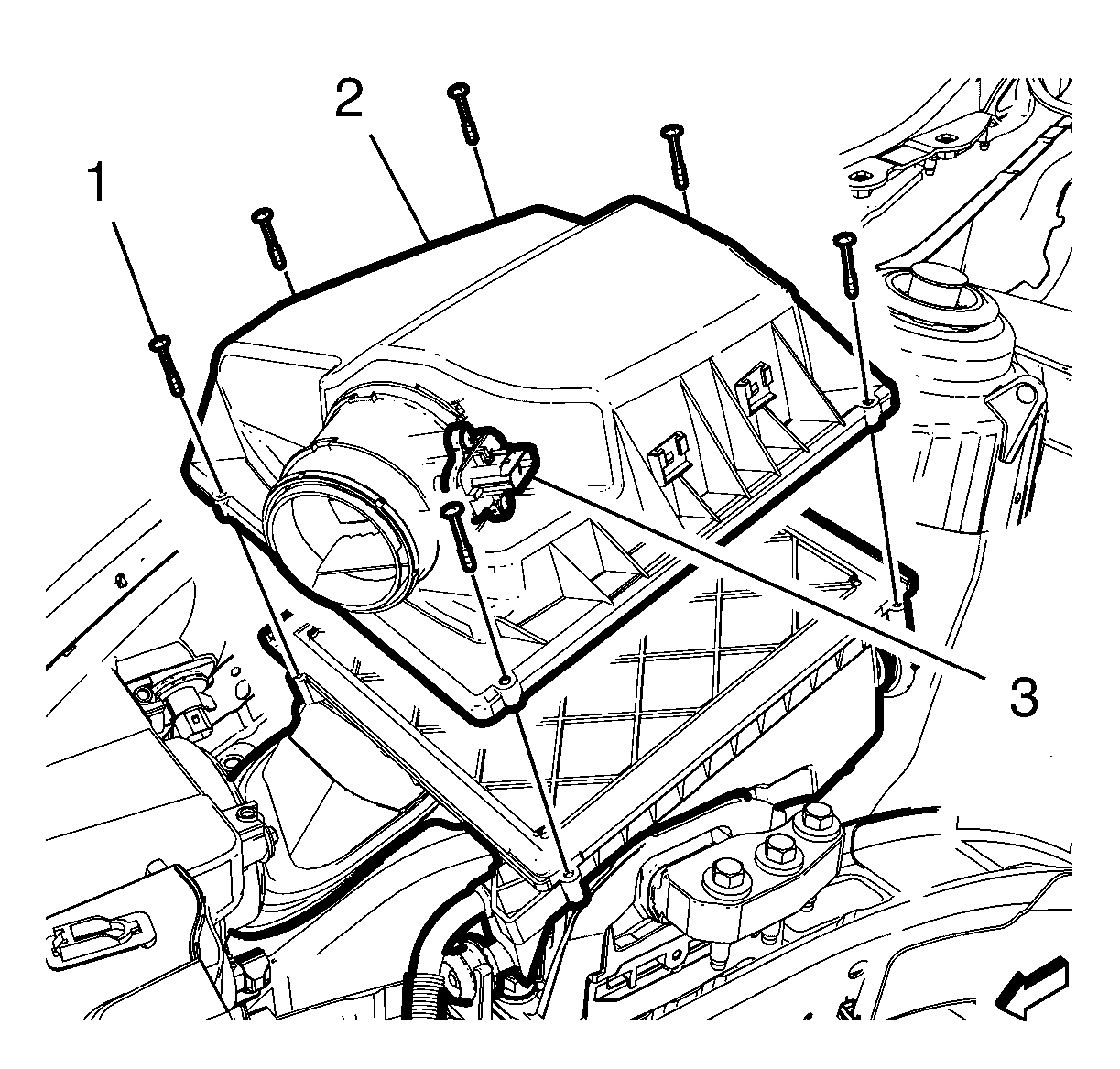

    Fig 1: Mass Air Flow Sensor And Cleaner Upper Housing
    GM2750573Courtesy of GENERAL MOTORS COMPANY
  2. Install the 6 air cleaner housing cover bolts (1) and tighten to 5 N.m (44 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the mass air flow sensor (3) to the air cleaner upper housing (2). Refer to Mass Airflow Sensor Replacement .
  4. Install the air cleaner outlet duct (1). Refer to Air Cleaner Outlet Duct Replacement .

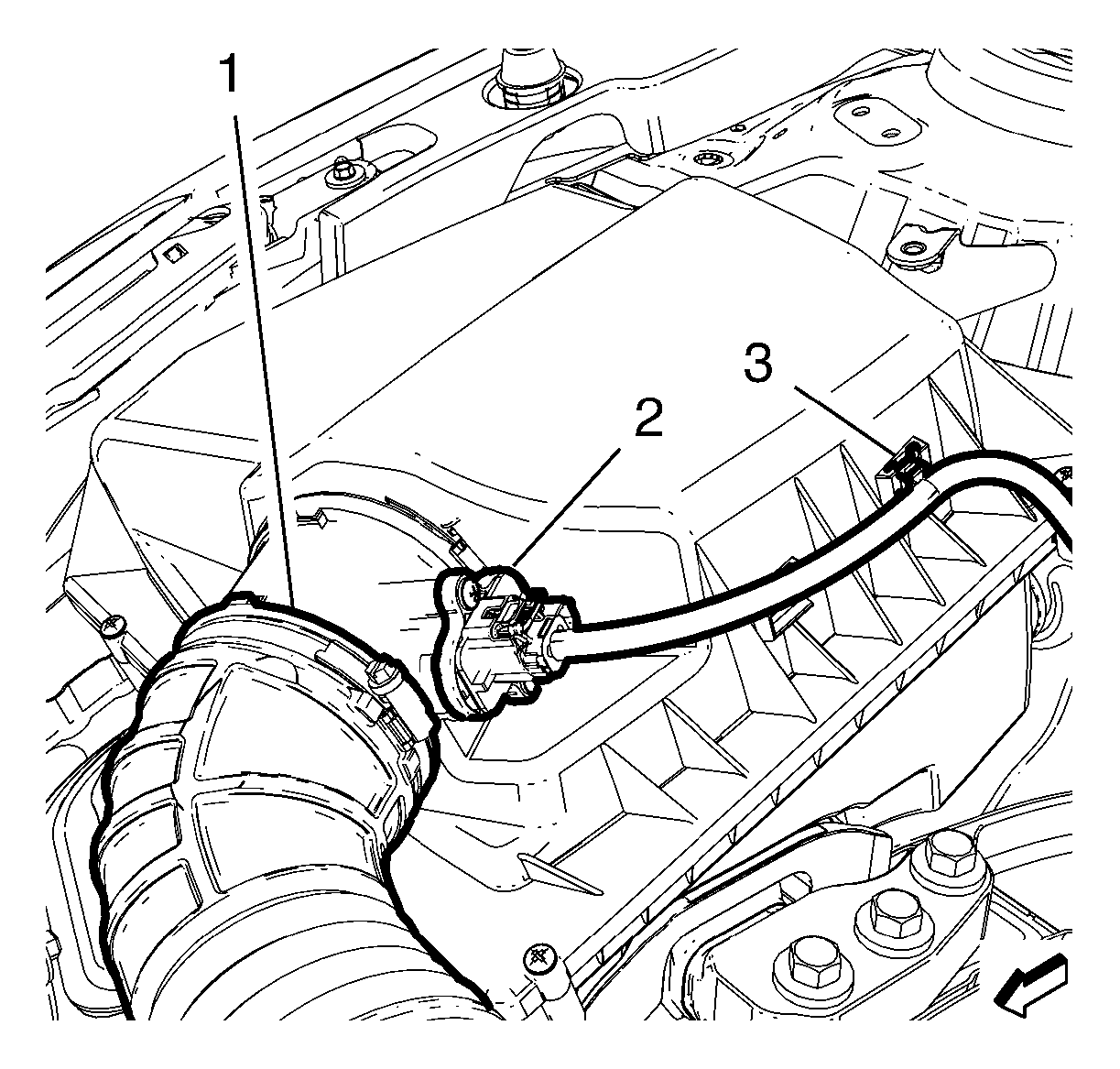

    Fig 2: Mass Airflow Sensor Wiring Harness Plug And Air Cleaner Outlet Duct
    GM2750572Courtesy of GENERAL MOTORS COMPANY
  5. Connect the mass airflow sensor wiring harness plug (2).
  6. Clip in the mass airflow sensor wiring harness (3) the air cleaner housing.
