Section 17 (Engine Controls And Fuel - 2.0L (LUZ) Diesel - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Fuel Controls - Fuel Heater/Water in Fuel Sensor
Fuel Controls - Fuel Heater/Water in Fuel Sensor
WARNING:
This page is about a different variant/trim than selected.

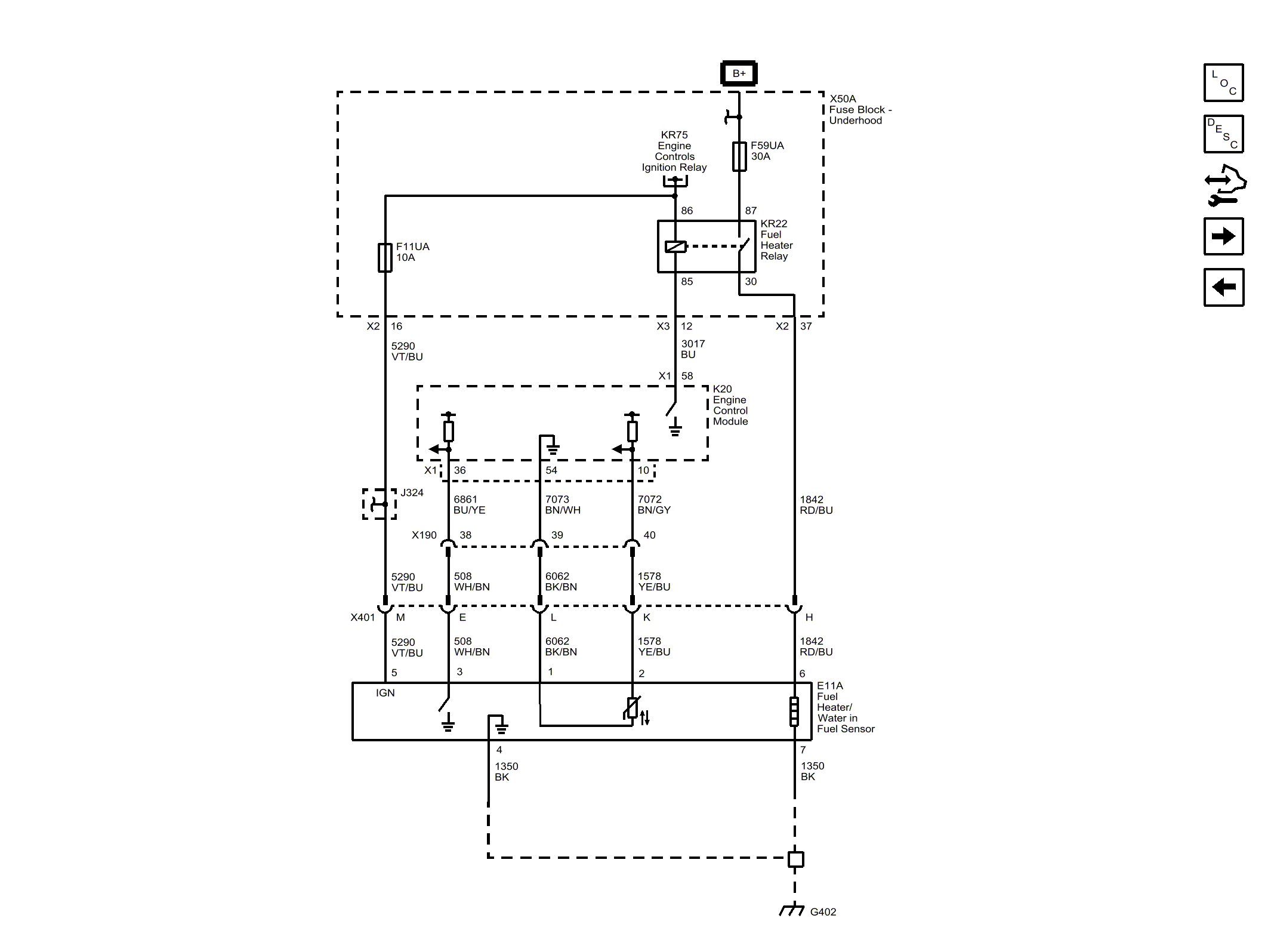

Fig 1: Fuel Controls - Fuel Heater/Water in Fuel Sensor
Courtesy of GENERAL MOTORS COMPANY
