Engine Data Sensors - Pressure and Temperature (2 of 2)

WARNING: This page is about a different variant/trim than selected.

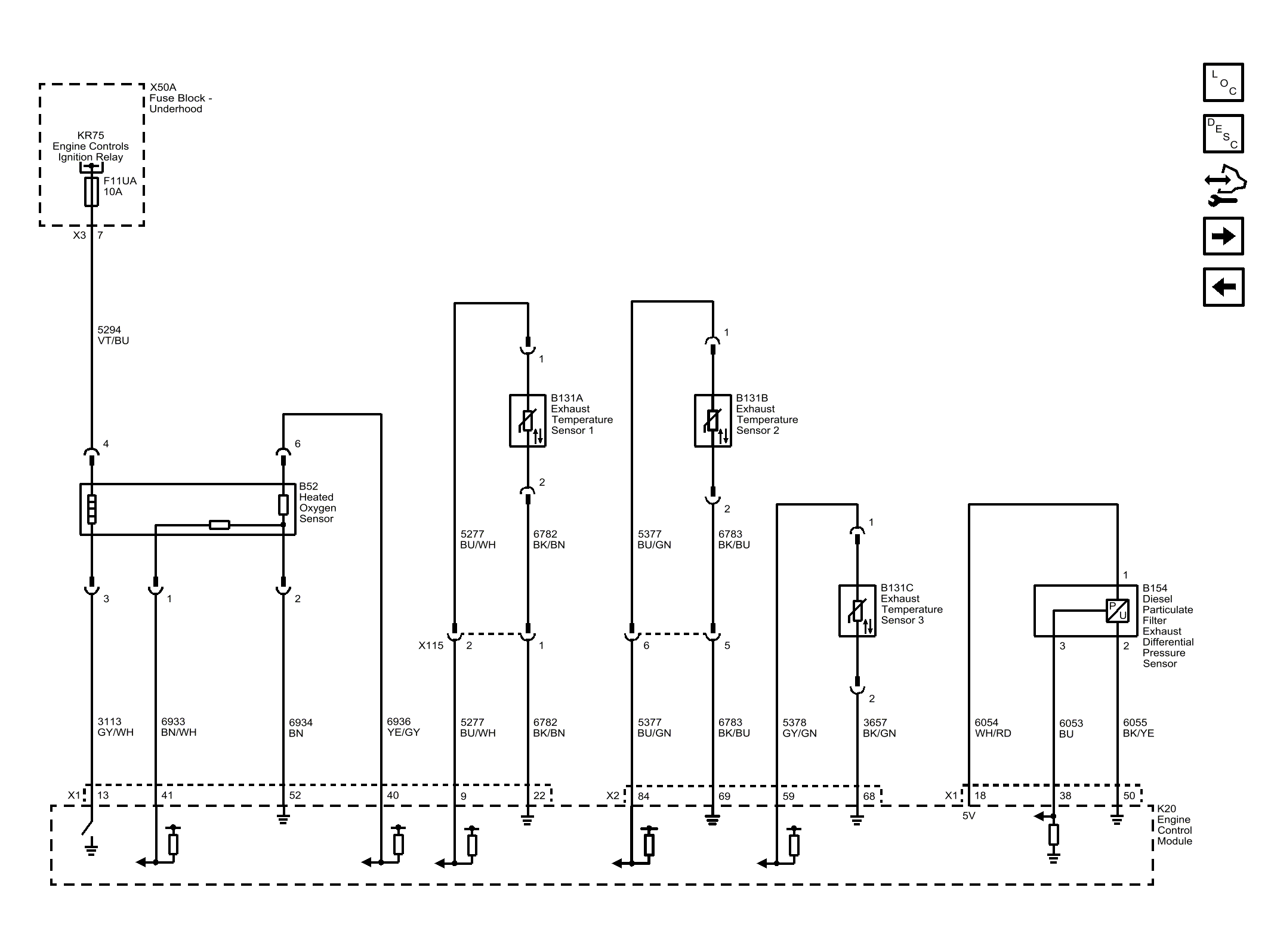

Fig 1: Engine Data Sensors - Pressure and Temperature (2 of 2)
GM3814439Courtesy of GENERAL MOTORS COMPANY
