Section 17 (Engine Controls And Fuel - 2.0L (LUZ) Diesel - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Engine Data Sensors - Glow Plug Controls
Engine Data Sensors - Glow Plug Controls
WARNING:
This page is about a different variant/trim than selected.

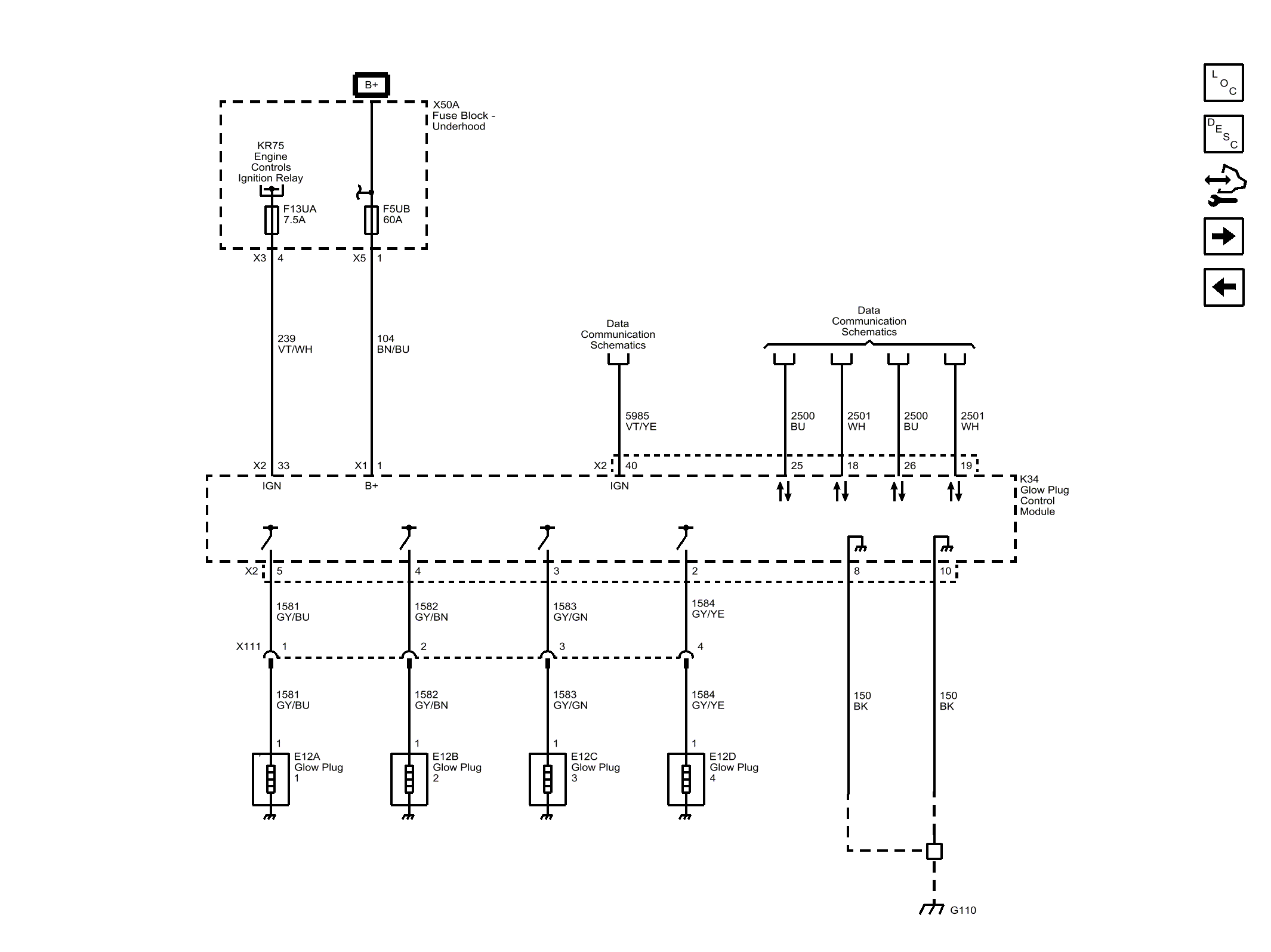

Fig 1: Engine Data Sensors - Glow Plug Controls
Courtesy of GENERAL MOTORS COMPANY
