Good Fuel Pressure Regulator Graph at Idle

WARNING: This page is about a different variant/trim than selected.

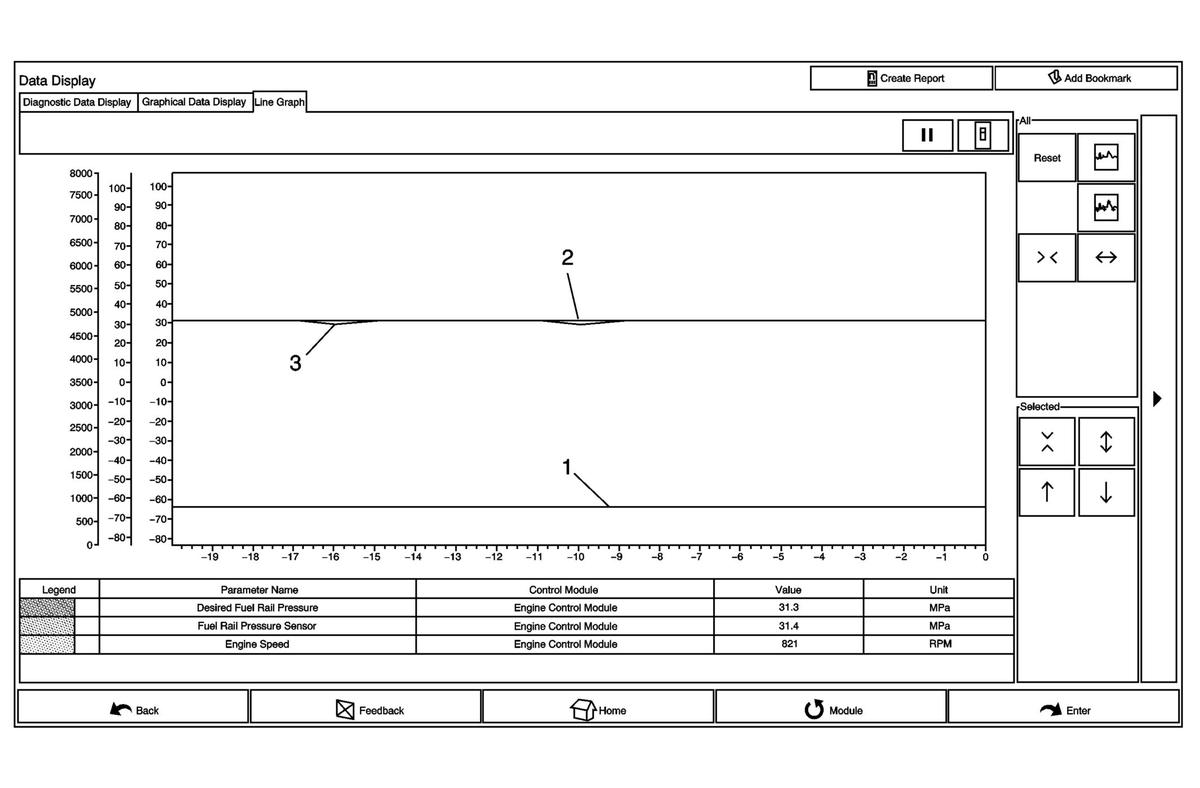

Fig 1: Good Fuel Pressure Regulator Graph at Idle
GM3216975Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine Speed
2 Desired Fuel Rail Pressure
3 Fuel Rail Pressure
