Fuel Pressure Graph, Surging

WARNING: This page is about a different variant/trim than selected.

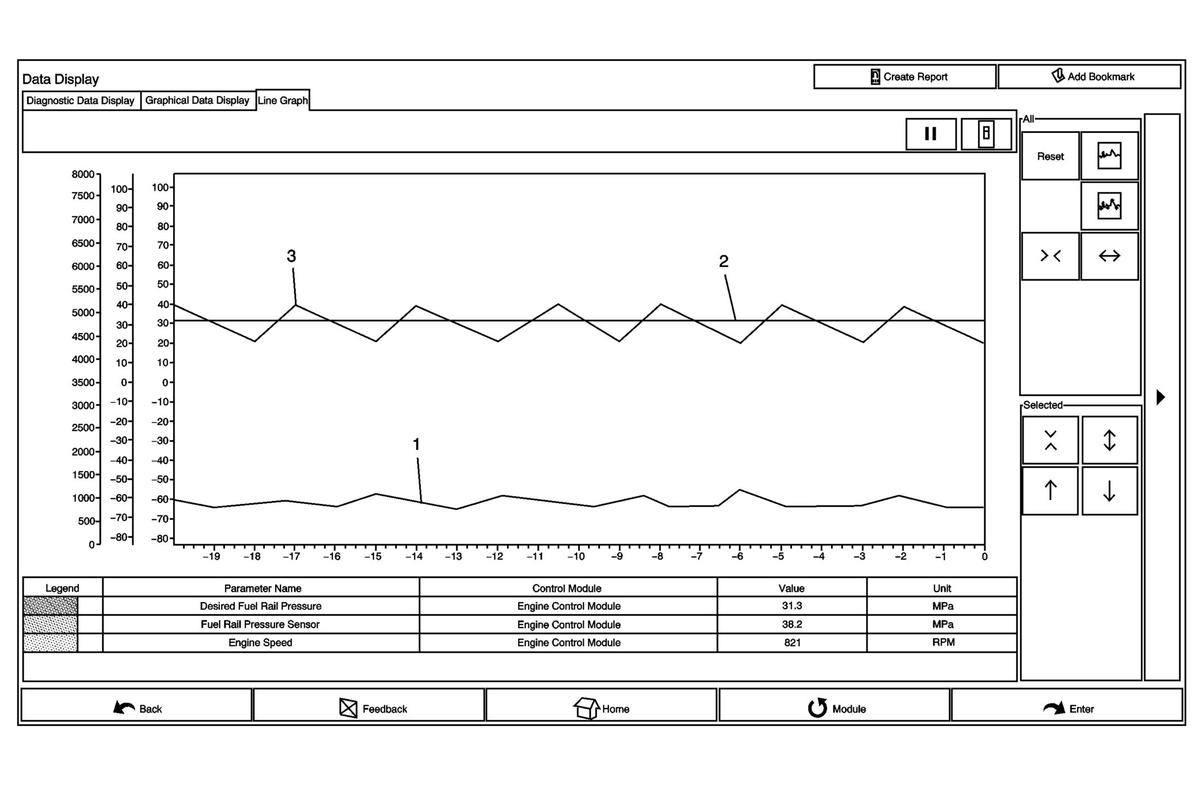

Fig 1: Fuel Pressure Graph, Surging
GM3216971Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine Speed
2 Desired Fuel Rail Pressure
3 Fuel Rail Pressure
