Temperature and Speed Sensors, Manual Valve, Pressure Controls and Shift Controls

WARNING: This page is about a different variant/trim than selected.

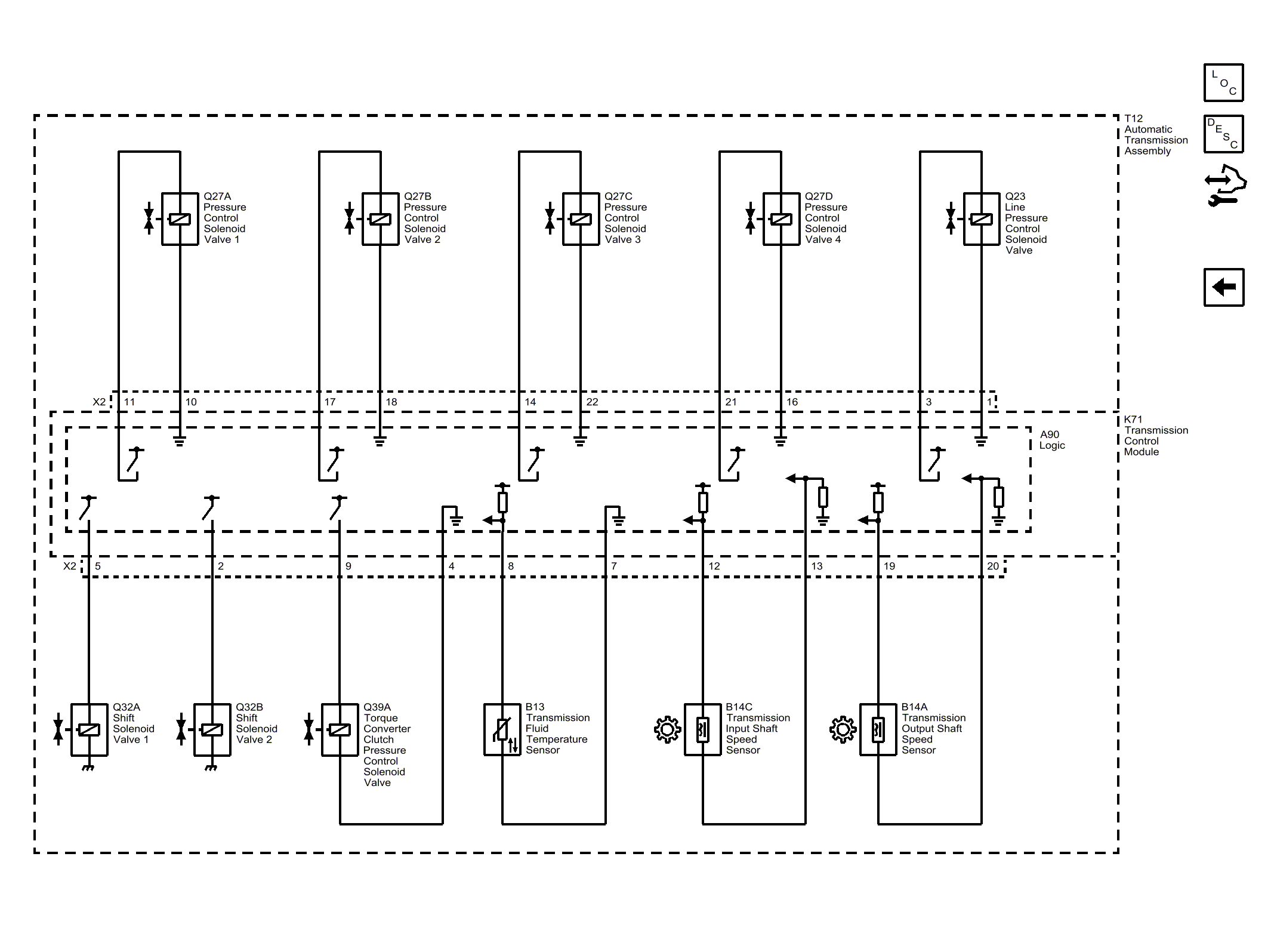

Fig 1: Temperature and Speed Sensors, Manual Valve, Pressure Controls and Shift Controls
GM3814604Courtesy of GENERAL MOTORS COMPANY
