Section 1 (Automatic Transmission - AF40-6)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>
Module Power, Ground, Data Communication and MIL
Module Power, Ground, Data Communication and MIL
WARNING:
This page is about a different variant/trim than selected.

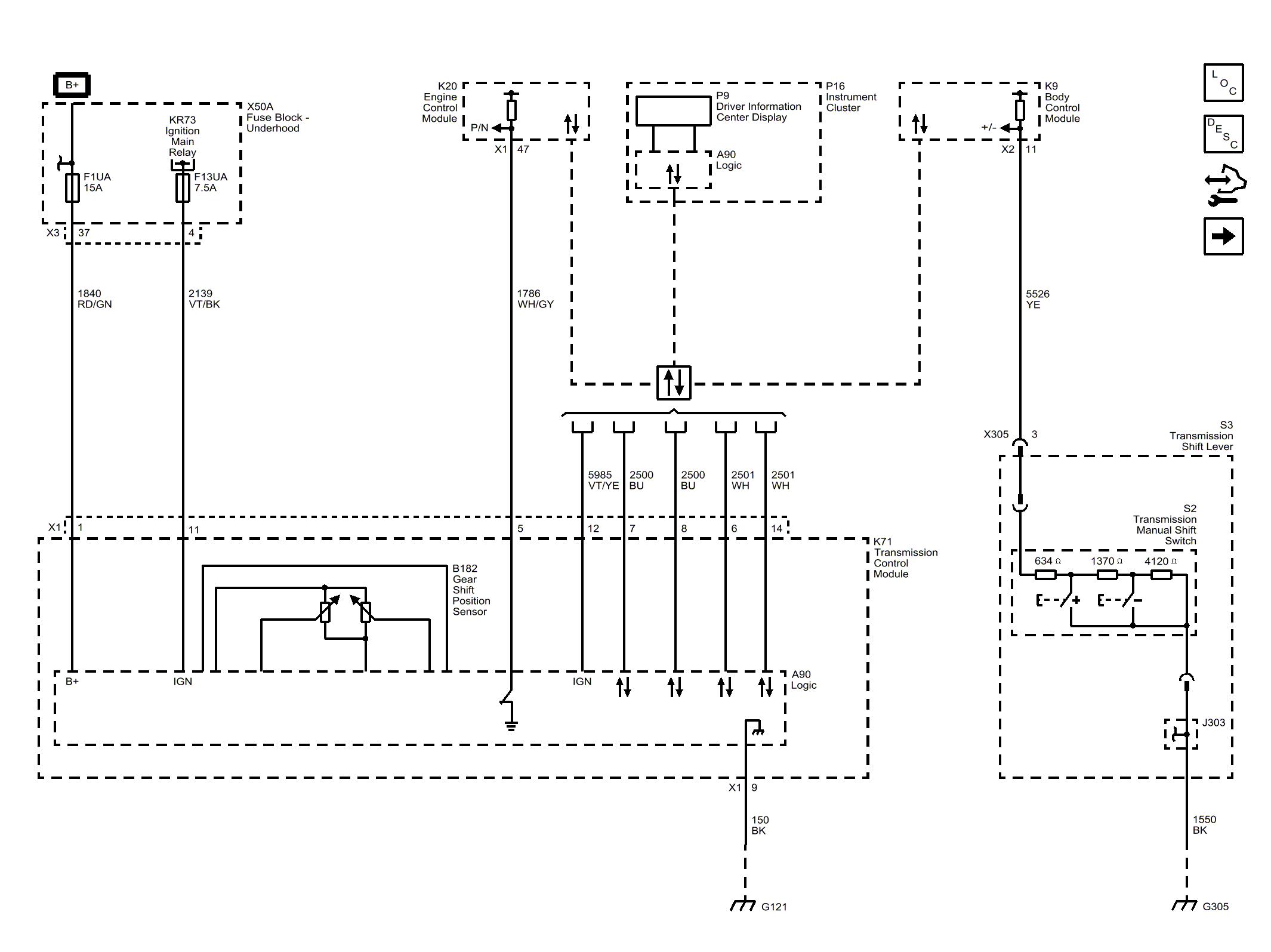

Fig 1: Module Power, Ground, Data Communication and MIL
Courtesy of GENERAL MOTORS COMPANY
