Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install rear transmission mount.

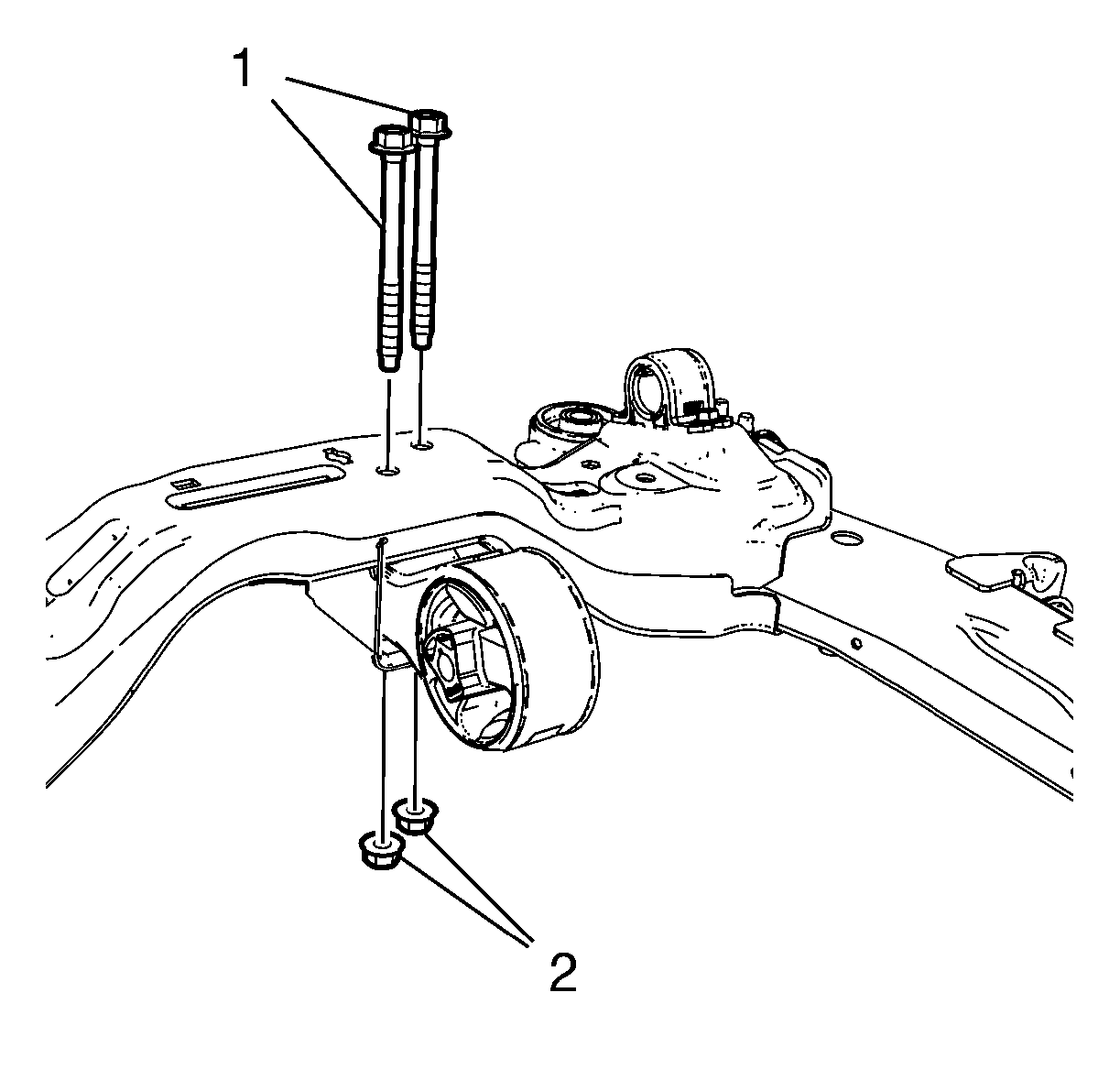

    Fig 1: Automatic Transmission Mount Bolts
    GM2191323Courtesy of GENERAL MOTORS COMPANY
  2. Install rear transmission mount to frame bolts (1) and nuts (2) and tighten to 110 N.m (81 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install rear transmission mount bracket. Refer to Transmission Mount Bracket Replacement - Rear .
  4. Install steering gear - EPS. Refer to Steering Gear Replacement .
