Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission mount bracket - rear (2).

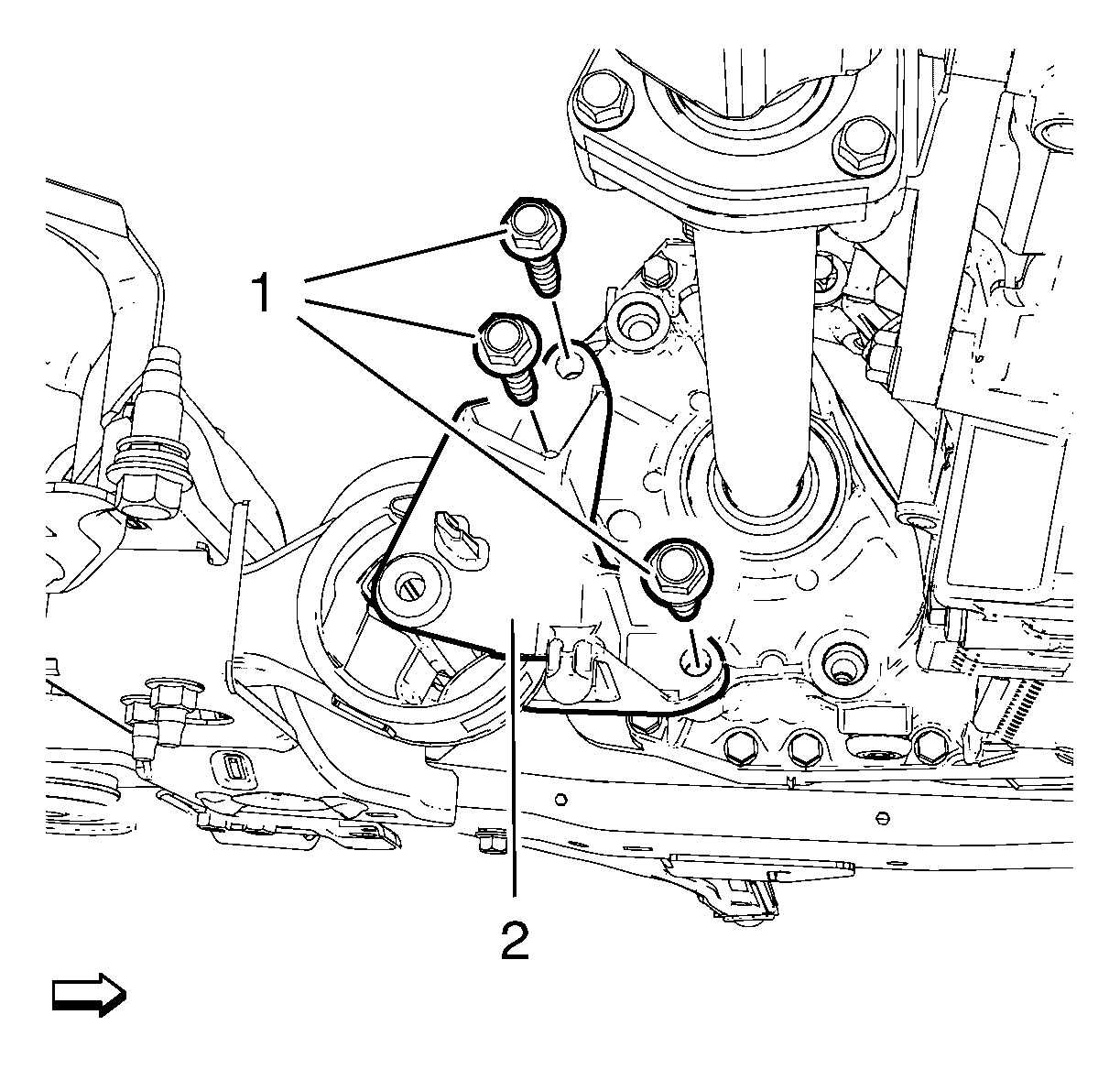

    Fig 1: Removing Transmission Mount Bracket - Rear Bolts
    GM2190833Courtesy of GENERAL MOTORS COMPANY
  2. Install the 3 transmission mount bracket - rear bolts (1) and tighten to 100 N.m (74 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the transmission bracket mount to mount through bolt (1) and tighten to 100 N.m (74 lb ft).

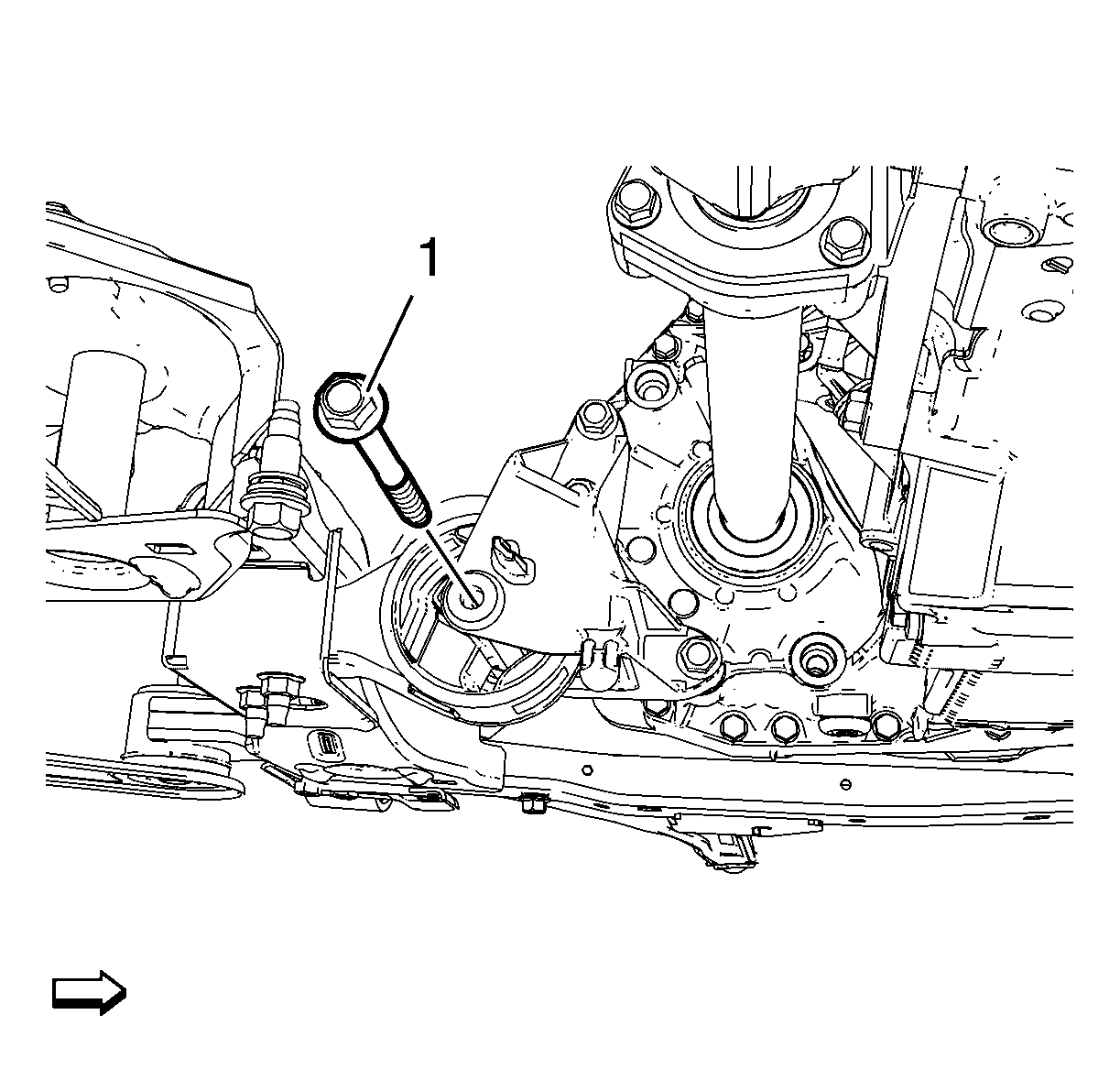

    Fig 2: Removing Transmission Bracket Mount To Mount Through Bolt Through Bolt
    GM2190832Courtesy of GENERAL MOTORS COMPANY
  4. Remove the jack stand.
  5. Install the three-way catalytic converter. Refer to Three-Way Catalytic Converter Replacement .
  6. Install front compartment insulator. Refer to Front Compartment Insulator Replacement .
  7. Lower the vehicle.
