Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission front mount (2).

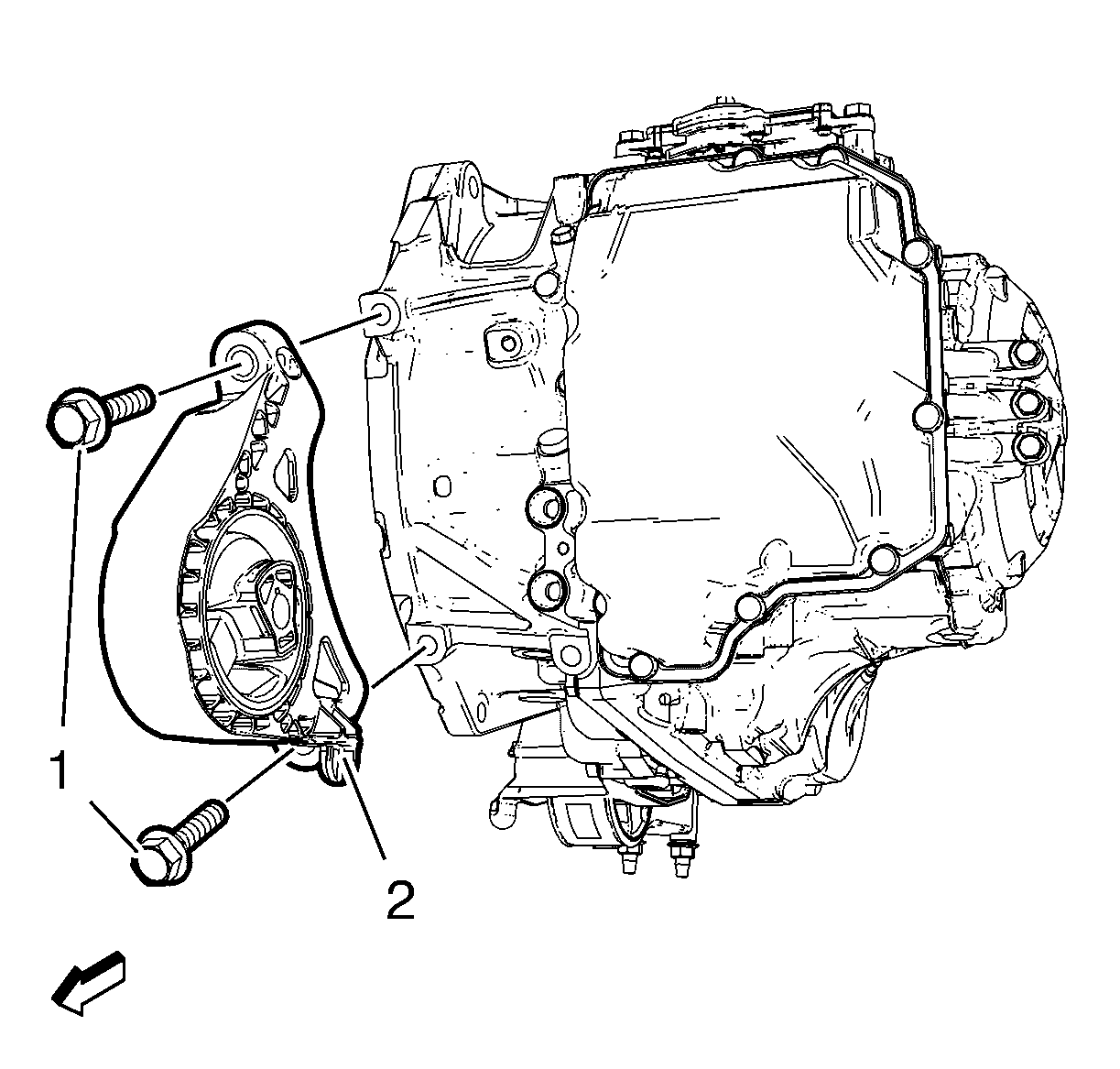

    Fig 1: Transmission Front Mount-To-Transmission Bolts
    GM2190825Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 transmission front mount-to-transmission bolts (1) and tighten to 100 N.m (74 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the transmission front mount through bolt (1) and tighten to 100 N.m (74 lb ft).

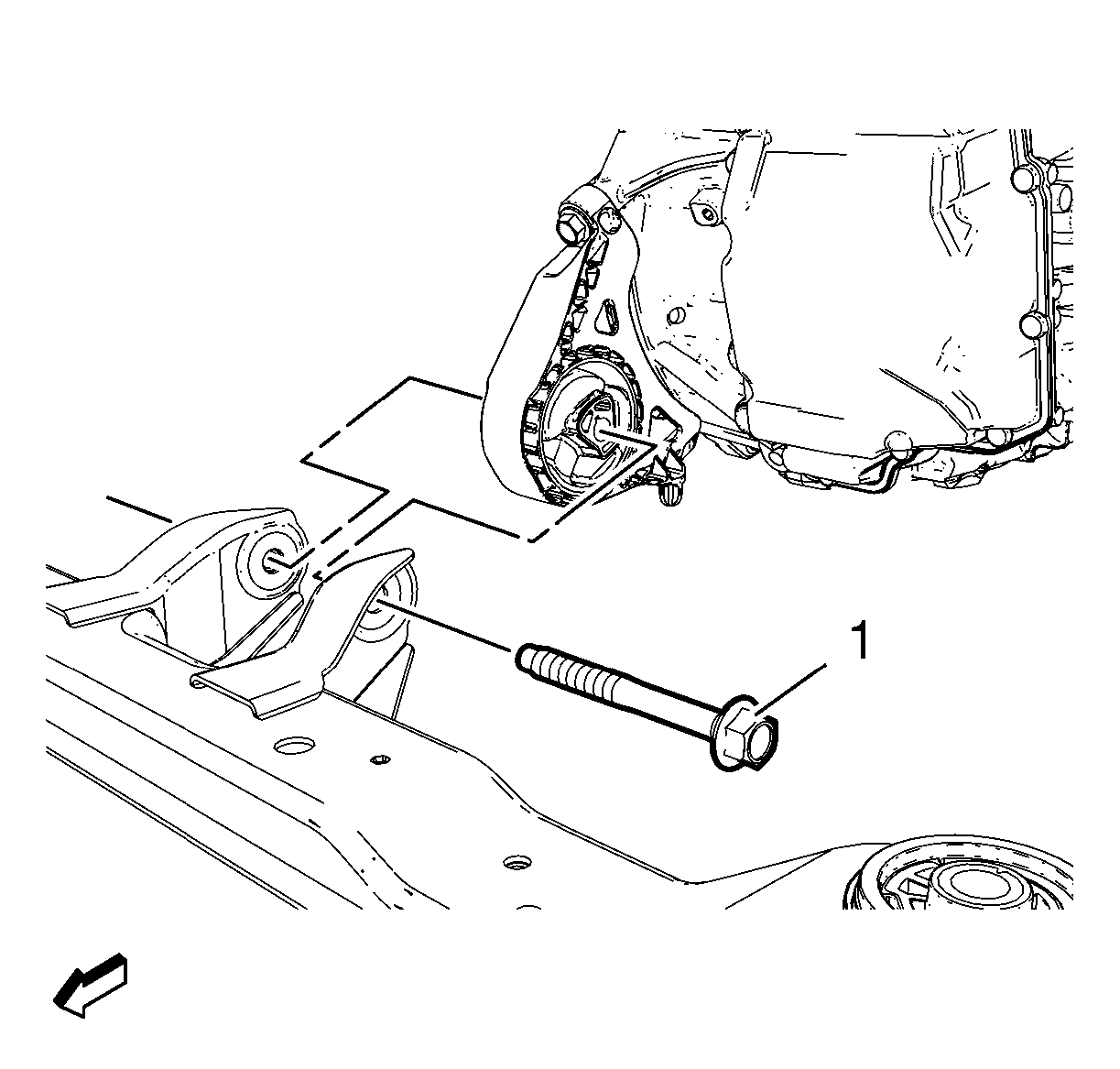

    Fig 2: Transmission Front Mount Through Bolt
    GM2190823Courtesy of GENERAL MOTORS COMPANY
  4. Remove the jack stand.
  5. Install the front compartment insulator. Refer to Front Compartment Insulator Replacement .
  6. Lower the vehicle.
