Torque Converter Fluid Seal Replacement

WARNING: This page is about a different variant/trim than selected.

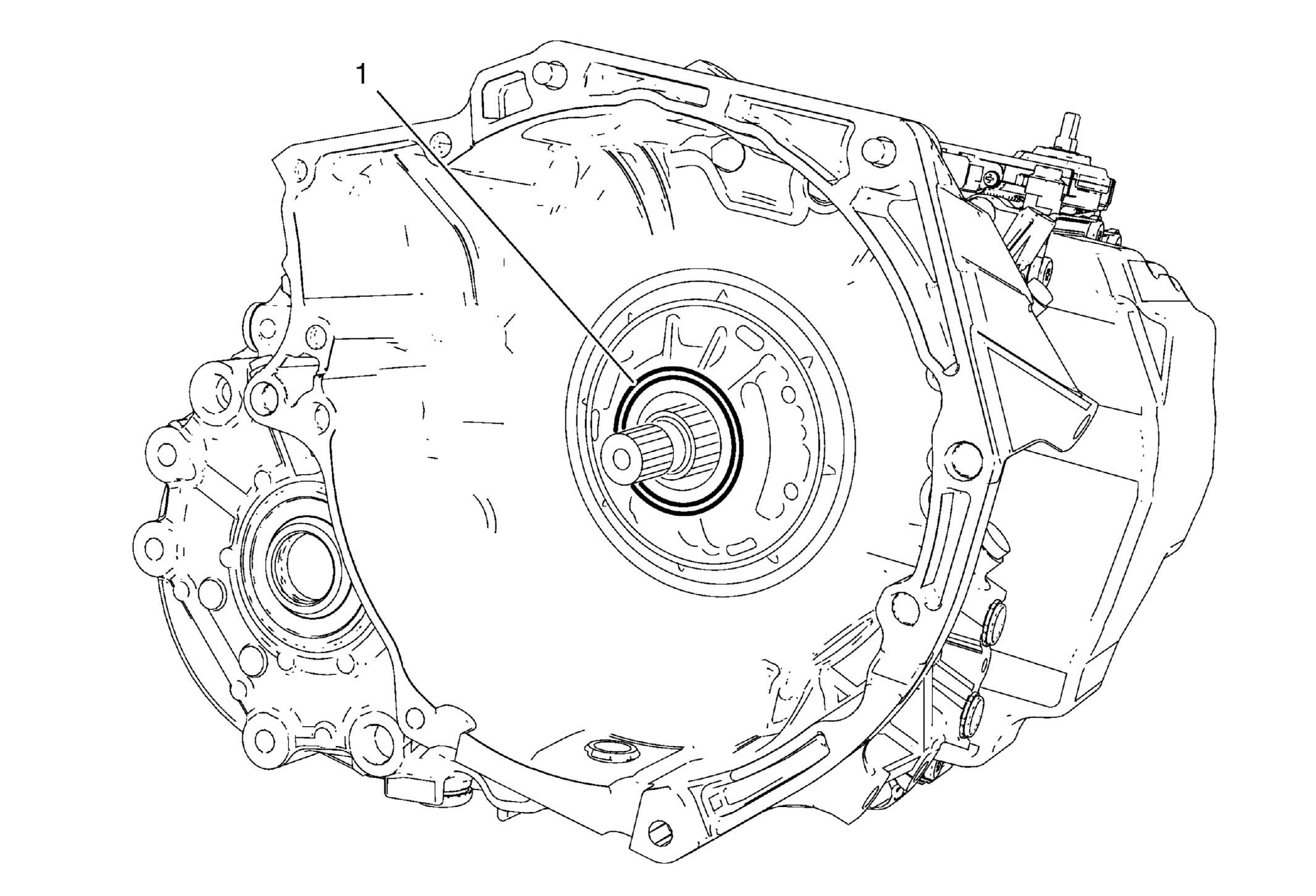

Fig 1: Torque Converter Fluid Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the torque converter. Refer to Torque Converter Replacement . Special Tools EN-328-B remover EN-469-A remover/installer DT-674-A installer DT-6328 adapter For equivalent regional tools refer to Special Tools .
1	Torque Converter Fluid Seal CAUTION: Support the back side of the torque converter housing while installing the seal. Install the seal until it stops moving. Applying excessive pressure to the seal once it is seated could cause damage to the torque converter housing casting.

Callout

Component Name

Preliminary Procedures
Remove the torque converter. Refer to Torque Converter Replacement .

Special Tools

EN-328-B remover
EN-469-A remover/installer
DT-674-A installer
DT-6328 adapter

For equivalent regional tools refer to Special Tools .

Torque Converter Fluid Seal

CAUTION: Support the back side of the torque converter housing while installing the seal. Install the seal until it stops moving. Applying excessive pressure to the seal once it is seated could cause damage to the torque converter housing casting.
