Front Axle Shaft Seal Replacement - Right Side

WARNING: This page is about a different variant/trim than selected.

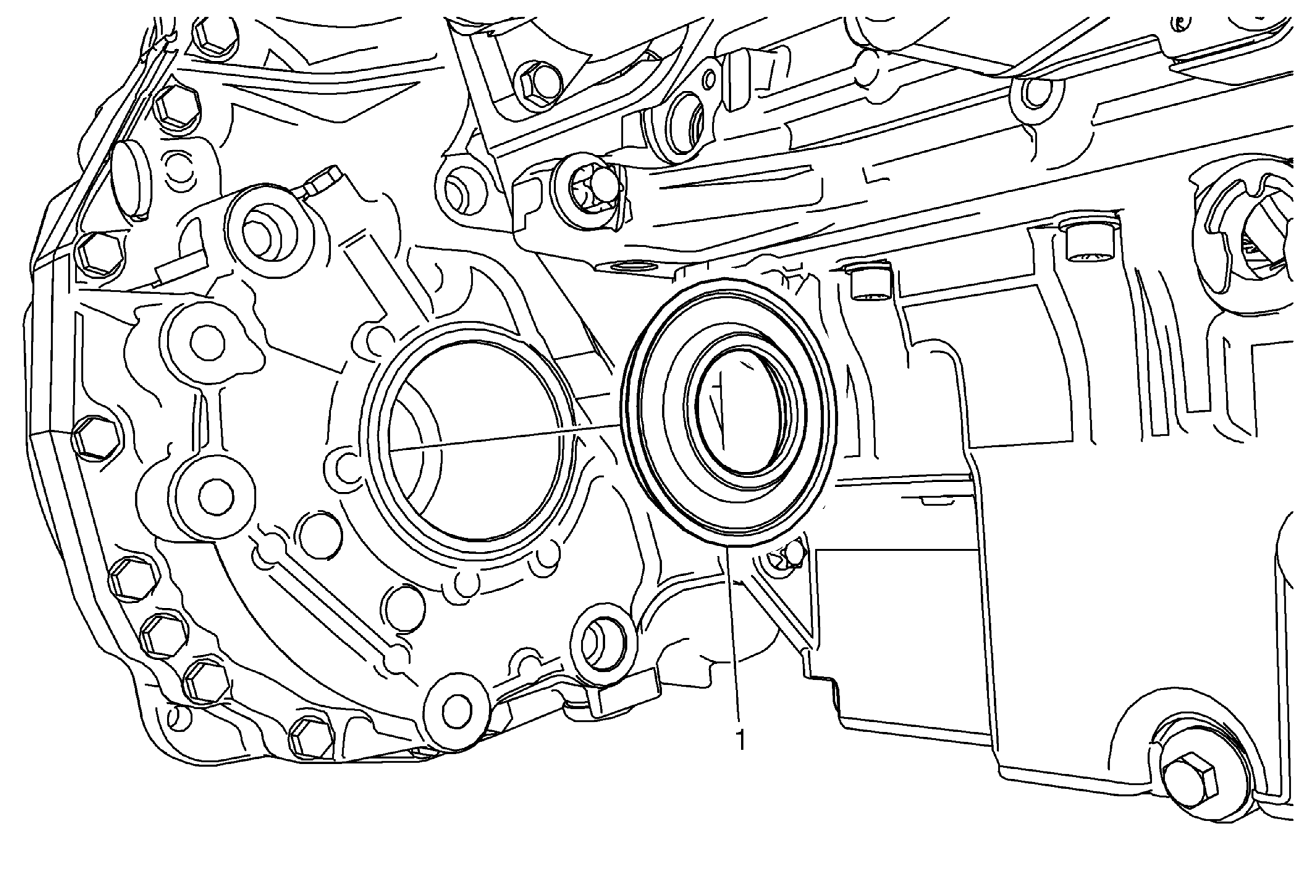

Fig 1: Front Axle Shaft Seal - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the intermediate drive shaft. Refer to Front Wheel Drive Intermediate Shaft Replacement .
1	Right Front Wheel Drive Shaft Oil Seal Special Tools DT-557-B Puller/Remover J-44809 Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the intermediate drive shaft. Refer to Front Wheel Drive Intermediate Shaft Replacement .

Right Front Wheel Drive Shaft Oil Seal

Special Tools

For equivalent regional tools, refer to Special Tools .
