Control Solenoid Valve Inspection
WARNING: This page is about a different variant/trim than selected.
The torque converter stator roller clutch can have two different malfunctions.

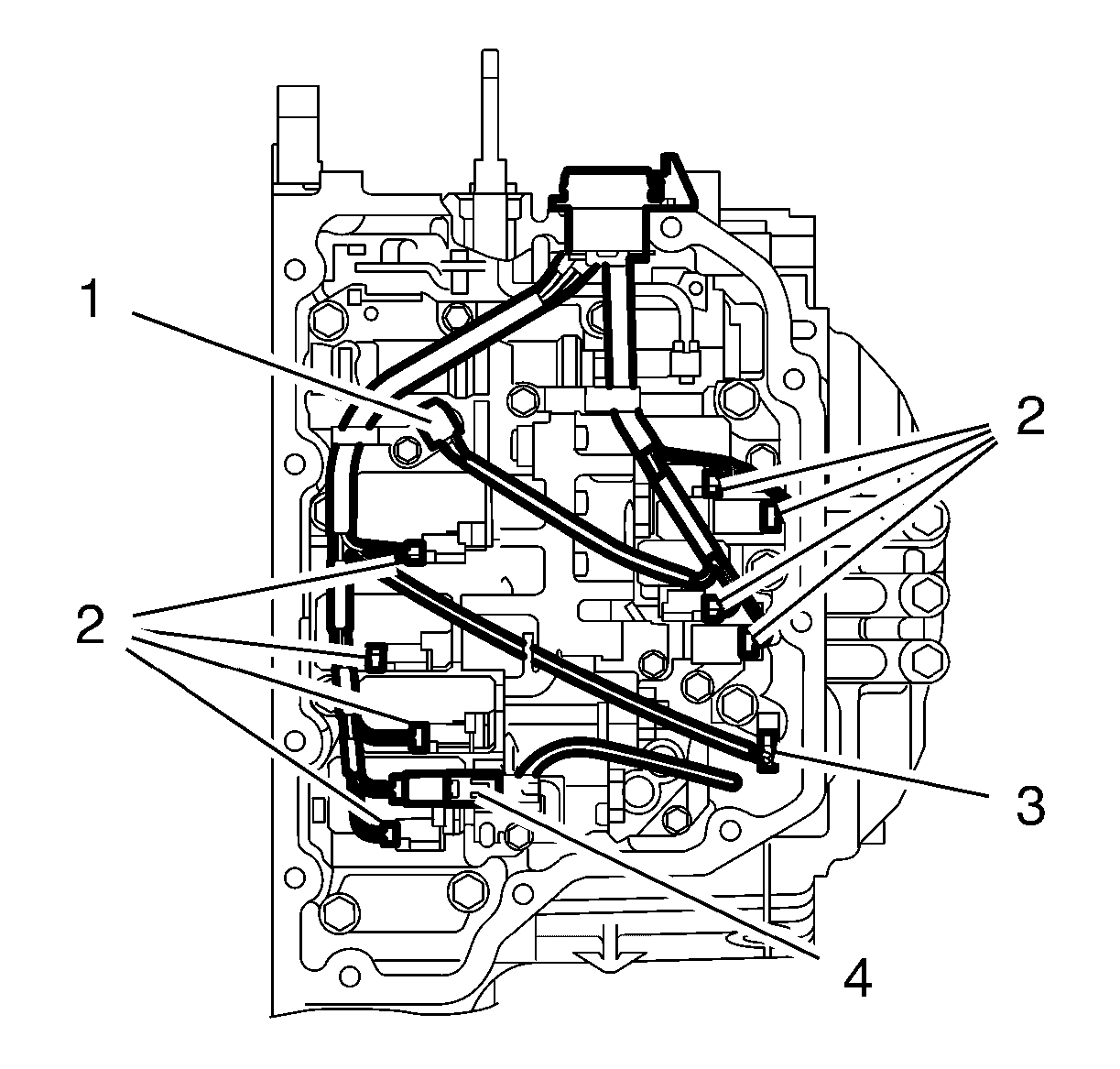

- Inspect the control solenoid valve connectors and pins (2), oil temperature sensor connector and pins (1), input speed sensor connector and pins (3), output speed sensor connector and pins (4) for the following conditions:
- Damage
- Bent pins
- Debris
- Broken retaining tab
- Contamination
- Ensure no metallic debris is inside the connectors near the terminal pins.
- Inspect the control solenoid valve assembly leads for contamination or metallic debris.
- Inspect for oil leakage from any of the gaskets.
