Transmission System Description and Operation: Notes
WARNING: This page is about a different variant/trim than selected.

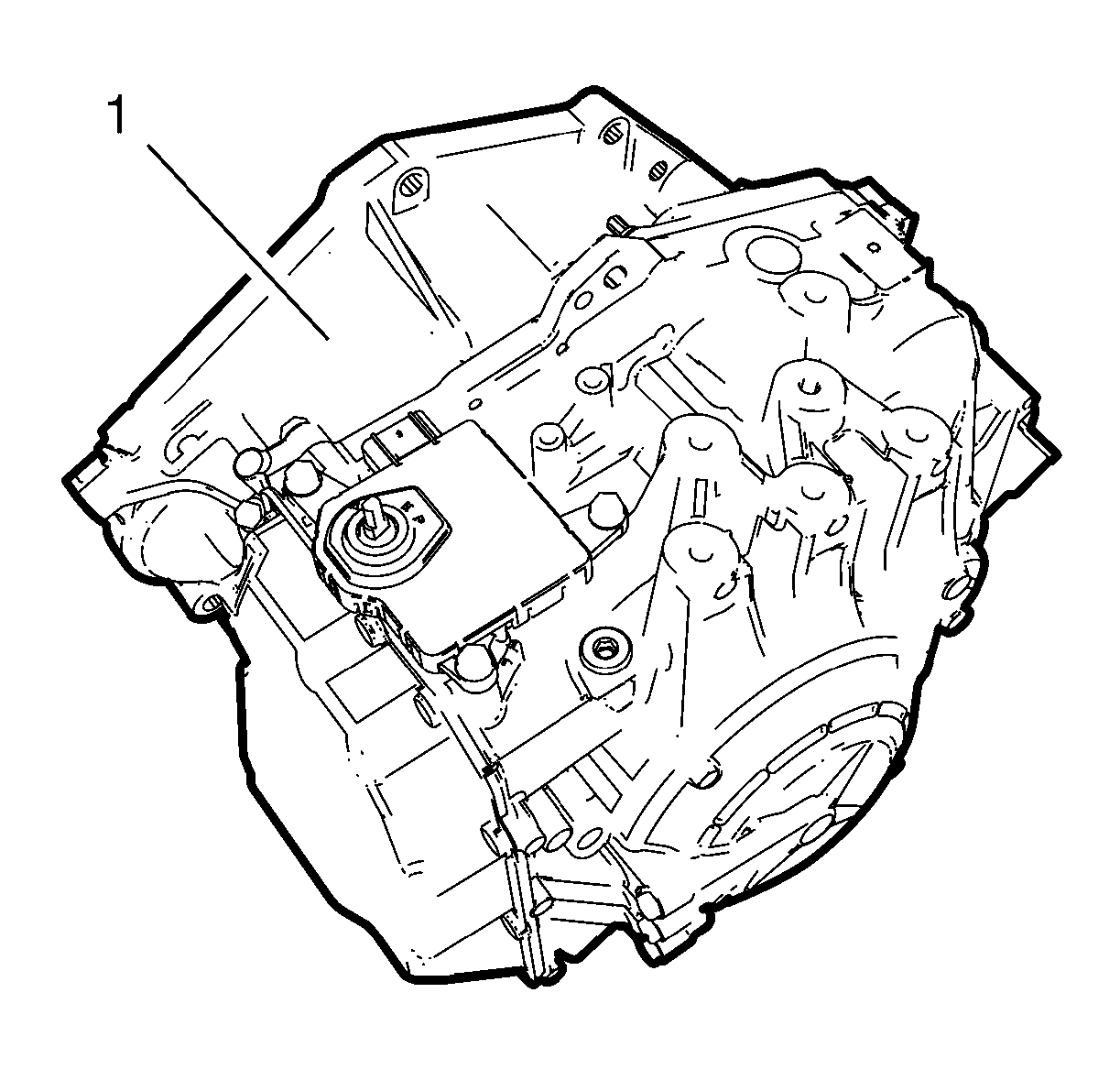

The AF40-6 automatic transmission (1) is an electronic 6-speed automatic transmission with lock-up. The transmission is mounted directly against the engine and has a final drive with integrated differential. The power unit is transverse mounted with all-wheel drive. Gear positions P-R-N-D are selected with the selector lever mounted in the centre console. Manual up/downshifting is possible.
Transmission functions can be divided into three parts:
- Mechanical
- Hydraulic
- Control system
