Overview SLT and SLU Solenoids
WARNING: This page is about a different variant/trim than selected.

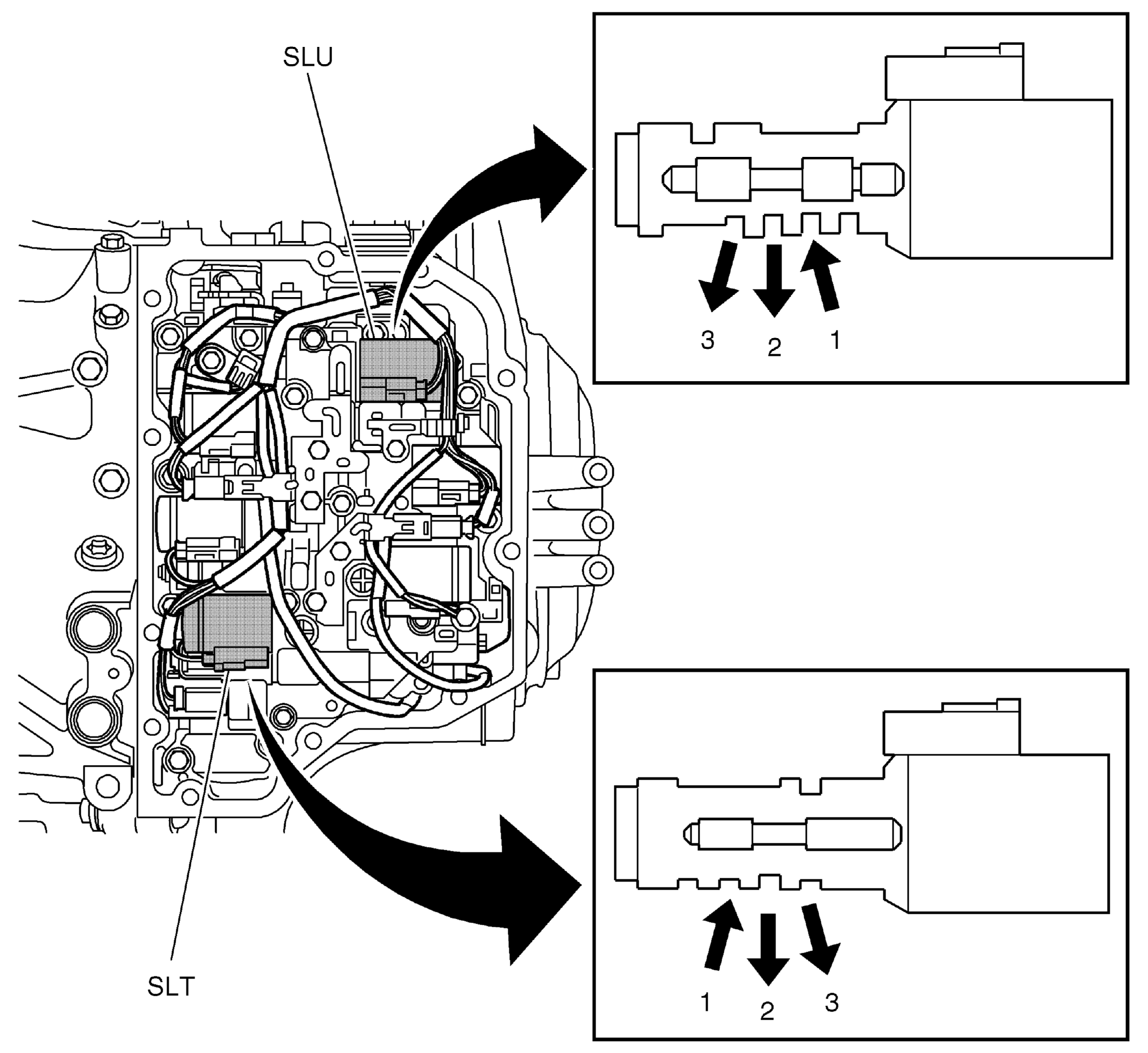

| Callout | Component Name |
|---|---|
| 1 | On |
| 2 | Off |
| 3 | Ex |
| slu | Solenoid Valve SLU |
| slt | Solenoid Valve SLT |
SLT and SLU Solenoids
| Abbreviation | Abbreviation Expanded | Task |
|---|---|---|
| SLT | Throttle linear solenoid | Regulates the system pressure. Also used to slip in B2, which does not have its own solenoid. The system pressure is regulated so that is not higher than is needed for any friction element in order to reduce energy loss. |
| SLU | Lock up linear solenoid | Regulates the pressure to the torque converter clutch. |
