Overview S1 and S2 Solenoids
WARNING: This page is about a different variant/trim than selected.

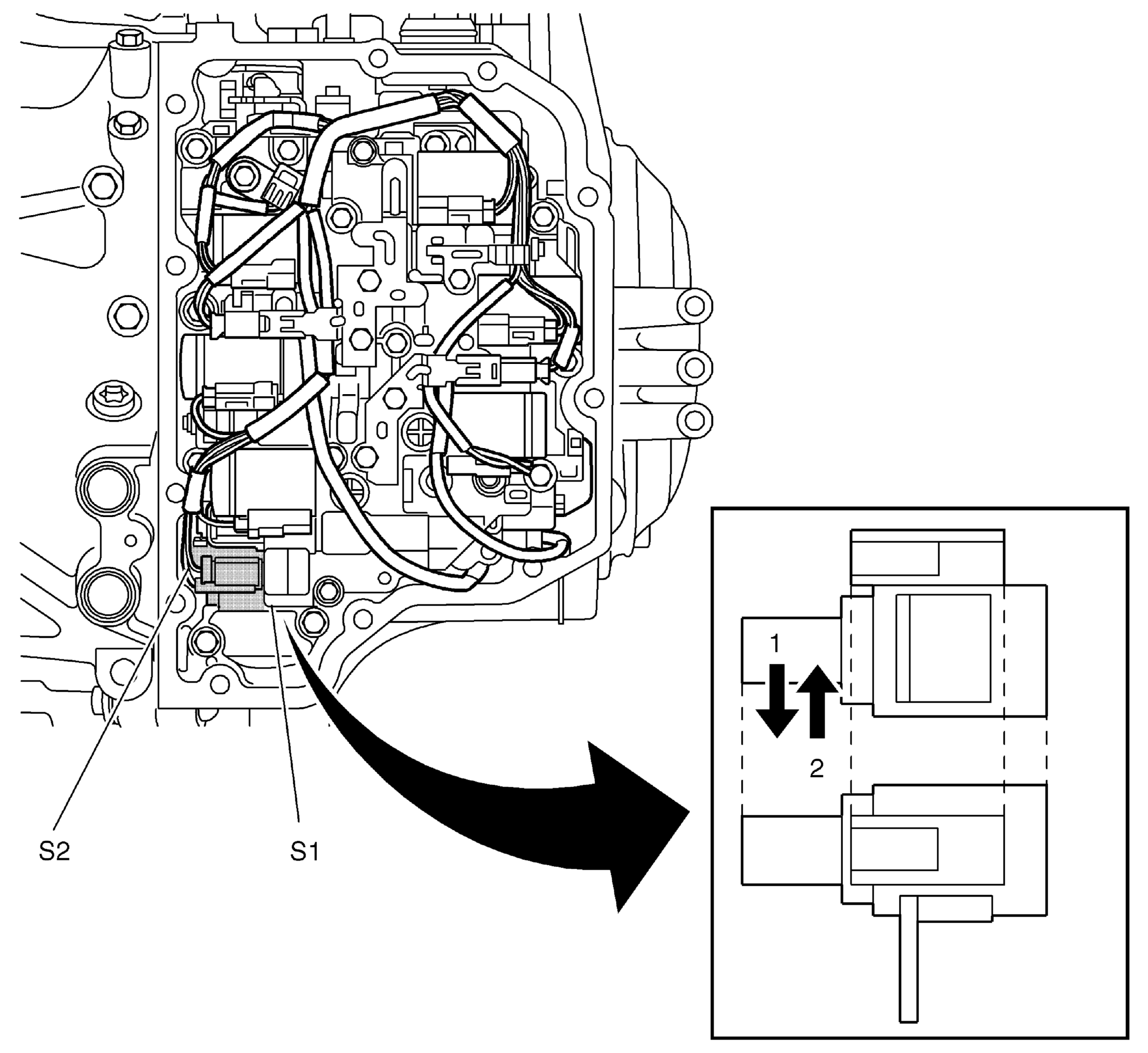

| Callout | Component Name |
|---|---|
| 1 | On |
| 2 | Off |
| s1 | Solenoid Valve S1 |
| s2 | Solenoid Valve S2 |
There are also 2 on/off-type solenoids. The following table shows these digital solenoids and their duties.
S1 and S2 Solenoids
| Abbreviation | Abbreviation Expanded | Task |
|---|---|---|
| S1 | Solenoid 1 | Pressure increase when slipping in C2. |
| S2 | Solenoid 2 | Pressurizing of brake B2 while engine braking in 1st gear. |
