Cooling System
WARNING: This page is about a different variant/trim than selected.

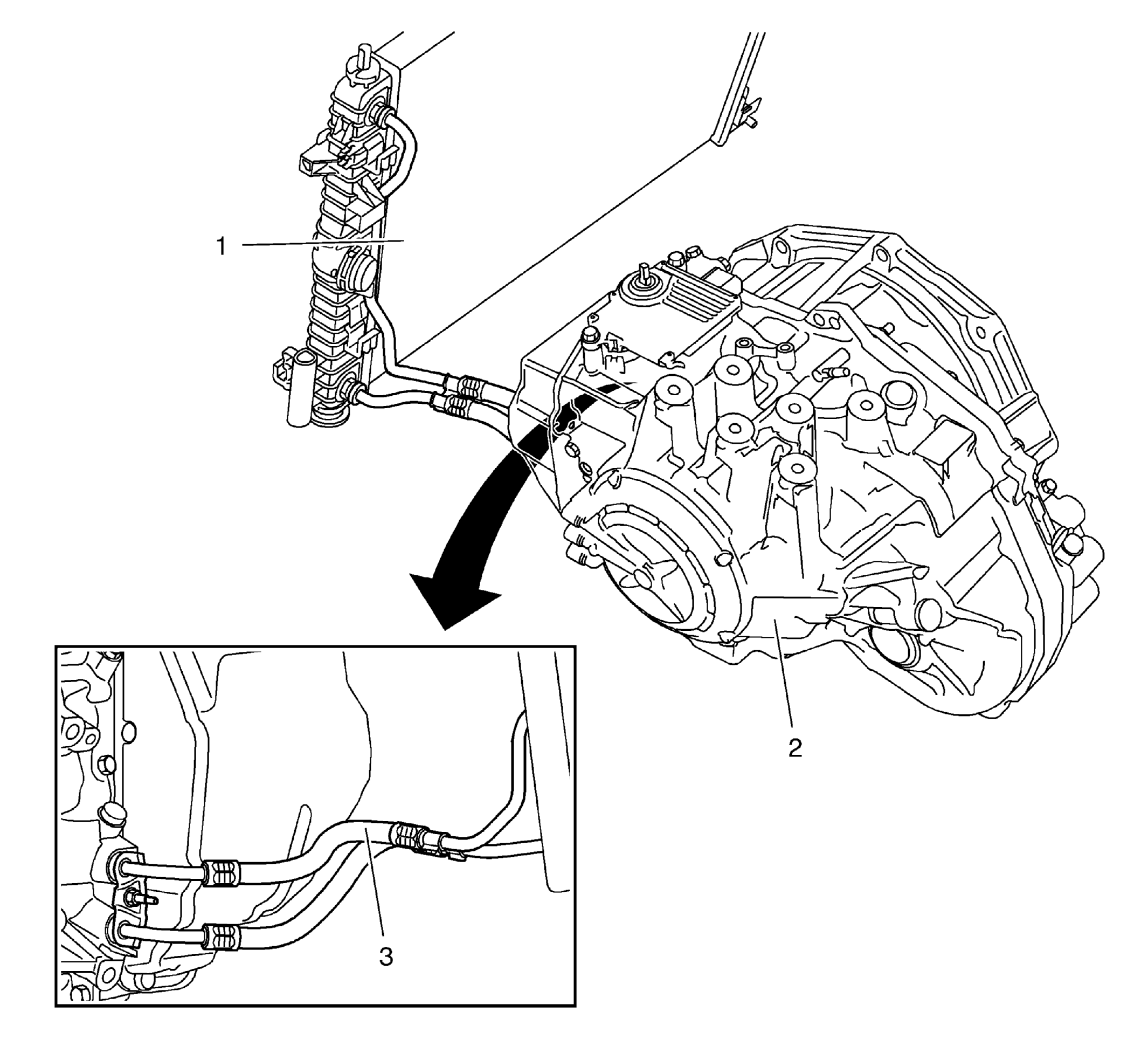

The automatic transmission (2) has an oil cooler integrated in the engine radiator (1) and constitutes one unit together with the transmission. Fluid is circulated by the transmission fluid pump and carried via hydraulic hoses (3) to the radiator and back to the transmission.
