Front Differential Carrier Bearing Installation (AWD)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

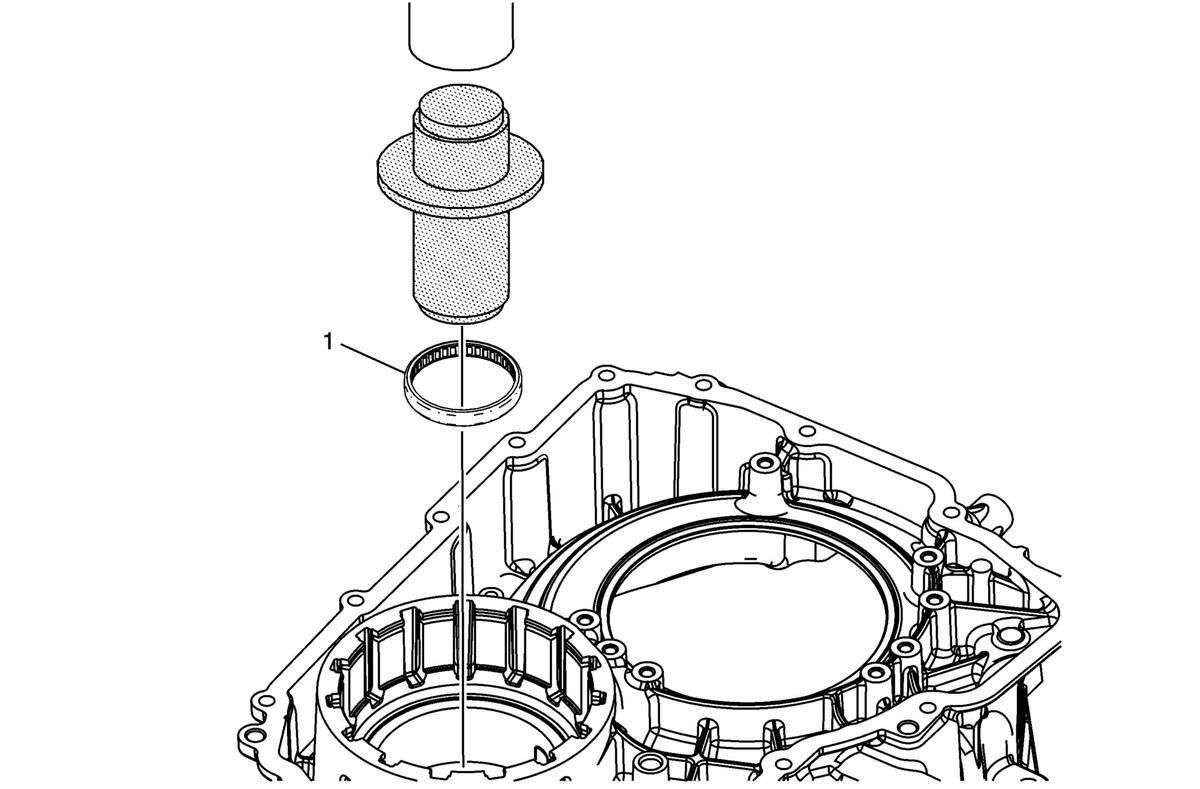

Fig 1: Front Differential Carrier Bearing (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Differential Carrier Bearing NOTE: Press the bearing until the tool stops against the housing to ensure the bearing is installed to the correct dimension. Special Tools DT 49831 Differential Bearing Remover/Installer (2 Pinion Blue) DT 50087 Differential Bearing Remover/Installer (4 Pinion Red)

Callout

Component Name

Front Differential Carrier Bearing

NOTE:

Press the bearing until the tool stops against the housing to ensure the bearing is installed to the correct dimension.

Special Tools

DT 49831 Differential Bearing Remover/Installer (2 Pinion Blue)
DT 50087 Differential Bearing Remover/Installer (4 Pinion Red)
