Control Valve Body Assembly Removal
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Body Assembly Removal

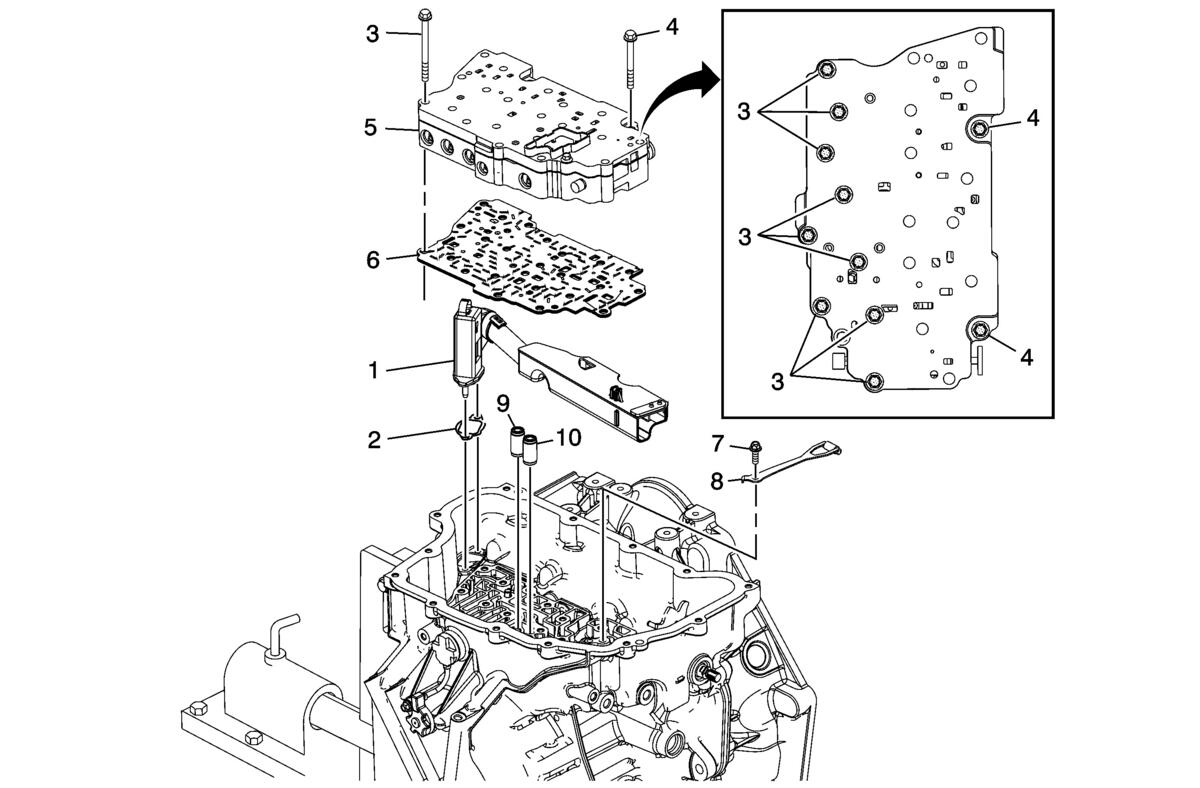

| Callout | Component Name |
|---|---|
| 1 | Fluid Level Control Valve |
| 2 | Fluid Level Control Valve Gasket |
| 3 | Control Valve Body Bolt M6 x 60 (Qty: 9) |
| 4 | Control Valve Body Bolt M6 x 53 (Qty: 2) |
| 5 | Control Valve Body Assembly |
| 6 | Control Valve Body Spacer Plate Assembly |
| 7 | Manual Shaft Detent Spring Bolt M6 x 16 (Qty: 1) |
| 8 | Manual Shaft Detent Lever Spring Assembly |
| 9 | 1-2-3-4 Clutch Fluid Passage Seal
NOTE:
Discard the seal. It is not reusable. |
| 10 | Low/Reverse Clutch Fluid Passage Seal
NOTE:
Discard the seal. It is not reusable. |
