Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the new O-ring seals for cracks, cuts or damage. Replace if necessary.

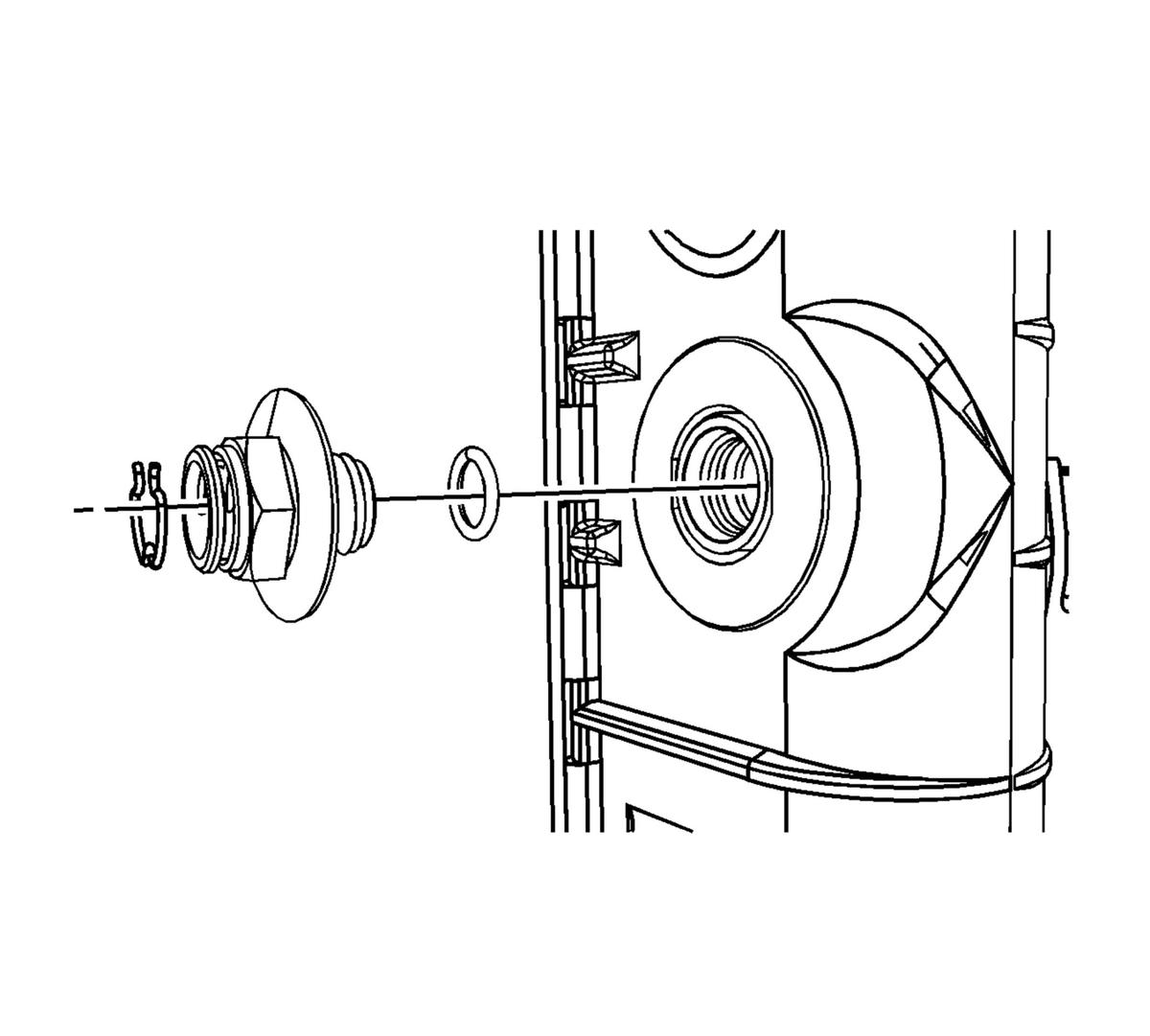

- Install the oil cooler fitting to the radiator and tighten to 20 N.m (15 lb ft).
- Install the transmission oil cooler pipes to the oil cooler fittings on the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- Fill the cooling system. Refer to Cooling System Draining and Filling .
- Adjust the transmission fluid level. Refer to Transmission Fluid Drain and Fill .
- Inspect for fluid leaks.
CAUTION:
Refer to Fastener Caution
NOTE:
The correct thread engagement is critical. Cross-threaded fittings can achieve proper tightness and still leak.
