Transmission Fluid Cooler Hose/Pipe Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

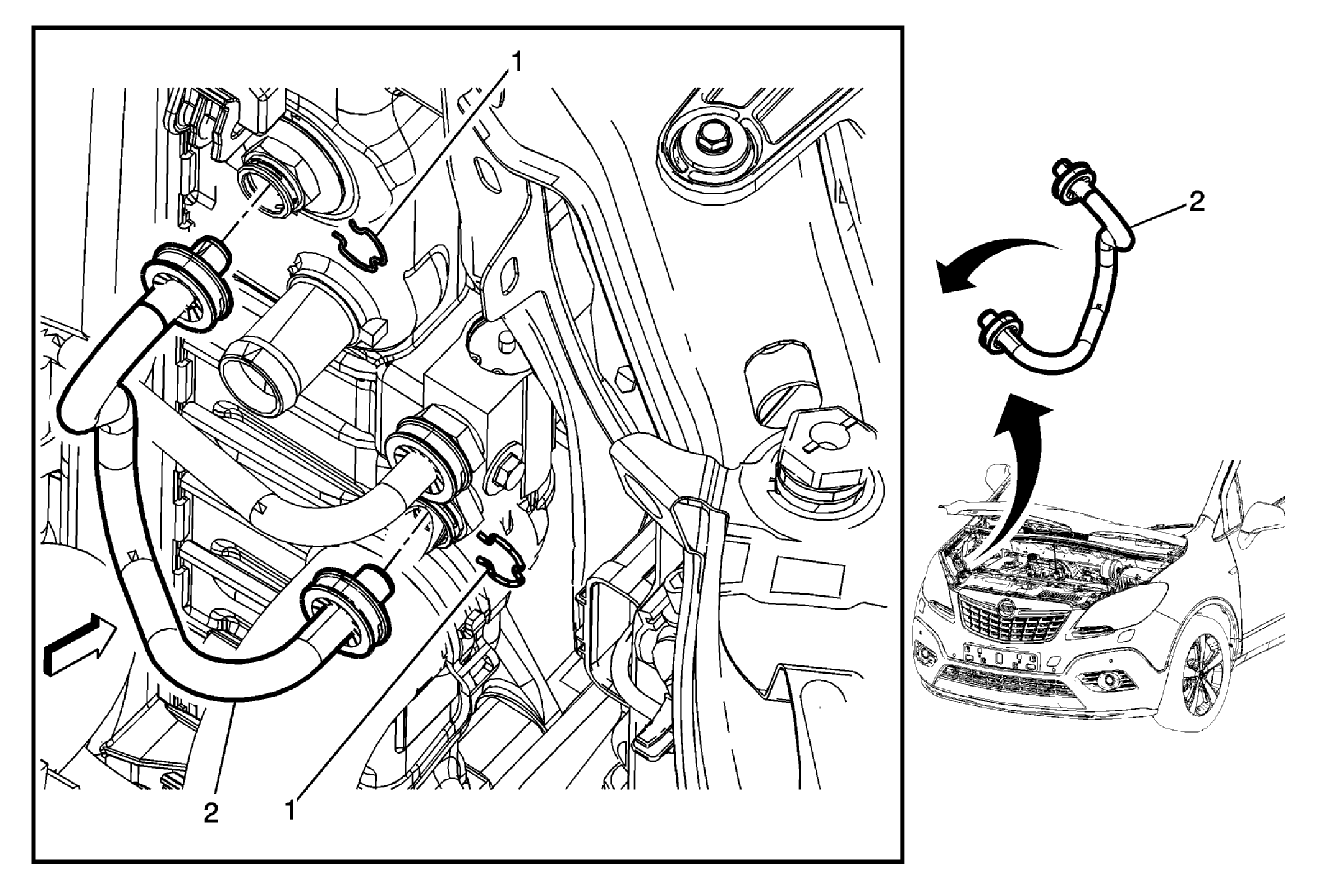

Fig 1: Transmission Fluid Cooler Hose/Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement . Remove the power steering pump, if equipped. Refer to Power Steering Pump Replacement .
1	Transmission Fluid Cooler Pipe Quick Disconnect Retaining Clip (Qty: 2) Procedure Remove the retaining clip from the quick connect fitting. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
2	Transmission Fluid Cooler Pipe Procedure Adjust the transmission fluid level. Refer to Transmission Fluid Level and Condition Check . Inspect for fluid leaks.

Callout

Component Name

Preliminary Procedures

Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
Remove the power steering pump, if equipped. Refer to Power Steering Pump Replacement .

Transmission Fluid Cooler Pipe Quick Disconnect Retaining Clip (Qty: 2)
Procedure
Remove the retaining clip from the quick connect fitting. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

Transmission Fluid Cooler Pipe

Procedure

Adjust the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
Inspect for fluid leaks.
