Section 95 (Seat Heating System And Seat Cooling System)
>>
Schematic Wiring Diagrams
>>
Heated/Cooled Seat Schematics (Trax)
>>
Heated Seat Schematics (Trax with KA1)
Heated Seat Schematics (Trax with KA1)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

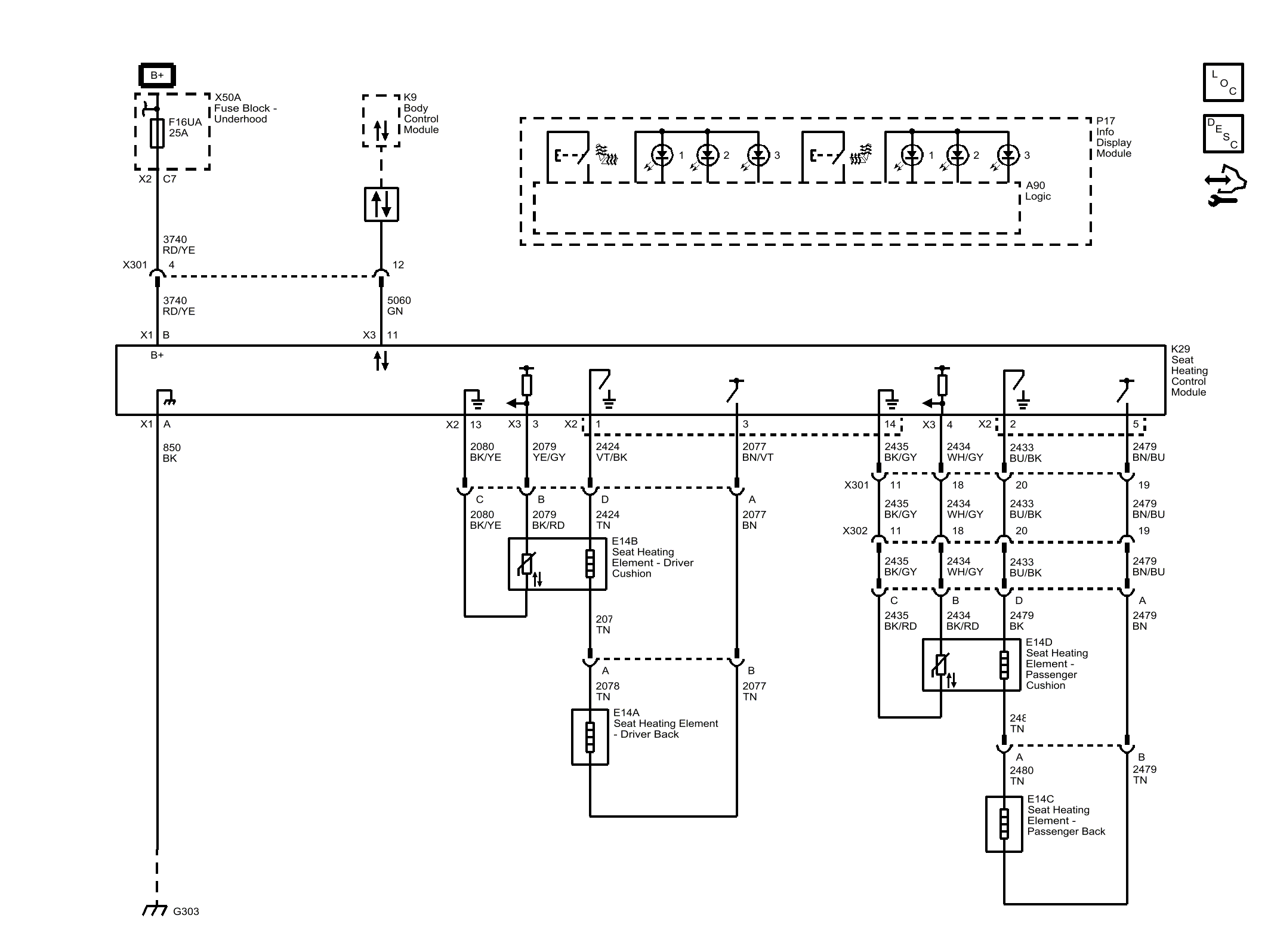

Fig 1: Heated Seat Schematics (Trax with KA1)
Courtesy of GENERAL MOTORS COMPANY
