Roof Panel Joint Front Finish Molding Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

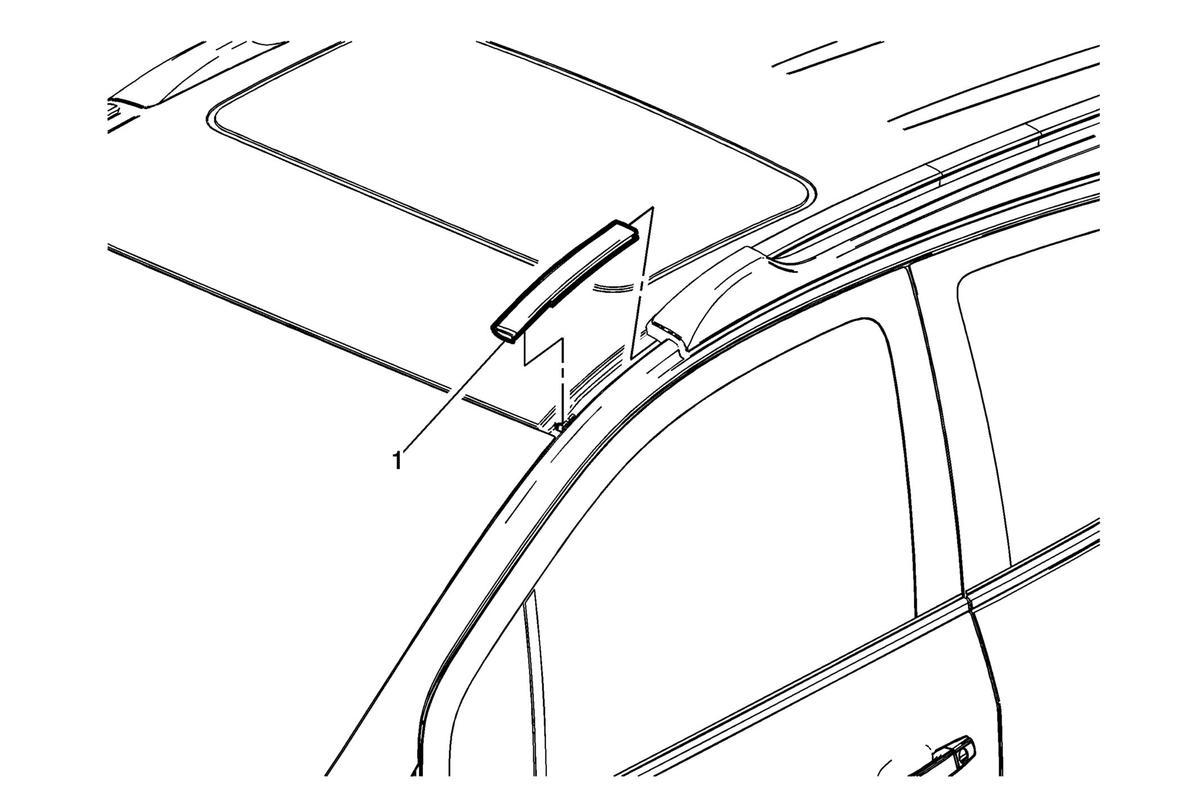

Fig 1: Roof Panel Joint Front Finish Molding (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Roof Panel Joint Front Finish Molding Procedure Start at the front edge of the roof panel joint front finish molding and carefully pry the molding from the roof panel integral joint retaining clip. Slide the roof panel joint front finish molding out of the channel and from under the luggage carrier side rail. Slide the roof panel joint front finish molding into the channel and under the luggage carrier side rail. Position the front edge of the roof panel joint front finish molding to the edge of the spoiler and press into the integral joint retaining clip. Replace the retaining clips if damaged. Refer to Roof Panel Joint Finish Molding Clip Replacement .

Callout

Component Name

Roof Panel Joint Front Finish Molding

Procedure

Start at the front edge of the roof panel joint front finish molding and carefully pry the molding from the roof panel integral joint retaining clip.
Slide the roof panel joint front finish molding out of the channel and from under the luggage carrier side rail.
Slide the roof panel joint front finish molding into the channel and under the luggage carrier side rail.
Position the front edge of the roof panel joint front finish molding to the edge of the spoiler and press into the integral joint retaining clip.
Replace the retaining clips if damaged. Refer to Roof Panel Joint Finish Molding Clip Replacement .
