Rear Bumper Fascia Tow Eye Access Hole Cover Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

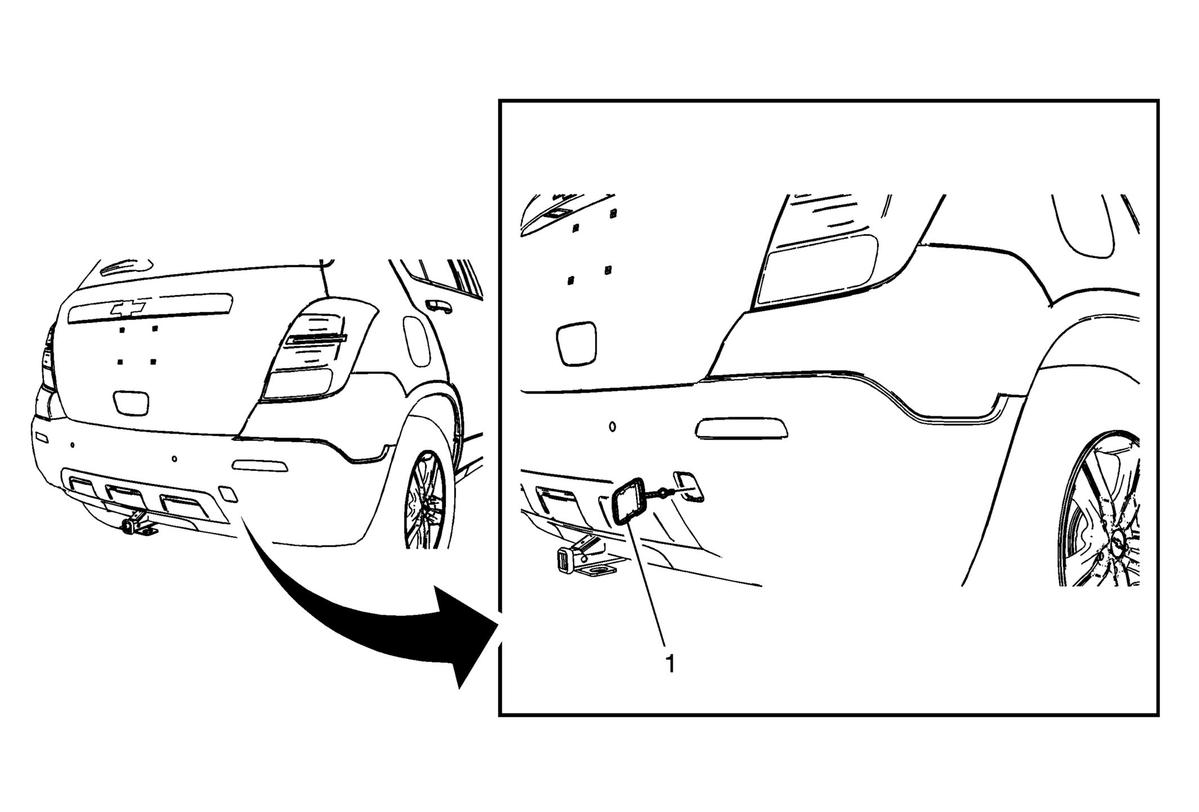

Fig 1: Rear Bumper Fascia Tow Eye Access Hole Cover
GM3273195Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Bumper Fascia Rear Tow Eye Access Hole Cover

Procedure

  1. Using a small plastic flat-bladed tool, release the bottom locking tab and pull out and down from the rear bumper fascia.
  2. Using needle nose pliers release the v-notch hook from the retainer hole in the rear bumper fascia and remove.
