Liftgate Outside Handle Emblem Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

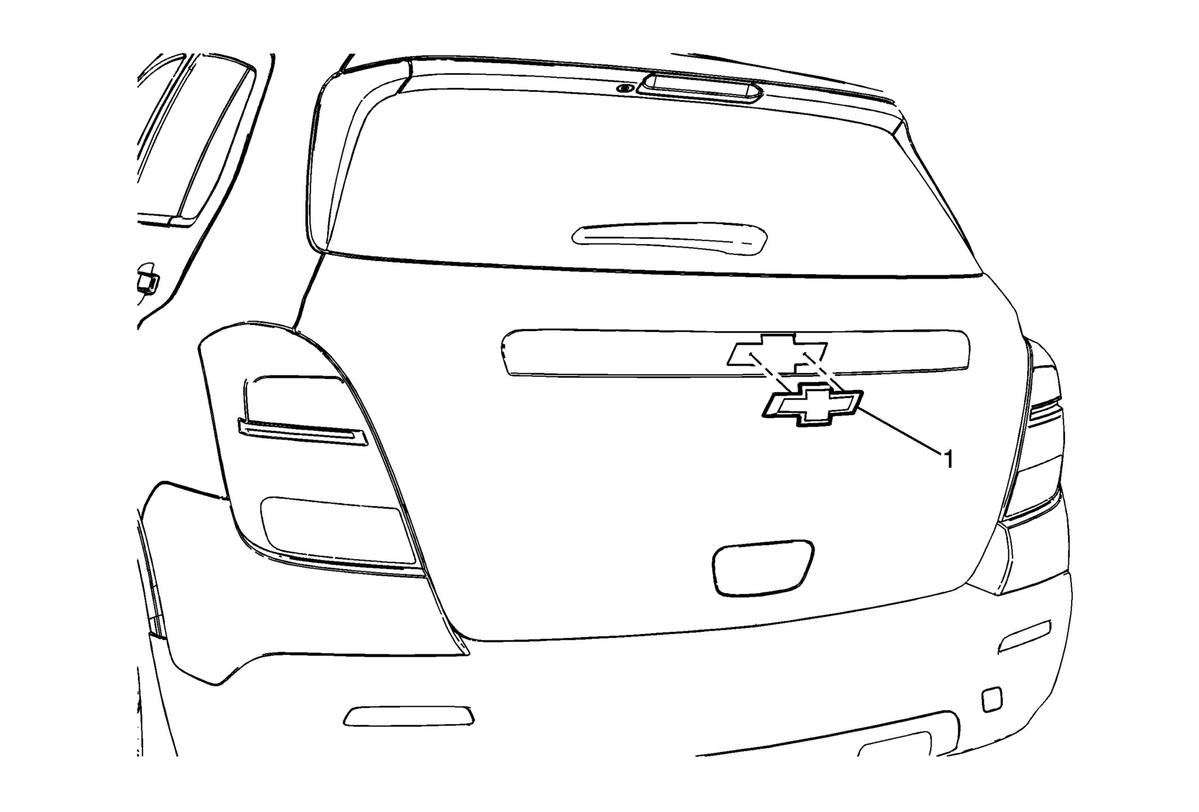

Fig 1: Liftgate Outside Handle Emblem (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate Outside Handle Emblem CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure Using a heat gun in a circular motion, warm the liftgate outside handle emblem in order to help remove the adhesive tape backing. Clean any left over tape residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Peel the adhesive tape liner from the backside of the liftgate outside handle emblem before applying to the liftgate. Align the two alignment pins to the liftgate. Using a clean cotton towel and hand pressure, wet out the entire liftgate outside handle emblem to the liftgate.

Callout

Component Name

Liftgate Outside Handle Emblem

CAUTION:

Refer to Exterior Trim Emblem Removal Caution .

Procedure

Using a heat gun in a circular motion, warm the liftgate outside handle emblem in order to help remove the adhesive tape backing.
Clean any left over tape residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water.
Peel the adhesive tape liner from the backside of the liftgate outside handle emblem before applying to the liftgate.
Align the two alignment pins to the liftgate.
Using a clean cotton towel and hand pressure, wet out the entire liftgate outside handle emblem to the liftgate.
