Front Upper Grille Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

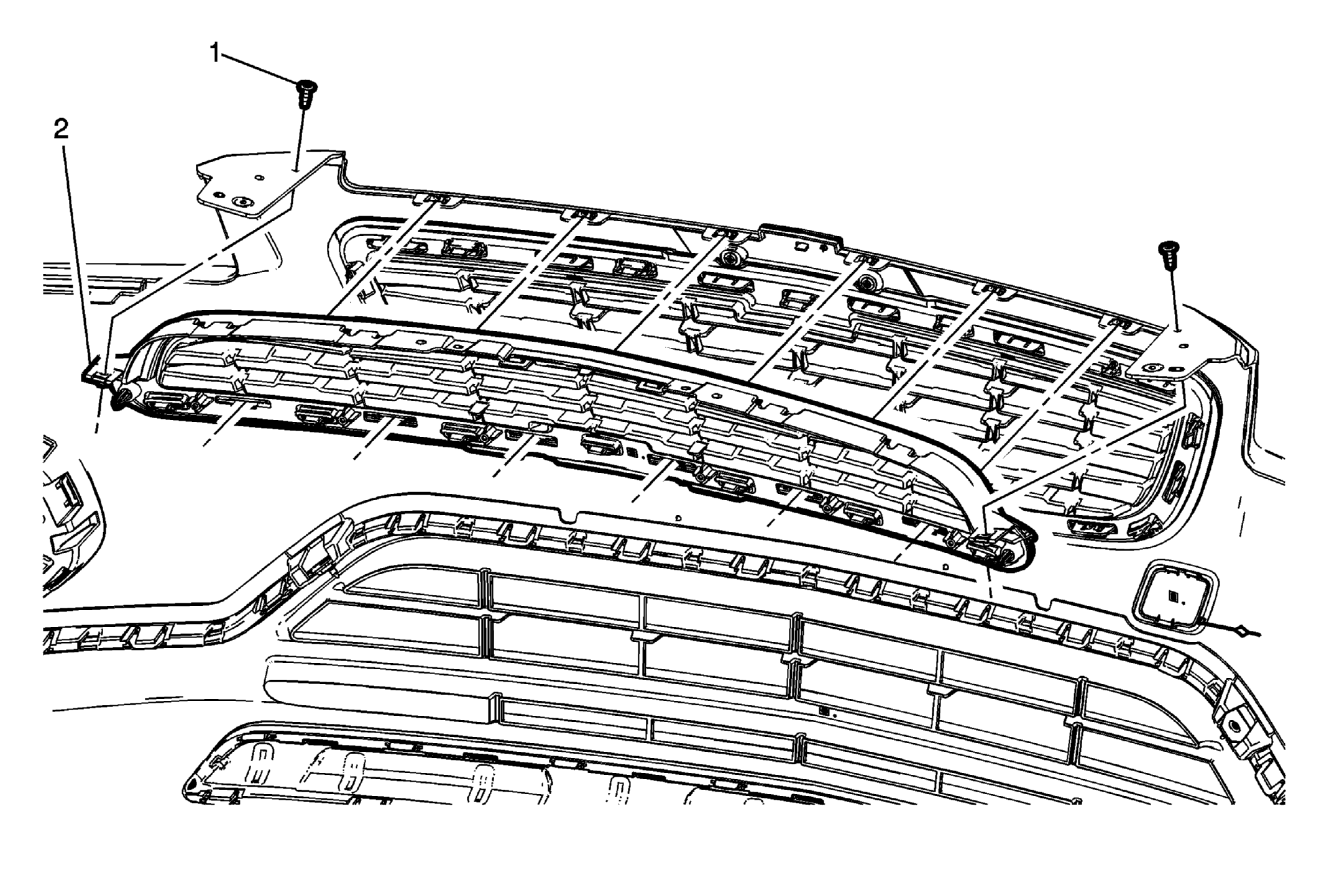

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front grille support reinforcement. Refer to Front Grille Support Reinforcement Replacement (Trax) . |
|
| 1 | Radiator Upper Grille Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Radiator Upper Grille Procedure Use a flat bladed tool to release the 6 locking tabs and pull the radiator upper grille from the front bumper fascia. |
