Front Grille Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

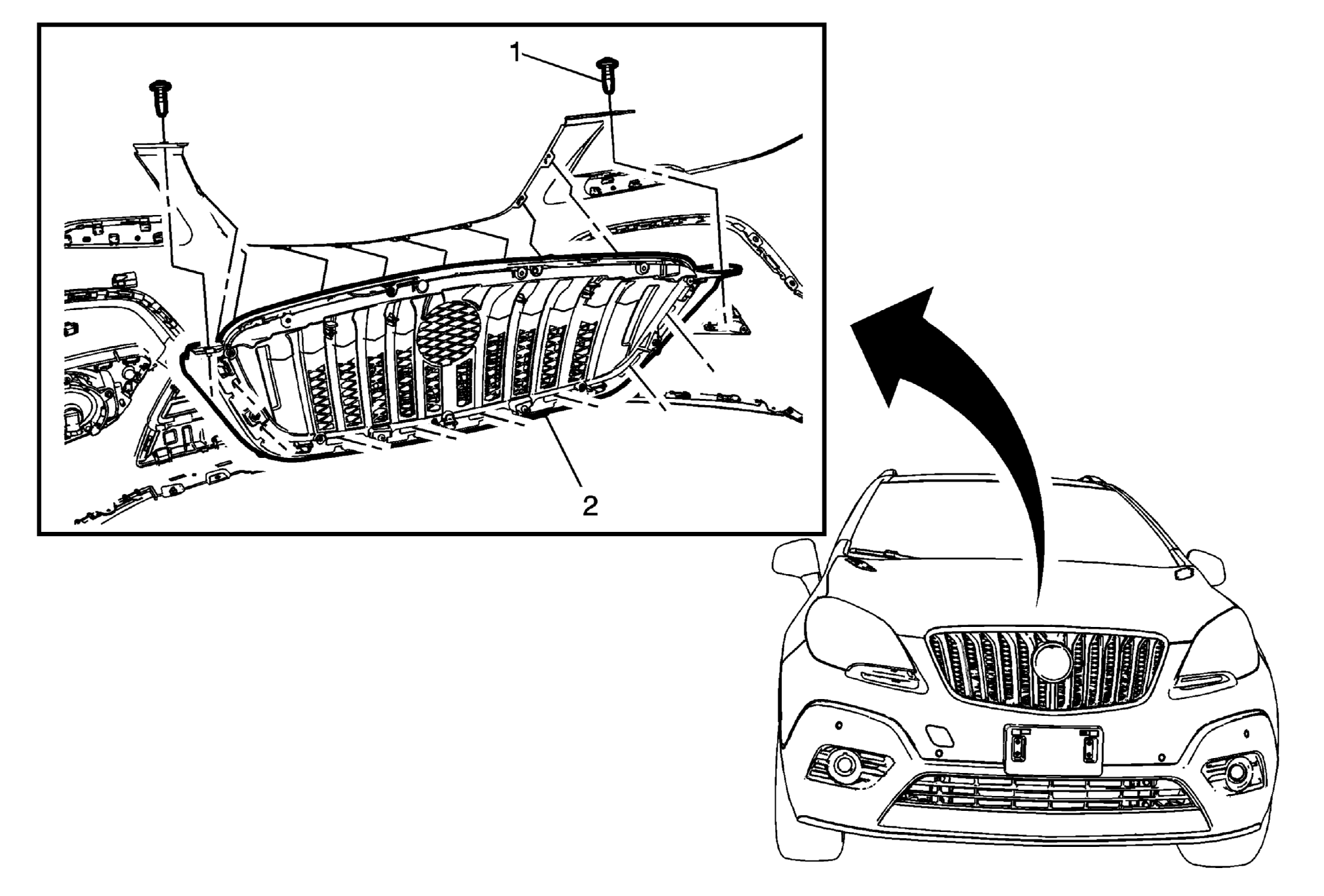

Fig 1: Front Grille (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Encore) .
1	Radiator Grille Screw (Qty 2) CAUTION: Refer to Fastener Caution .
2	Radiator Grille Procedure Place the bumper fascia face down on a clean protected surface. Using a suitable trim tool, release the eight locking tabs while carefully pulling the radiator grille from the front fascia. NOTE: Each individual front bumper fascia tab must be secure to each slot in the radiator grille prior to re-assemble of the fascia to the vehicle.
