Front Bumper Lower Fascia Center Grille Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

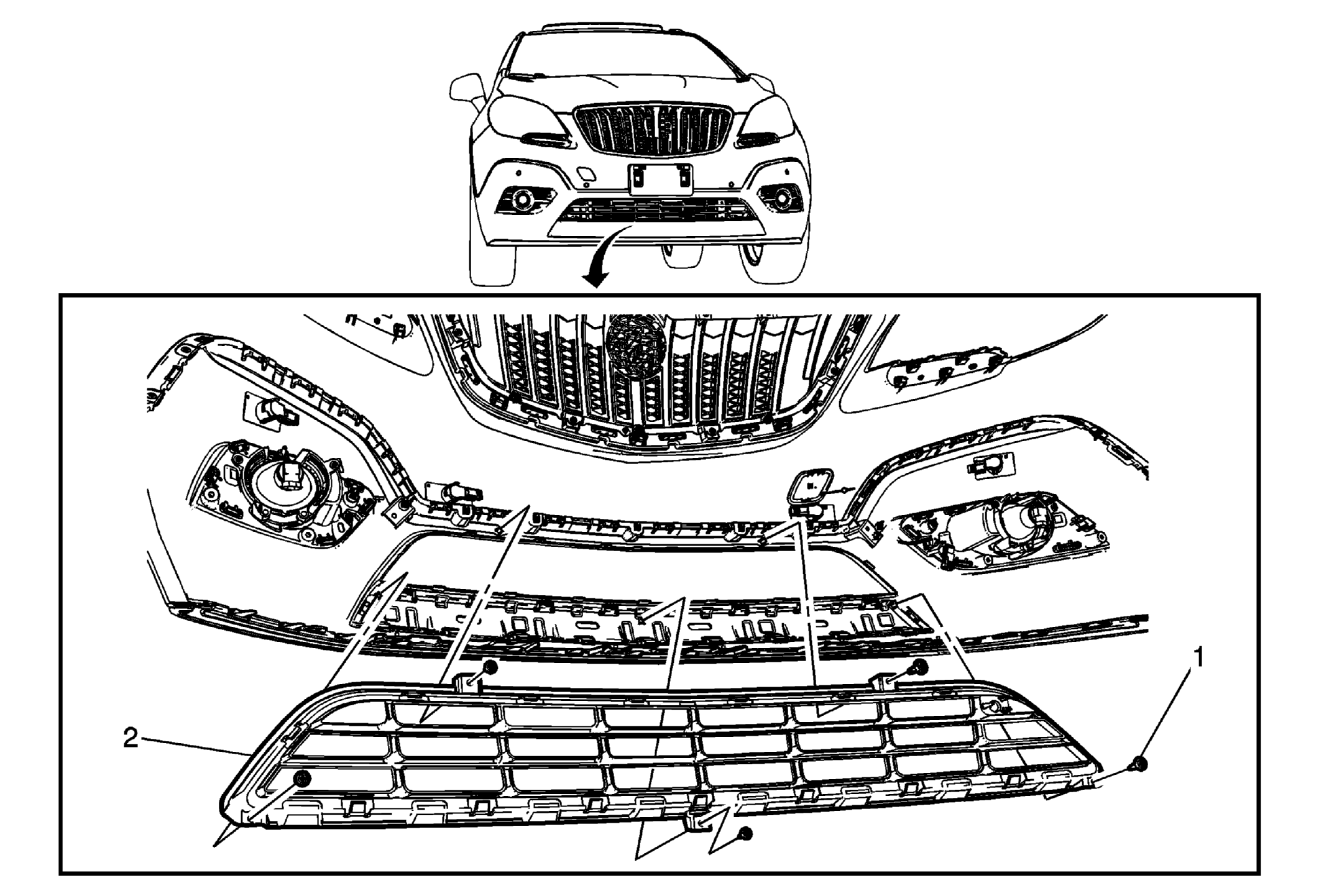

Fig 1: Front Bumper Lower Fascia Center Grille (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Encore) .
1	Front Bumper Lower Fascia Center Grille Screws (Qty: 5) CAUTION: Refer to Fastener Caution .
2	Front Bumper Lower Fascia Center Grille Procedure Disconnect the electrical connector. Release the fifteen locking tabs and pull the front bumper lower fascia center grille from the front bumper fascia. If not damaged, transfer the ambient temperature sensor to the new front bumper lower fascia center grille.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Encore) .

Front Bumper Lower Fascia Center Grille Screws (Qty: 5)

CAUTION:

Refer to Fastener Caution .

Front Bumper Lower Fascia Center Grille

Procedure

Disconnect the electrical connector.
Release the fifteen locking tabs and pull the front bumper lower fascia center grille from the front bumper fascia.
If not damaged, transfer the ambient temperature sensor to the new front bumper lower fascia center grille.
