Section 92 (Cruise Control System)
>>
Schematic Wiring Diagrams
>>
Cruise Control Wiring Schematics (Trax)
>>
Cruise Control (Trax with K34)
Cruise Control (Trax with K34)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

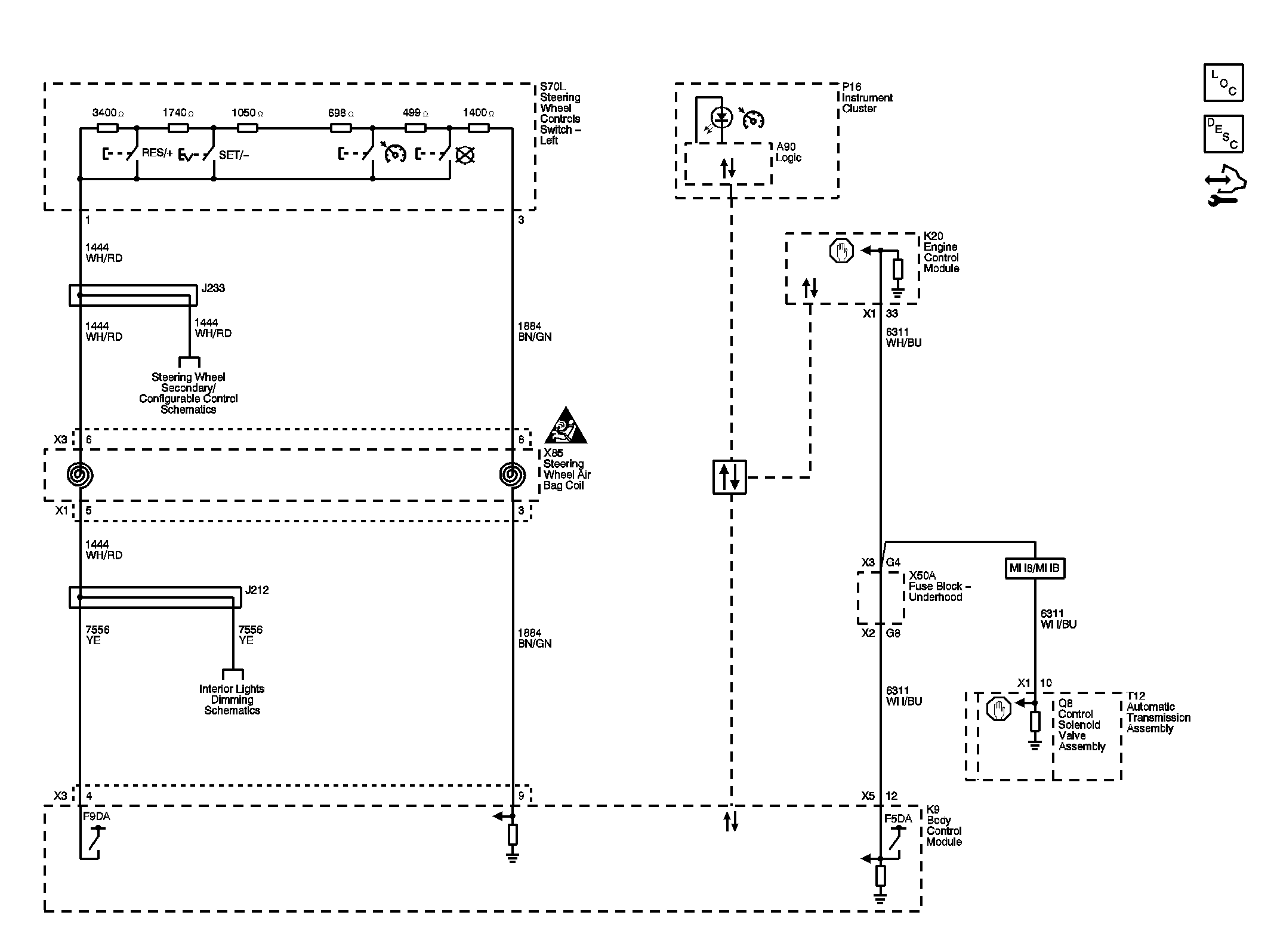

Fig 1: Cruise Control (Trax with K34)
Courtesy of GENERAL MOTORS COMPANY
