Right Rear of Engine Components (Trax with LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

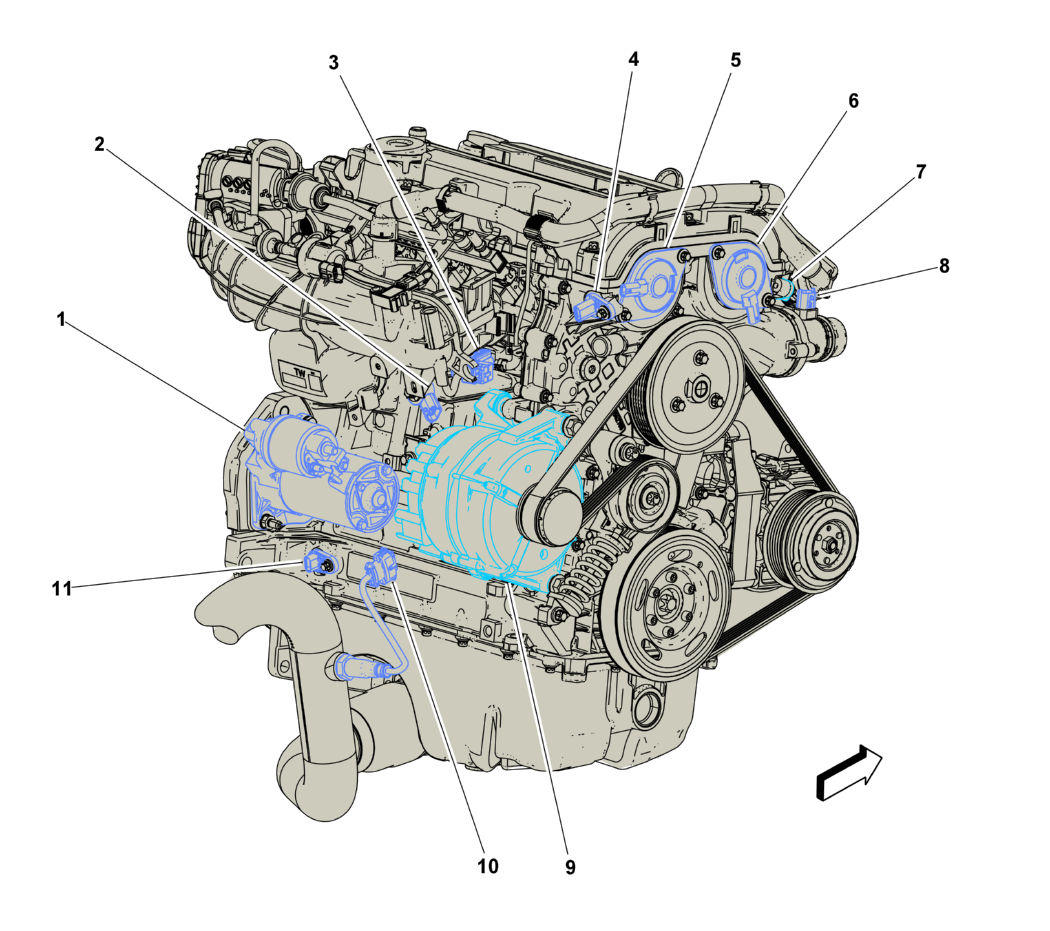

Fig 1: Right Rear of Engine Components (Trax with LUV)

Courtesy of GENERAL MOTORS COMPANY

Items
1: M64 Starter Motor M64 Starter Motor X1 M64 Starter Motor X2
2: B68 Knock Sensor B68 Knock Sensor (2H0/LFH)B68 Knock Sensor (LUV)
3: Q40 Turbocharger Bypass Solenoid Valve (LUV) Q40 Turbocharger Bypass Solenoid Valve
4: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (2H0/LFH)B23F Camshaft Position Sensor - Intake (LUV)
5: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (2H0/LFH)
6: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (2H0/LFH)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUV)
7: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust
8: E41 Engine Coolant Thermostat Heater E41 Engine Coolant Thermostat Heater (2H0)E41 Engine Coolant Thermostat Heater (LUV)
9: G13 Generator G13 Generator X1
10: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2
11: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (2H0/LFH)
