Manual Transmission Components (Trax with M4P)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

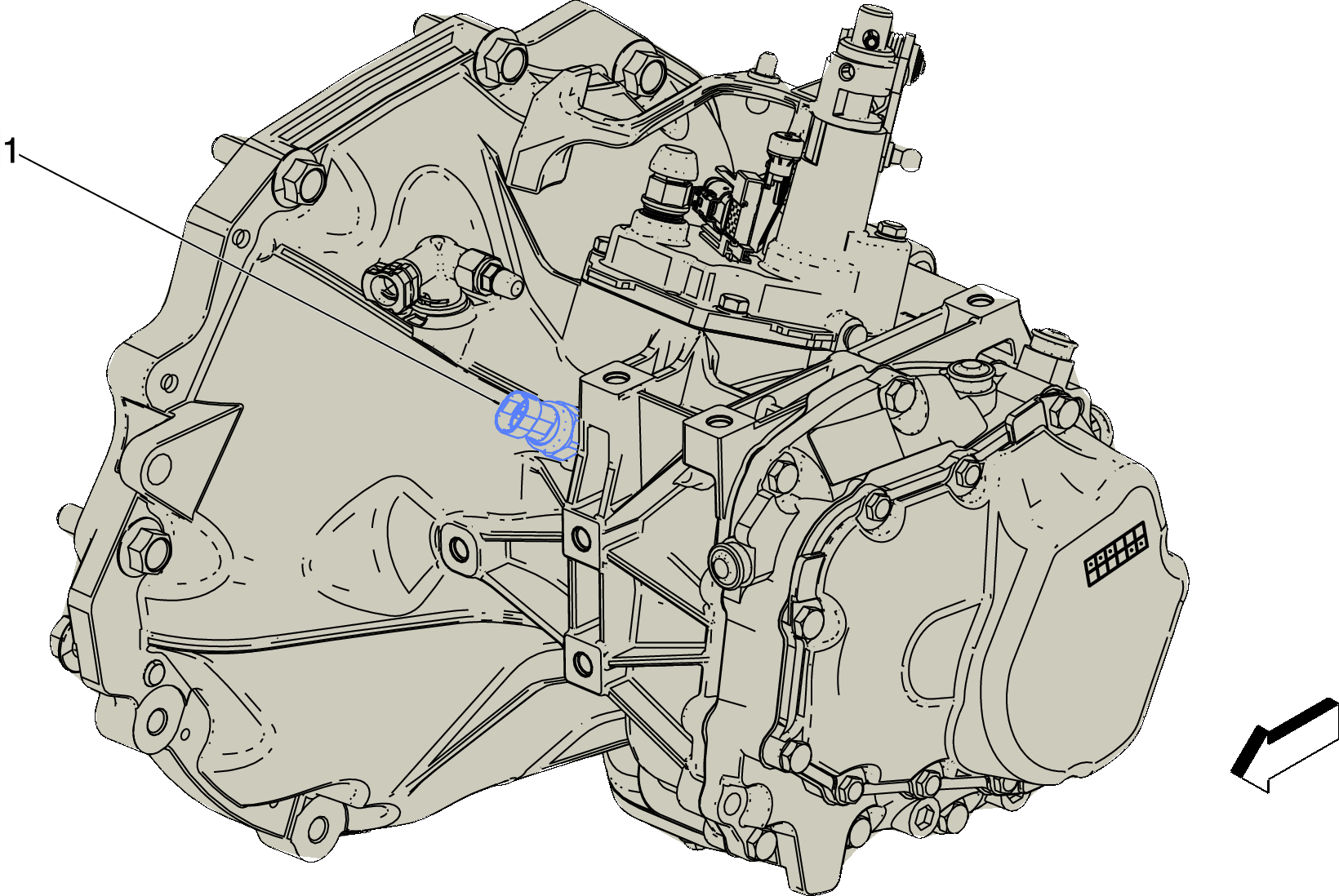

Fig 1: Manual Transmission Components (Trax with M4P)
GM2910264Courtesy of GENERAL MOTORS COMPANY
Items
1: B16 Backup Lamp Switch (M4P or MR5) B16 Backup Lamp Switch (2H0)B16 Backup Lamp Switch (LUV)
