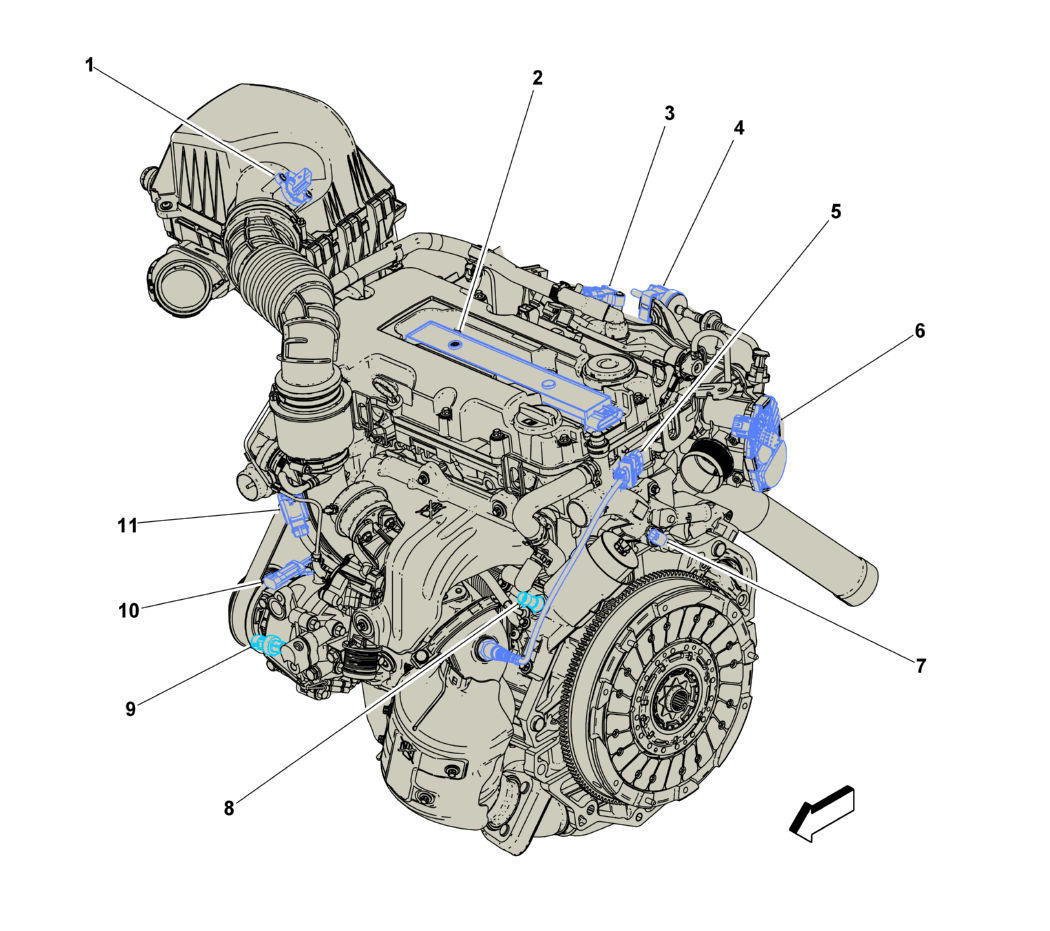

Left Front of Engine Components (Trax with LUV)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: B75C Multifunction Intake Air Sensor (LUV) B75C Multifunction Intake Air Sensor (LUV) |
| 2: K35 Ignition Coil Module K35 Ignition Coil Module (2H0)K35 Ignition Coil Module (LUV) |
| 3: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 4: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 5: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (2H0/LFH)B52A Heated Oxygen Sensor 1 (LUV) |
| 6: Q38 Throttle Body Q38 Throttle Body |
| 7: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 8: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (2H0/LFH) |
| 9: B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor |
| 10: Q2 A/C Compressor Clutch (C60) Q2 A/C Compressor Clutch |
| 11: Q42 Turbocharger Wastegate Solenoid Valve (LUV) Q42 Turbocharger Wastegate Solenoid Valve |
