Left Front of Engine Components (Trax with 2H0)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

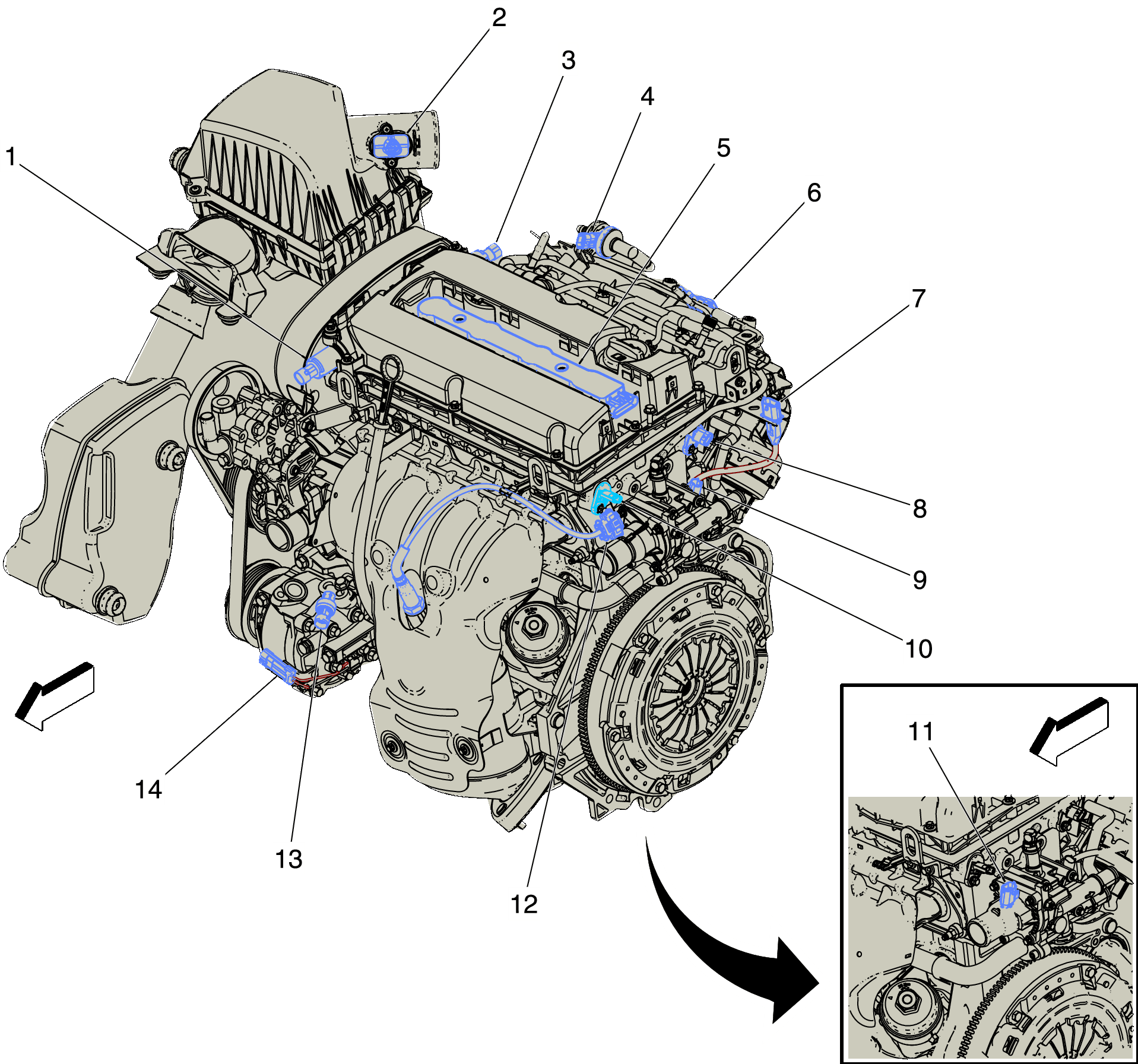

Fig 1: Left Front of Engine Components (Trax with 2H0)

Courtesy of GENERAL MOTORS COMPANY

Items
1: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (2H0/LFH)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUV)
2: B75B Mass Air Flow/Intake Air Temperature Sensor (2H0) B75C Multifunction Intake Air Sensor (2H0/LFH)
3: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (2H0/LFH)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LUV)
4: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
5: K35 Ignition Coil Module K35 Ignition Coil Module (2H0)K35 Ignition Coil Module (LUV)
6: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor
7: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (2H0/LFH)B26 Crankshaft Position Sensor (LUV)
8: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (2H0/LFH)B23F Camshaft Position Sensor - Intake (LUV)
9: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor
10: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust
11: E41 Engine Coolant Thermostat Heater E41 Engine Coolant Thermostat Heater (2H0)E41 Engine Coolant Thermostat Heater (LUV)
12: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (2H0/LFH)B52A Heated Oxygen Sensor 1 (LUV)
13: B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor
14: Q2 A/C Compressor Clutch (C60) Q2 A/C Compressor Clutch
