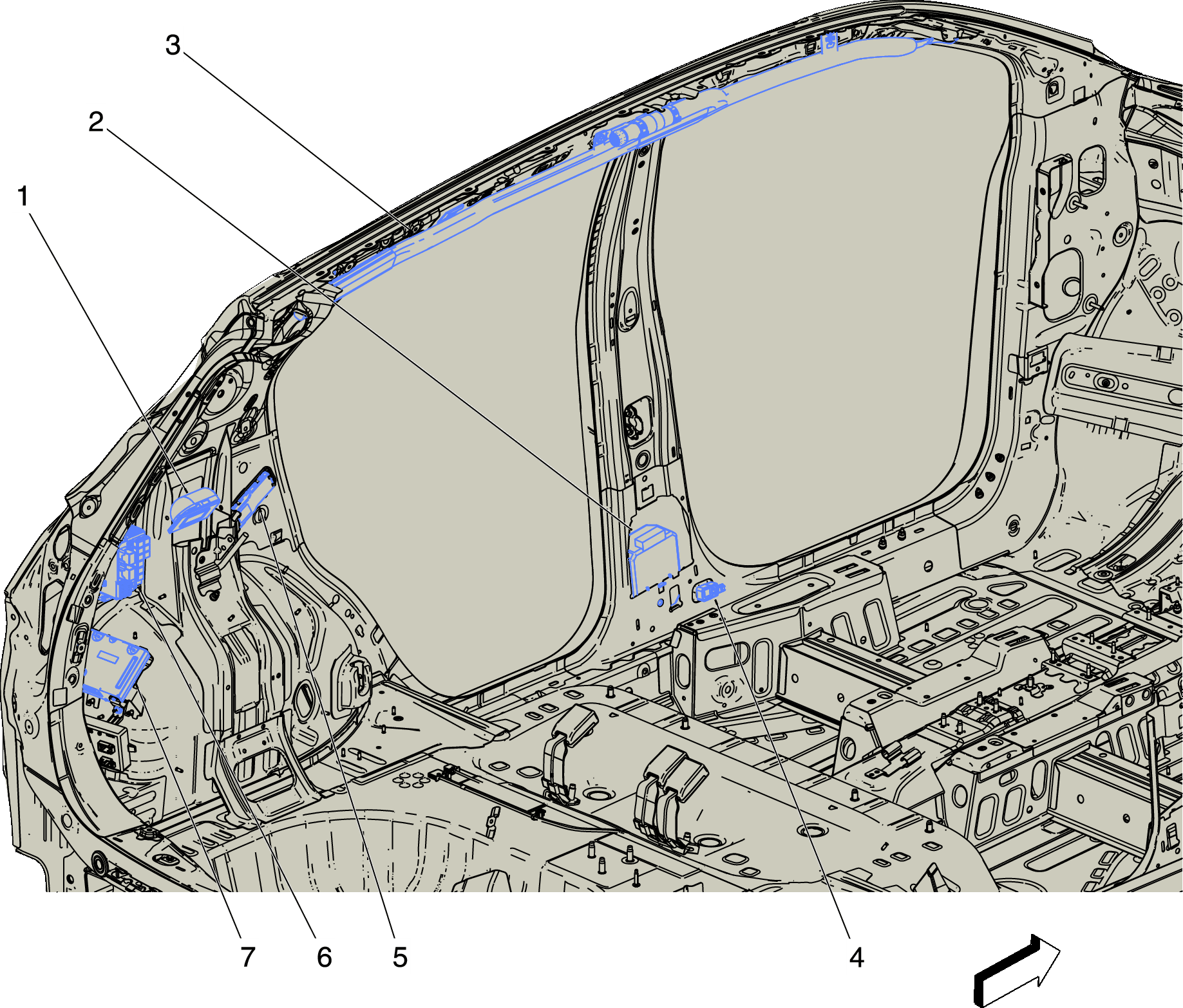

Left Side of Passenger Compartment Components (Trax, 2 of 2)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: E8S Rear Compartment Courtesy Lamp E8S Rear Compartment Courtesy Lamp |
| 2: F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver |
| 3: F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left |
| 4: B63L Side Impact Sensor - Left (AYC/ADL) B63L Side Impact Sensor - Left |
| 5: K77 Remote Control Door Lock Receiver K77 Remote Control Door Lock Receiver (MAH/MBC) |
| 6: X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body Wire Entry |
| 7: T6 Power Inverter Module (KI6) T6 Power Inverter Module |
