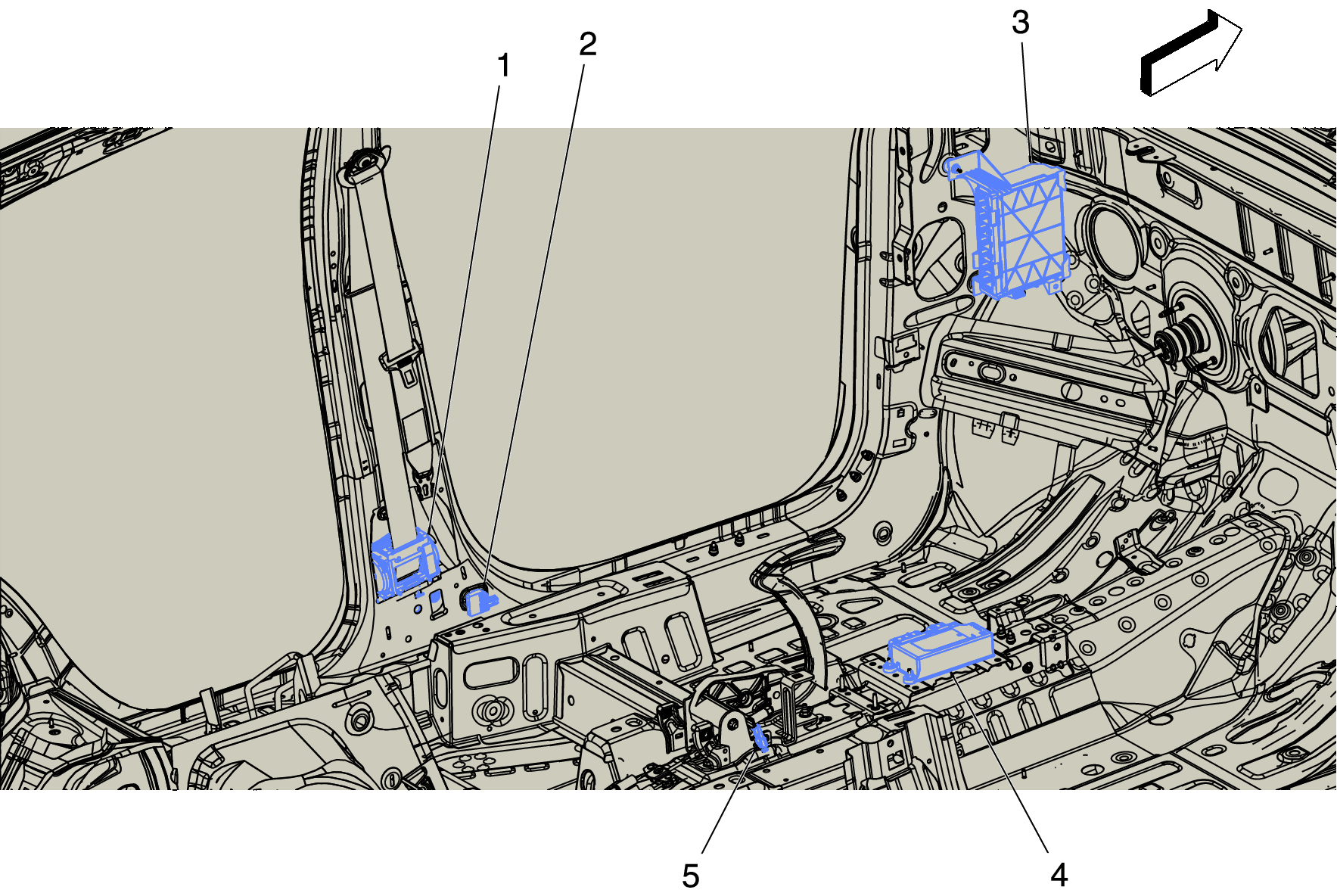

Left Side of Passenger Compartment Components (Trax, 1 of 2)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver |
| 2: B63L Side Impact Sensor - Left (AYC/ADL) B63L Side Impact Sensor - Left |
| 3: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 4: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X2 (ADL-A69)K36 Inflatable Restraint Sensing and Diagnostic Module X2K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AYC-UH5)K36 Inflatable Restraint Sensing and Diagnostic Module X1 (AY0)K36 Inflatable Restraint Sensing and Diagnostic Module X1 ((ADL/AYC)-C99)K36 Inflatable Restraint Sensing and Diagnostic Module X1 (AYF) |
| 5: B80 Park Brake Switch B80 Park Brake Switch |
