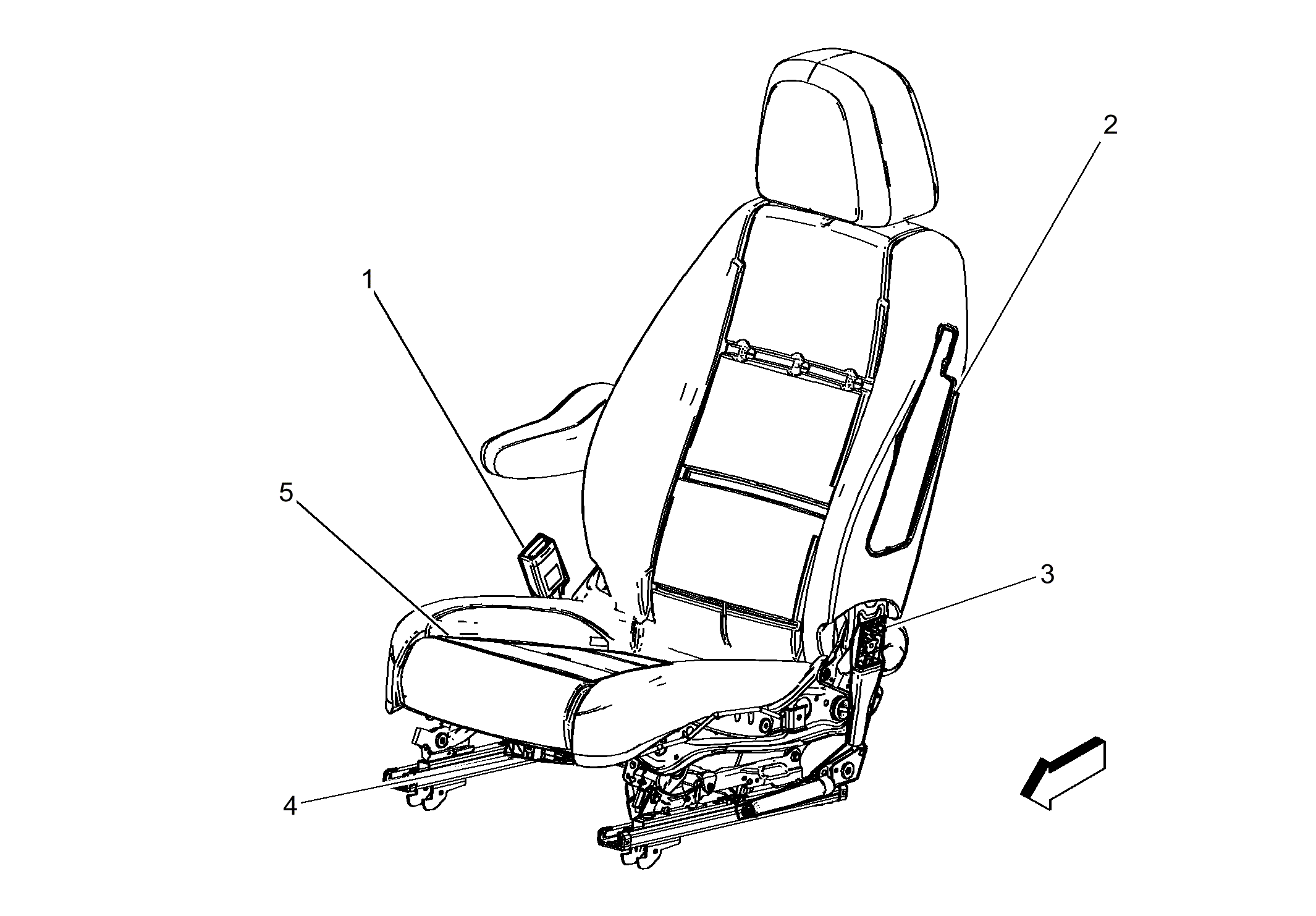

Driver Seat Components (Trax without AG9)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: B153D Seat Belt Buckle - Driver B153D Seat Belt Buckle - Driver |
| 2: F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver |
| 3: F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver |
| 4: K29 Seat Heating Control Module (KA1) K29 Seat Heating Control Module X1K29 Seat Heating Control Module X2K29 Seat Heating Control Module X3 |
| 5: E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion |
