Steering Wheel Components (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

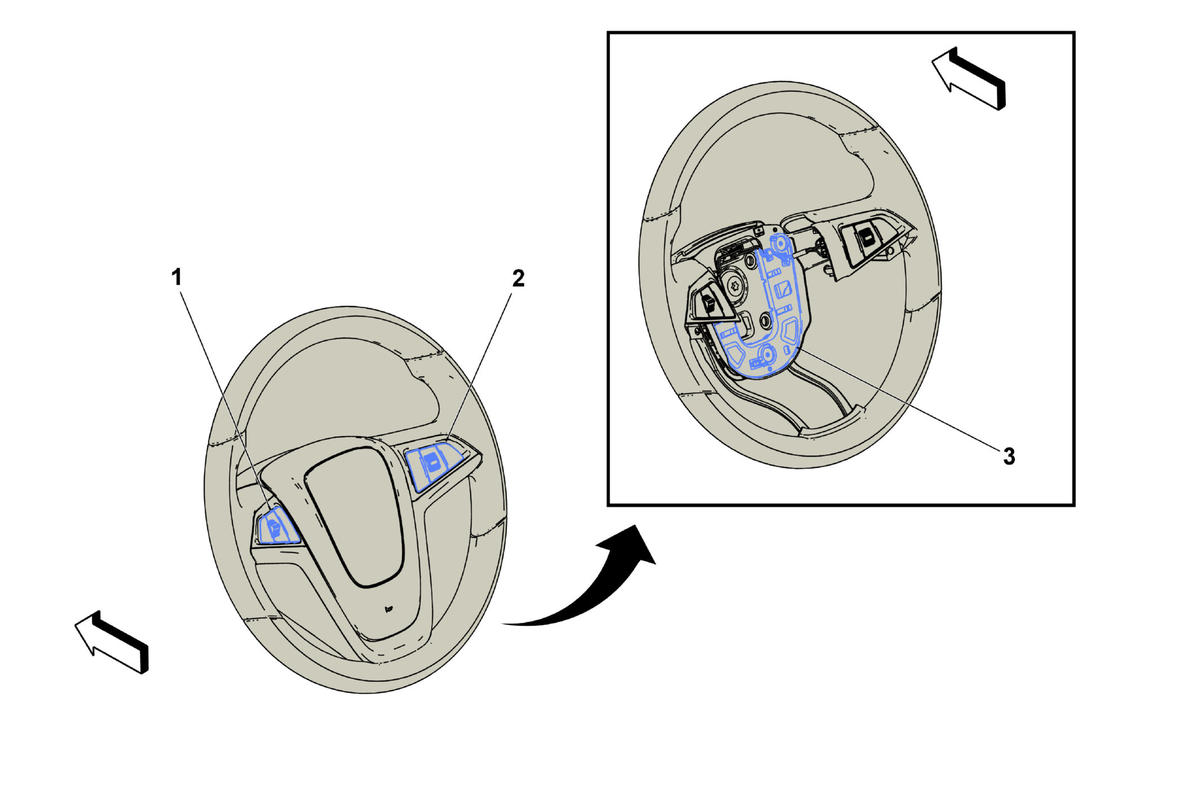

Fig 1: Steering Wheel Components (Trax)
GM2839971Courtesy of GENERAL MOTORS COMPANY
Items
1: S70L Steering Wheel Controls Switch - Left (K33/K34) S70L Steering Wheel Controls Switch - Left (Encore)
2: S70R Steering Wheel Controls Switch - Right (UC3/NZA)
3: S33 Horn Switch S33 Horn Switch X1 (Trax)S33 Horn Switch X2 (Trax)
