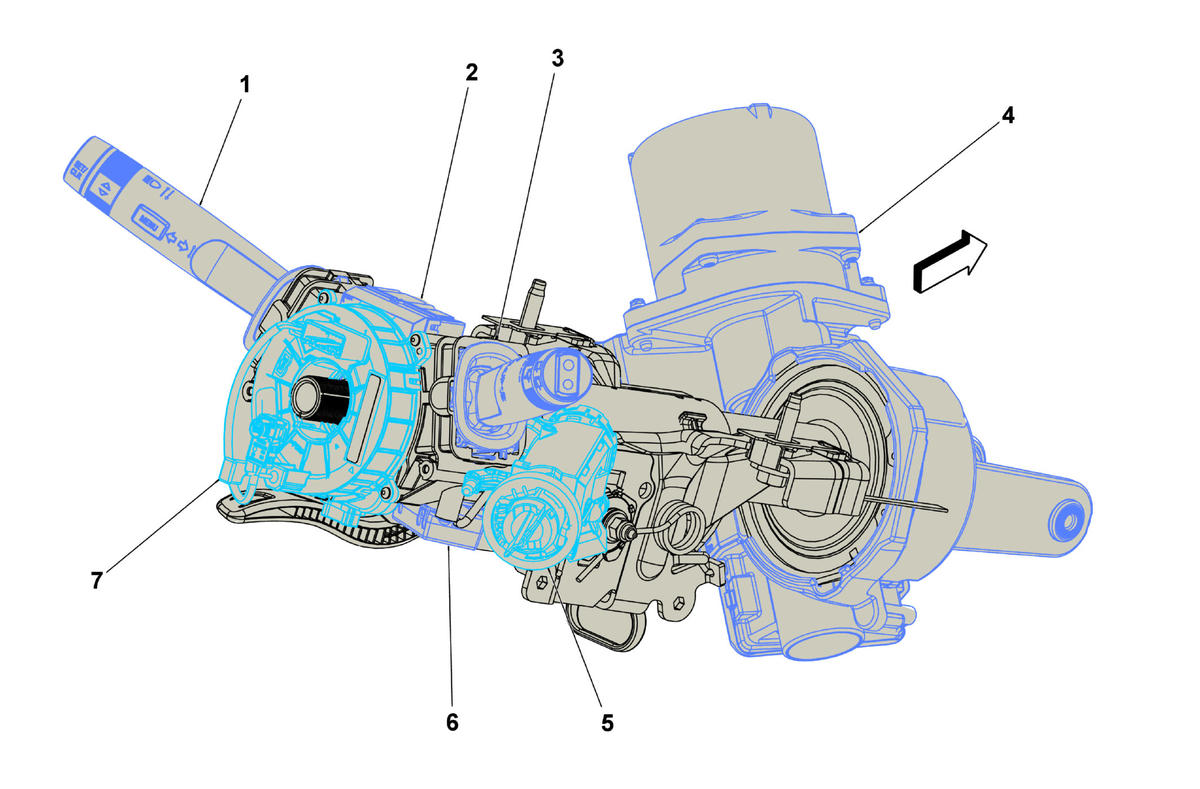

Steering Column Components (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 2: X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 (Trax)X85 Steering Wheel Air Bag Coil X2 (Trax)X85 Steering Wheel Air Bag Coil X3 (Trax) |
| 3: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 4: K43 Power Steering Control Module (NJ1) K43 Power Steering Control Module X1K43 Power Steering Control Module X2 |
| 5: S39 Ignition Switch S39 Ignition Switch |
| 6: K89 Immobilizer Control Module K89 Immobilizer Control Module |
| 7: B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor |
