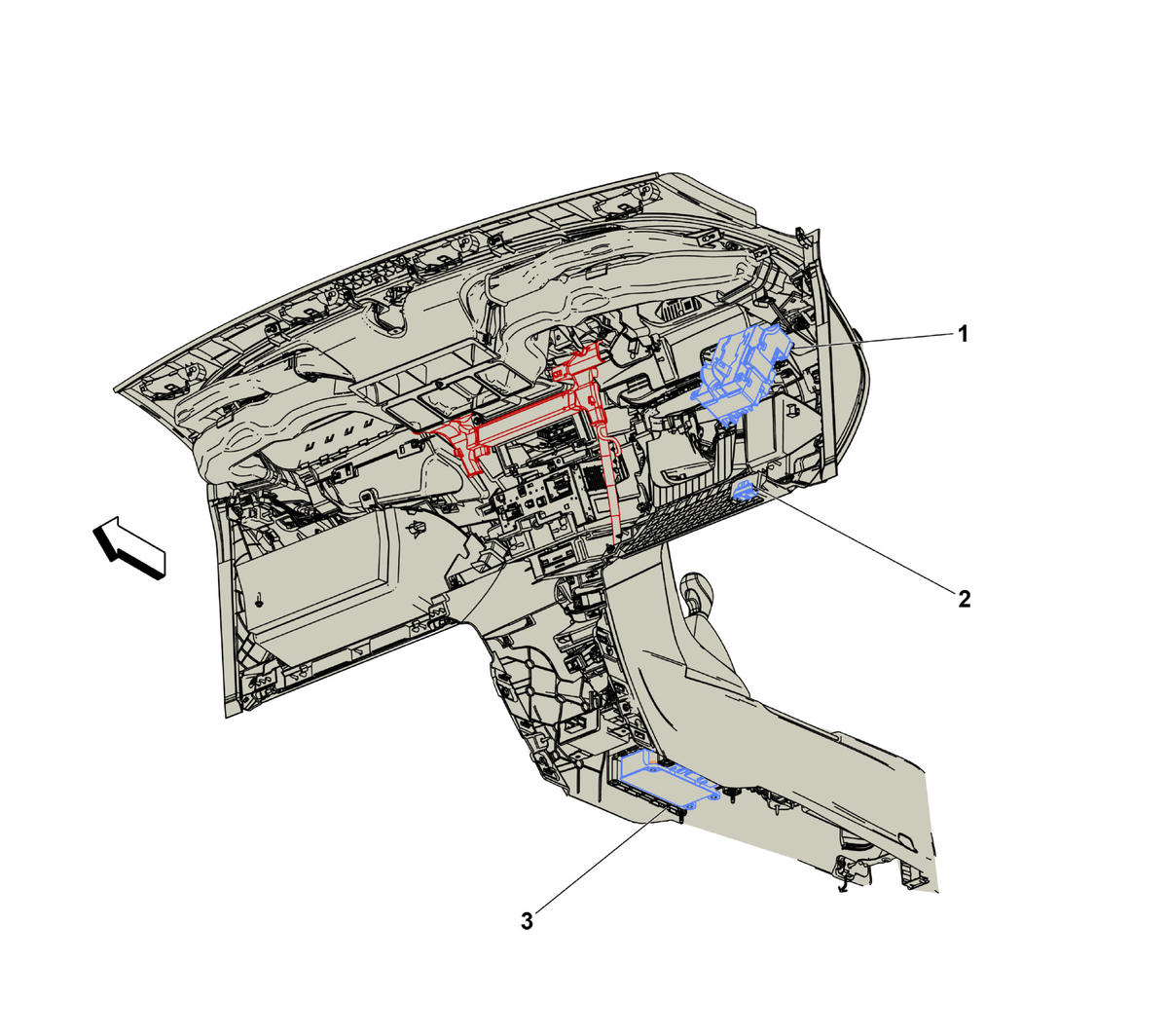

Rear of Instrument Panel Components (Trax, 1 of 2)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1X51A Fuse Block - Instrument Panel Wire Entry Wire Entry |
| 2: X84 Data Link Connector X84 Data Link Connector |
| 3: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X2 (ADL-A69)K36 Inflatable Restraint Sensing and Diagnostic Module X2K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AYC-UH5)K36 Inflatable Restraint Sensing and Diagnostic Module X1 (AY0)K36 Inflatable Restraint Sensing and Diagnostic Module X1 ((ADL/AYC)-C99)K36 Inflatable Restraint Sensing and Diagnostic Module X1 (AYF) |
