HVAC Components (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

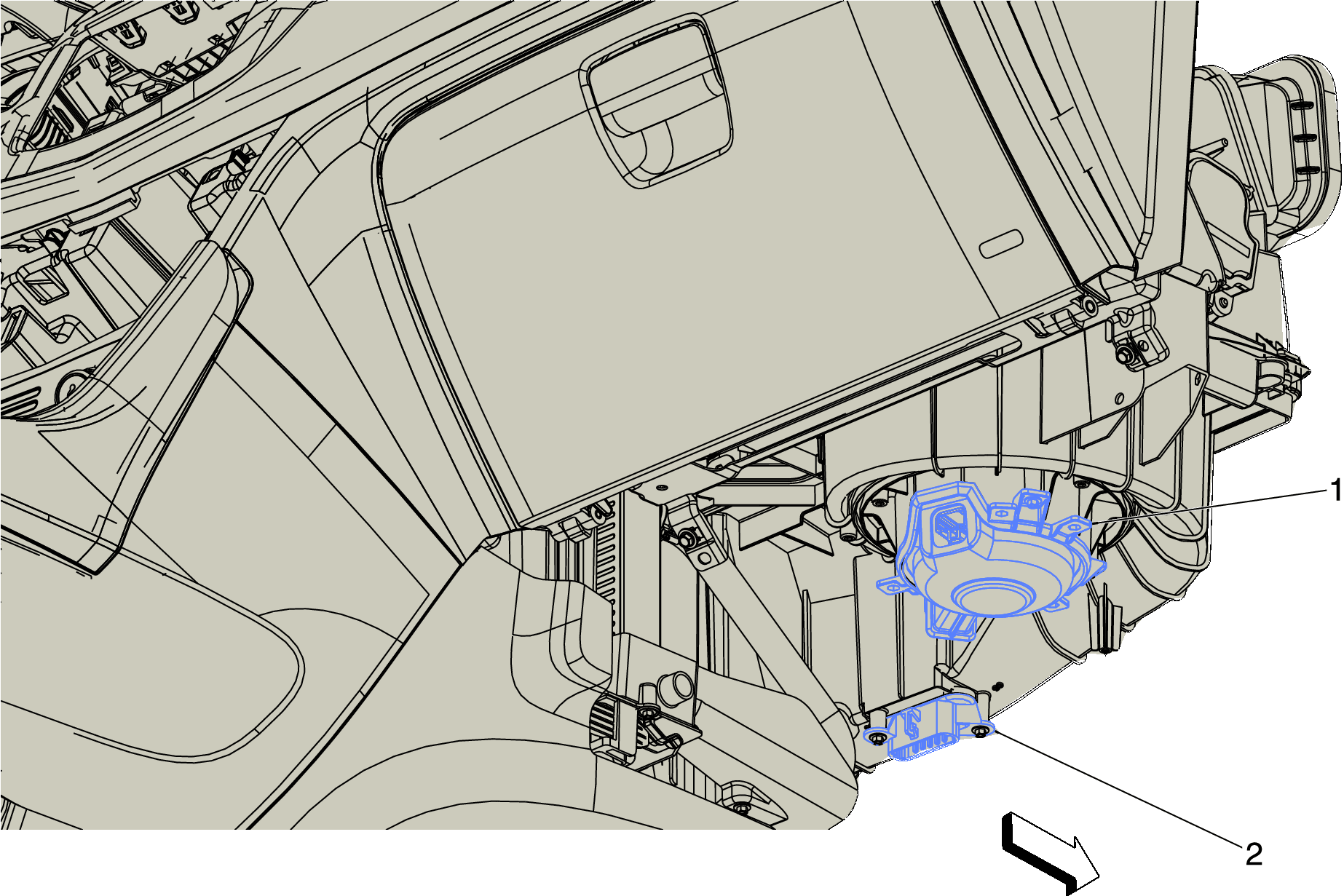

Fig 1: HVAC Components (Trax)
GM3926990Courtesy of GENERAL MOTORS COMPANY
Items
1: M8 Blower Motor M8 Blower Motor (C41/C60)
2: R3 Blower Motor Resistor R3 Blower Motor Resistor X1
