G201, G203, G303, and G305 (Trax)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

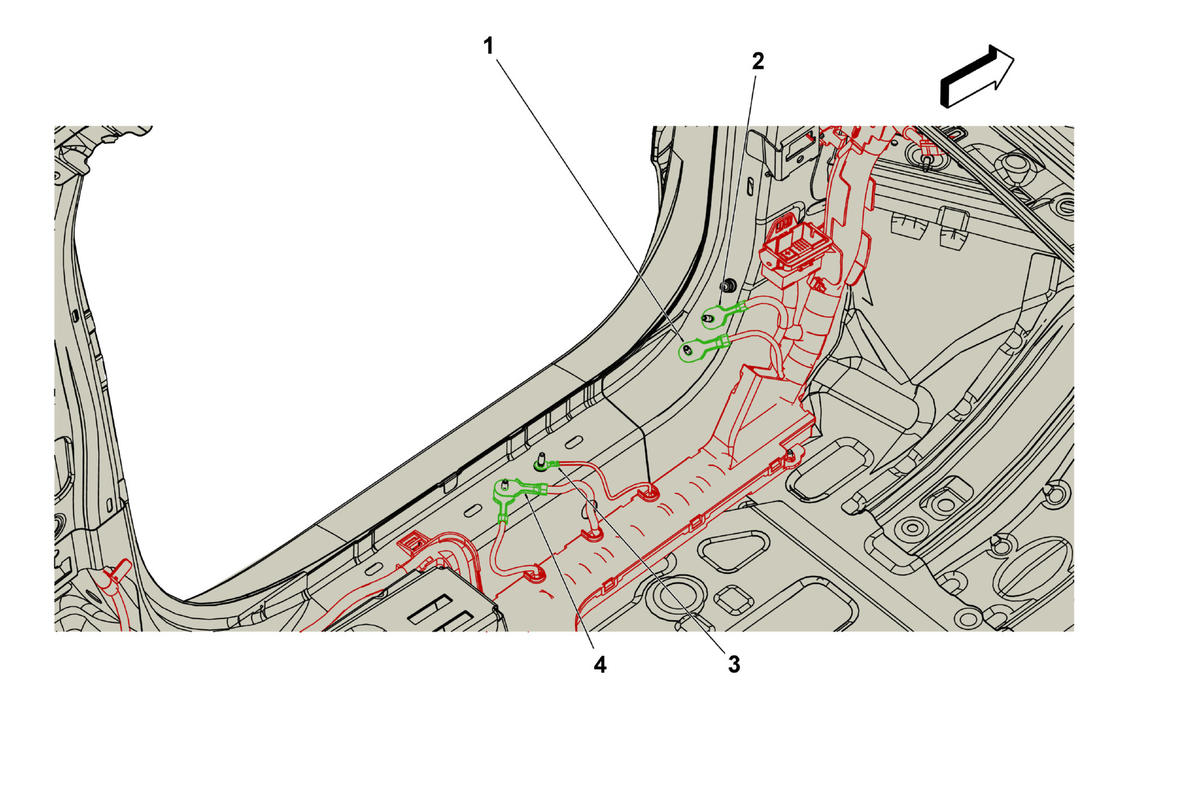

Fig 1: G201, G203, G303, and G305 (Trax)
Courtesy of GENERAL MOTORS COMPANY
Items
1:G203
2:G201
3:G305 (NJ1)
4:G303
